TECHNICAL SPECIFICATION
Ref: 1200-2400-BALL-MILL

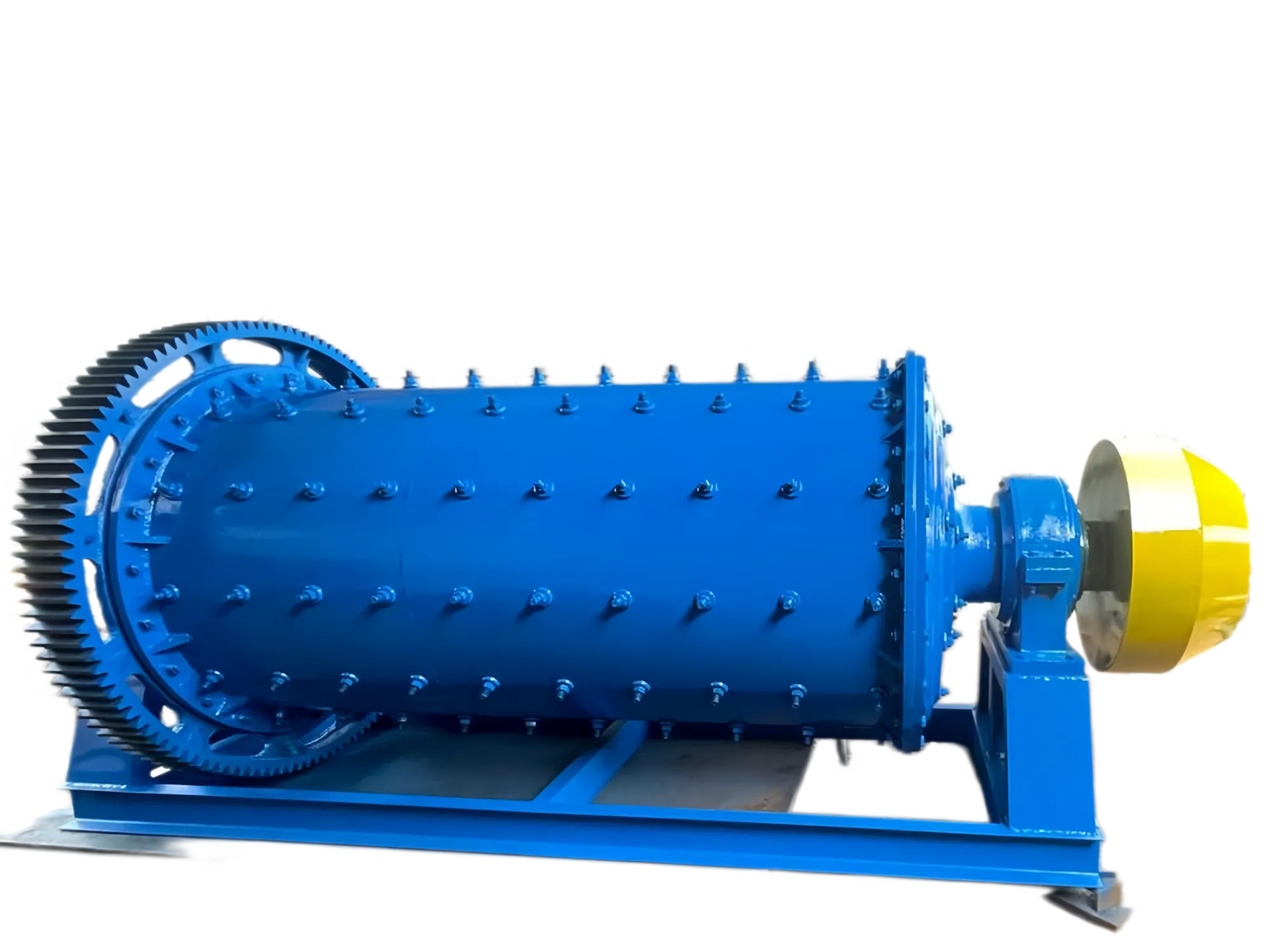

Φ1200*2400 Ball mill
The 1200×2400 ball mill is a medium-sized wet and dry grinding equipment, widely used in gold ore, copper ore, iron ore, limestone, quartz and other mineral processing fields. It features thickened cylinder, high wear-resistant liner and durable steel balls, with stable running, low failure rate and
The 1200×2400 ball mill is a medium-sized industrial grinding machine, designed for both wet and dry grinding processes. It is widely used in mining, metallurgy, chemical industry, building materials, quartz sand and mineral processing plants for grinding gold ore, copper ore, iron ore, manganese ore, limestone, feldspar and other raw materials.
This ball mill adopts integral thickened cylinder body, high wear-resistant lining plates and high-quality alloy steel balls. The transmission structure is stable, with smooth operation, low vibration, low energy consumption and long service life. It features reasonable structure, large handling capacity, uniform discharging fineness and easy operation.
Simple installation and convenient daily maintenance greatly reduce operating costs. It can work independently or cooperate with vibrating feeder, vibrating screen, classifier and flotation equipment to form a complete mineral processing production line. Customized voltage, liner material and discharge granularity are available to meet different customer production demands.
表格
Item | Specification |
|---|---|
Cylinder Diameter | 1200mm |
Cylinder Length | 2400mm |
Cylinder Volume | 2.71m³ |
Ball Loading Capacity | 0.68t |
Feeding Size | ≤30mm |
Discharging Size | 0.074–0.5mm |
Production Capacity | 1.2–3.5t/h |
Matched Motor Power | 37kw |
Overall Dimension | 4200×2000×2400mm |
Machine Weight | 6.5t |
