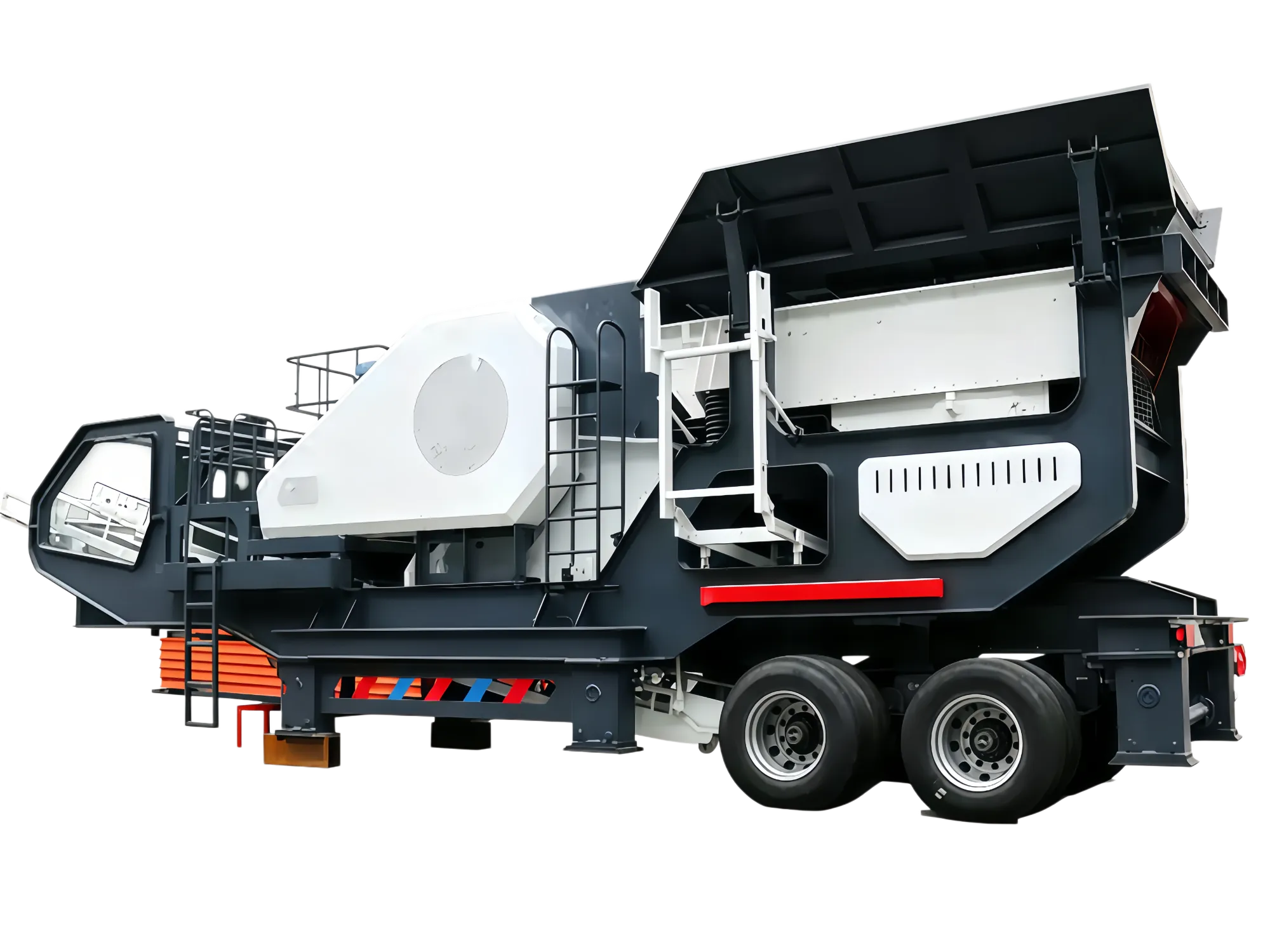

1214 Mobile Impact Crusher Plant

1. Product Brief Introduction (For Homepage & Category Page)

The tire type 1214 impact crusher is an integrated mobile crushing equipment adopting PF1214 impact crusher as the core host. It is equipped with a tire walking chassis, intelligent control system and dual power supply system, completely eliminating the complicated foundation construction, installation and relocation work of traditional fixed crushing equipment. This machine is suitable for crushing medium and soft stones such as limestone, bluestone, river stone, slag and construction waste, widely applied in mine exploitation, aggregate processing, road infrastructure and construction waste recycling industries.

Featuring a vehicle-mounted tire design, the equipment moves flexibly and adapts to complex construction site road conditions. It supports switching between electric and diesel power to ensure normal operation even in areas without power supply. Combining crushing and shaping functions, it delivers uniform and high-quality finished aggregates with stable output capacity, serving as the optimal choice for small and medium-sized mobile stone crushing projects.

2. Detailed Product Content (Full Version for Product Detail Page)

2.1 Equipment Overview

The tire type 1214 impact crusher is a medium and small-sized mobile crushing plant with an integrated modular structure. It highly integrates the feeder, 1214 impact crusher, screening device, conveyor, tire walking chassis, power system and electric control system. No foundation construction is required, and the equipment can be put into operation immediately after on-site commissioning. Adopting a standard Φ1250×1400mm rotor, the 1214 impact crusher features large crushing ratio and excellent stone shaping effect. It effectively solves the pain points of fixed crushing equipment such as site limitations, difficult relocation and long construction cycle, perfectly meeting the demands of frequent site replacement and temporary mobile crushing operations.

Highlighting flexible movement, energy saving, high-quality finished products and multi-purpose application, the machine supports coarse, medium and fine crushing with adjustable discharge particle size to meet various aggregate and engineering material standards. It is the core equipment for infrastructure construction, construction waste recycling and scattered mine mining projects.

2.2 Core Technical Parameters

2.3 Core Advantages

(1) Flexible Movement, Zero Foundation Installation

Equipped with a heavy-duty tire chassis with strong bearing capacity and stable driving performance, the equipment can transfer freely with the construction progress without site restrictions. No concrete foundation or fixed installation is needed. It can be put into production after simple on-site debugging, greatly shortening the construction cycle and reducing infrastructure costs, which is ideal for temporary and multi-site short-distance operation projects.

(2) Dual Power Drive, Strong Environmental Adaptability

Adopting a dual power system of diesel generator and commercial electricity. It can run on electric power in electrified sites to save operating costs, and switch to diesel power for continuous operation in wild areas without power supply, solving the power supply problem of field construction and expanding application scenarios greatly.

(3) Integrated Crushing & Shaping, Premium Finished Aggregates

The 1214 impact crusher adopts a three-chamber crushing structure. Materials undergo multiple impacts, extrusion and shaping before discharge. The finished aggregates are cubic-shaped with full edges, no flaky particles and reasonable gradation, fully meeting the high-standard aggregate requirements for highways, water conservancy and construction projects. Crushing and shaping are completed in one process without secondary processing.

(4) Stable Performance, Wear Resistance & Durability

Key wearing parts are made of high-chromium alloy wear-resistant materials with strong impact resistance and long service life. The machine is equipped with an intelligent overload protection system, which automatically shuts down to avoid damage when encountering uncrushable hard materials, reducing failure rate and maintenance costs for stable and reliable operation.

(5) Intelligent Operation, Labor & Time Saving

Configured with a centralized electric control system, it supports one-key start-stop and intelligent adjustment of feeding and discharge size. The operation is simple and easy to learn, and single person can complete the operation. The highly integrated and compact structure simplifies daily maintenance, effectively reducing labor and operation costs.

2.4 Main Application Scenarios

Construction Waste Recycling: Crush and recycle demolished concrete, bricks and gravel into reusable recycled aggregates to realize waste recycling and environmental protection production.

Mine Aggregate Processing: Crush medium-soft ores such as limestone, bluestone and dolomite to produce high-quality construction and engineering aggregates.

Infrastructure Construction: On-site stone crushing for highway, railway, water conservancy and municipal projects, realizing on-site material processing and greatly reducing transportation costs.

Industrial Solid Waste Treatment: Process industrial wastes such as slag and stone chips to realize solid waste recovery and secondary utilization.

2.5 Overall Equipment Features

The machine has a compact and reasonable overall structure, convenient trailer transportation and flexible transfer. It features high and stable crushing efficiency, low energy consumption and high economic benefits. The adjustable discharge size meets diverse production standards. The anti-blocking and impact-resistant design eliminates material blockage failures. The fully enclosed operation with reserved dust removal interface supports matching dust removal equipment to meet international environmental protection standards for construction sites.
