TECHNICAL SPECIFICATION
Ref: 1500-4500-BALL-MILL

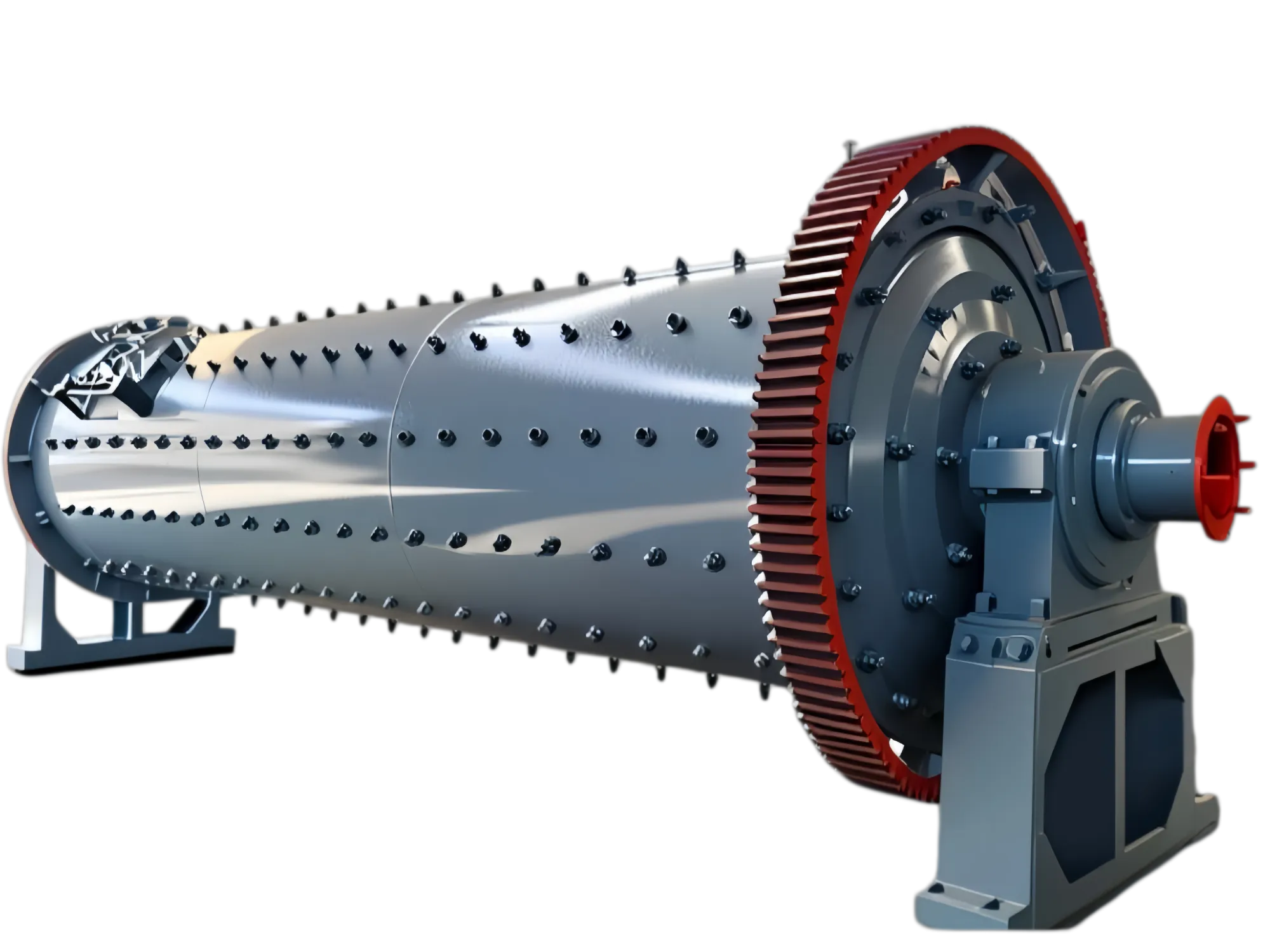

Φ1500*4500 Ball mill
The 1500×4500 wet ball mill is a medium horizontal grinding equipment for mineral processing. It is widely applied to grind gold, copper, iron ore, quartz, and feldspar. Fitted with high manganese steel liners and optimized transmission structure, this mining ball mill ensures stable operation, low
The 1500×4500 ball mill is a medium-sized wet grinding mining machine independently developed and manufactured for mineral processing plants. This grinding equipment is widely used in gold ore, copper ore, iron ore, quartz sand, feldspar and other mineral grinding industries. Adopting horizontal cylindrical rotary structure, the machine realizes continuous grinding through steel balls impact and abrasion inside the barrel. With reasonable structure, large handling capacity, low energy consumption and easy operation, this ball mill is the most cost-effective grinding equipment for small and medium mining concentrators. As a direct factory, we provide customized liner, discharge size, voltage and complete after-sales service for global mining investors.
The motor drives the gear and reducer to rotate the cylinder slowly. When the cylinder rotates, the grinding media (steel balls) are lifted to a certain height under the action of friction and centrifugal force. Then the steel balls fall down freely to generate strong impact, extrusion and grinding force on the raw ore materials. The raw materials are continuously crushed and ground into fine powder or slurry. The wet grinding method is adopted with water mixing, which effectively reduces dust pollution and improves grinding fineness. Finally, qualified fine materials are discharged from the discharge port to complete the continuous grinding process.
Large Processing Capacity: The barrel volume is reasonably optimized, the hourly output is stable, suitable for medium-scale mineral processing production line, greatly improving mining efficiency.
Wear-resistant Protection: The inner wall is equipped with high manganese steel wear-resistant liners, which effectively reduce cylinder wear, extend service life and reduce later maintenance costs.
Energy Saving & Low Consumption: Optimized transmission structure and high-efficiency motor reduce power consumption by 10%-15% compared with traditional ball mills.
Stable Operation: Adopt heavy-duty bearing and sealed transmission structure, low vibration, low noise, stable continuous operation without frequent failure.
Easy Maintenance: Simple internal structure, detachable manhole design, convenient for daily inspection, steel ball supplement and liner replacement.
Wide Application: Suitable for metal ore and non-metal ore grinding, compatible with gold, copper, iron, quartz, feldspar, limestone and other minerals.
Factory Direct Supply: No middleman markup, customized service, reasonable price and complete export certification.
Item | Technical Data |
|---|---|
Model | 1500×4500 |
Barrel Diameter | 1500mm |
Barrel Length | 4500mm |
Effective Volume | 6.2m³ |
Processing Capacity | 1.8-7.5t/h |
Rotating Speed | 28r/min |
Max Steel Ball Loading | 9.5t |
Motor Power | 110kw |
Discharge Fineness | 0.074-0.4mm |
Weight | 23.5t |
Overall Dimension | 6200×2800×2550mm |
Gold ore, copper ore, iron ore, manganese ore, lead-zinc ore, tin ore, silver ore and other ferrous and non-ferrous metal ore beneficiation, primary fine grinding and secondary grinding work in concentrator.
Quartz sand, feldspar, kaolin, limestone, barite, talc, marble and other non-metallic minerals raw material grinding for building materials, chemical industry and ceramic industry.
Mine tailings recovery, slag processing, cement raw material grinding, mineral powder production and other industrial raw material grinding projects.
This 1500*4500 ball mill is composed of feeding device, rotating bearing, transmission device, cylinder body, lining plate, driving motor and lubrication system. The feeding port adopts anti-blocking design to ensure smooth feeding. The cylinder is made of thick steel plate with strong compression resistance. The large gear and pinion transmission ensures stable power output. The independent lubrication system reduces gear wear and prolongs equipment service life. All wearing parts support spare parts replacement and customized processing.
The equipment shall be installed on a solid concrete foundation to avoid vibration displacement during operation.
Check the tightness of bolts and gear lubrication condition before starting the machine every time.
Add steel balls regularly according to mineral hardness to ensure grinding fineness.
Replace worn liners within 6-12 months to protect the cylinder.
Carry out shutdown maintenance every three months to clean internal residues.
