TECHNICAL SPECIFICATION
Ref: 2-45-MOBILE-BRICK-MAKING-MACHINE

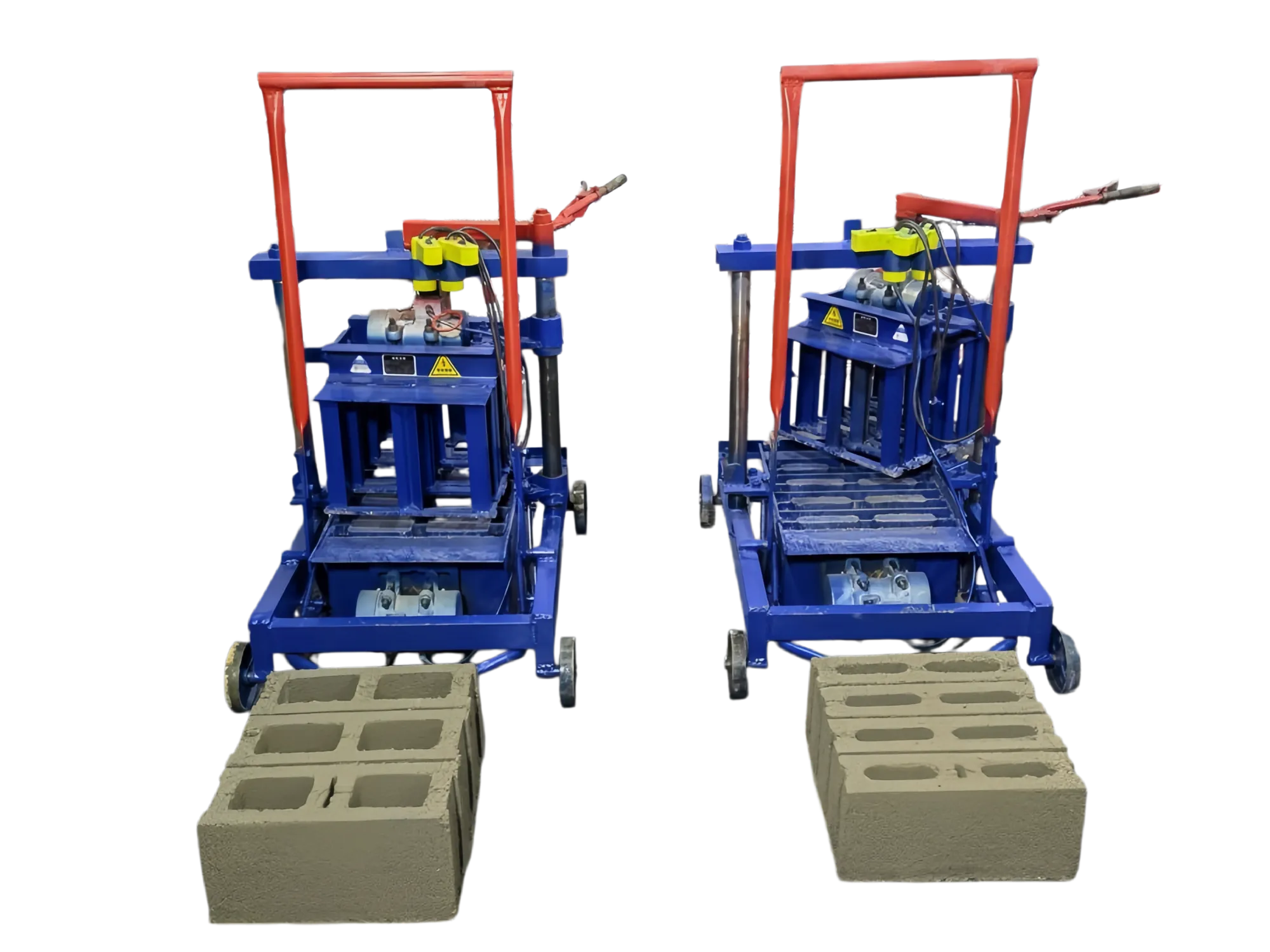

2-45 Mobile Brick Making Machine
The 2-45 mobile concrete block making machine is a compact, portable brick production equipment designed for small-scale construction and home use. It features a lightweight mobile chassis and manual operation, producing standard hollow blocks and solid bricks with a simple mould change. No complica
The 2-45 mobile concrete block making machine is a small portable brick making equipment, specially designed for users who need flexible, low-cost brick production. Different from large semi-automatic brick machines, this model adopts a manual operation and mobile design, which can be moved to different construction sites for on-site brick making, greatly saving the transportation cost of raw materials and finished bricks.
It can produce various types of bricks by changing moulds, including hollow blocks, solid bricks, pavers and other common building bricks. With low power consumption, easy operation and low failure rate, it is the best-selling portable brick making machine for small contractors, individual users and rural construction projects.
Item | Specification |
|---|---|
Model | 2-45 Mobile Concrete Block Making Machine |
Brick Types | Hollow block, solid brick, paver |
Forming Cycle | 40–60 seconds per mold |
Single Mold Output (Hollow Block) | 4 pcs/mold |
Power | 2.2 KW × 2 (total 4.4 KW) |
Voltage | 220V/380V (customizable) |
Chassis Type | Wheeled mobile design |
Overall Weight | 350 KG |
Overall Size | 1200 × 800 × 1600 mm |
Product Type | Specification Size (mm) | Quantity Per Mold | Output Per Hour |
|---|---|---|---|
Hollow Block | 400×200×200 | 4 pcs/mold | 240–360 pcs/hour |
Solid Brick | 240×115×53 | 12 pcs/mold | 720–1080 pcs/hour |
Paver Brick | 200×100×60 | 8 pcs/mold | 480–720 pcs/hour |
With interchangeable moulds, the 2-45 block making machine can produce a variety of common building bricks to meet different construction needs:
Common sizes: 400×200×200mm, 400×150×200mm, suitable for wall construction, lightweight and heat-insulating.
Standard size: 240×115×53mm, same as traditional red bricks, widely used in wall and foundation construction.
Common sizes: 200×100×60mm, used for walkways, driveways and garden paving.
🚜 Mobile Wheeled Design: Equipped with four wheels, easy to move between construction sites, no foundation installation required.
✋ Simple Manual Operation: Easy to learn and operate, no need for professional technicians, one person can complete the whole process.
🔄 Multi-Mould Compatibility: Change moulds quickly to produce hollow blocks, solid bricks and pavers for different needs.
⚡ Low Power Consumption: 4.4 KW total power, can work with single-phase or three-phase power, suitable for small construction sites.
💪 Durable & Wear-Resistant: High-quality steel frame and wear-resistant mould, long service life, low maintenance cost.
💰 Cost-Effective Investment: Low price, fast return, ideal for small contractors and individual users.
🌱 Wide Application: Suitable for rural road construction, small building projects, construction waste recycling brick making.
The 2-45 mobile concrete block making machine is widely used in:
Rural house construction and renovation
Small-scale construction projects
On-site brick making at construction sites
Farmland infrastructure and road projects
Construction waste recycling brick production
