TECHNICAL SPECIFICATION
Ref: 2YK-1860-VIBRATING-SCREEN
2YK-1860

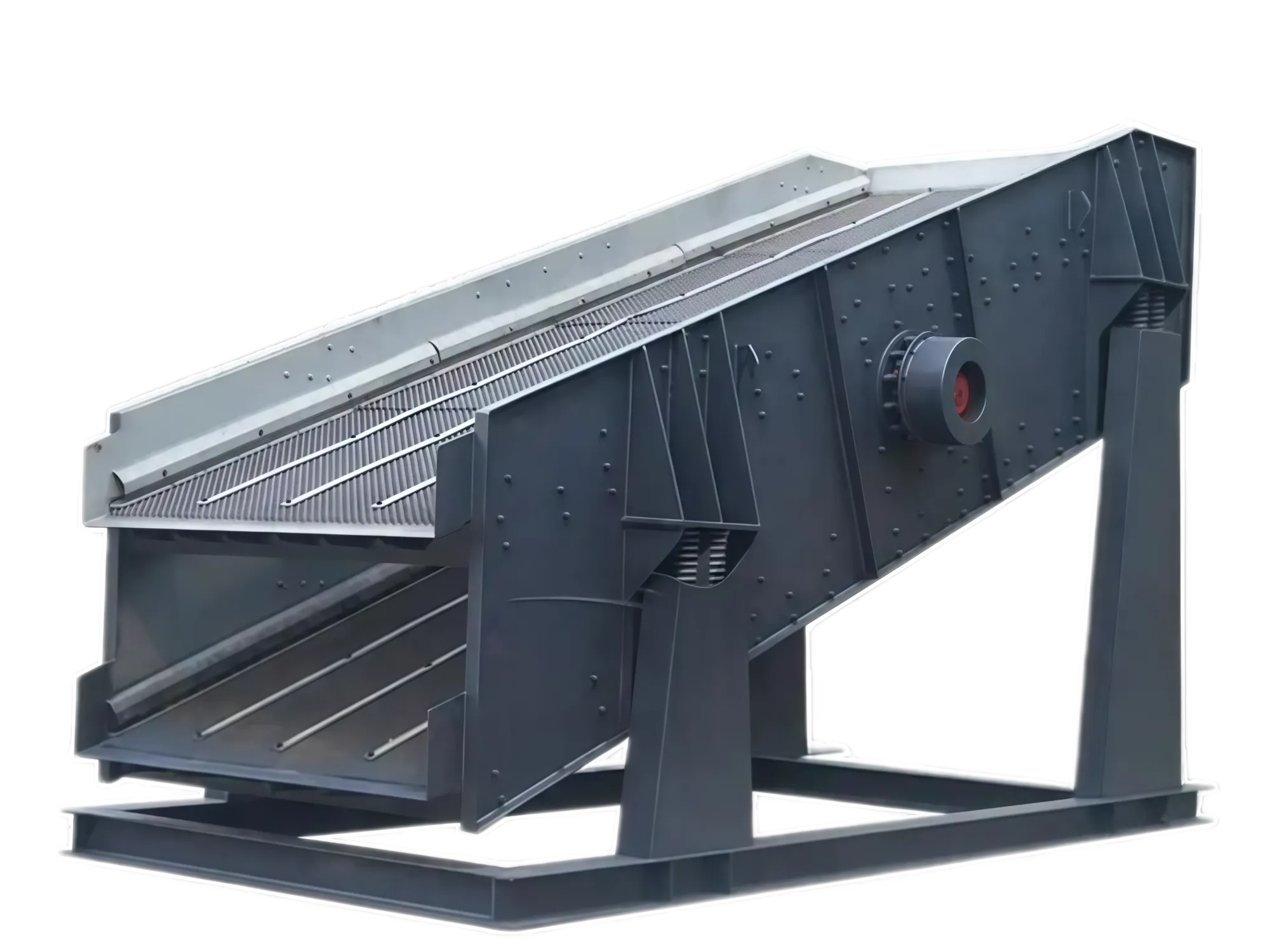

The 1860 double deck circular vibrating screen (Model 2YK1860) is a heavy-duty screening equipment. The screen size is 1800×6000mm. It adopts double-layer screen design, featuring large processing capacity and high screening efficiency. It is widely used in mining, sand and stone, construction mater
The 2YK1860 vibrating screen is a heavy-duty circular vibrating screen designed for mineral processing and aggregate production lines. With a screen size of 1800×4500 mm and double screening decks, this machine offers large handling capacity, high screening accuracy and stable operation. It is widely used in mines, quarries, sand plants, construction materials and other industries for particle classification.
Technical Item | Parameter Data |
|---|---|
Screen Size (Width×Length) | 1800×6000 mm |
Screen Layers | 2 layers (customizable) |
Processing Capacity | 60–450 t/h |
Motor Power | 18.5–22 kW |
Max Feeding Size | ≤400 mm |
Screen Mesh Aperture | 2–70 mm (customized) |
Screening Efficiency | ≥90% |
Vibration Motion Type | Circular motion |
This vibrating screen consists of a reinforced screen box, heavy-duty eccentric block vibrator, durable screen mesh, rubber vibration isolation springs, driving motor and base frame. The whole body adopts thickened steel plate and riveted welding structure, which is impact-resistant and not easy to deform under heavy working conditions.
The motor drives the eccentric vibrator to rotate at high speed and generates strong centrifugal force. The screen box continuously makes regular circular vibration. Raw materials are evenly fed to the top screen deck. Large-sized stones are discharged from the upper outlet, medium and fine materials fall to the lower deck for secondary classification. Finally, three different particle sizes are separated at one time.
High Efficiency: Double-layer design realizes multi-grade separation and improves production capacity greatly.
Strong Durability: Thickened body and wear-resistant screen plate extend service life.
Stable Performance: Rubber shock absorption springs reduce noise and vibration.
Easy Maintenance: Simple structure, convenient screen replacement and lubrication.
Wide Adaptability: Suitable for dry and wet screening for granite, limestone, river pebble, mine ore and coal.
It is commonly matched with jaw crusher, cone crusher, sand making machine and belt conveyor to form a complete crushing and screening production line. Widely applied in quarrying, mining, aggregate plant, building materials, chemical industry and coal industry.
We support customized mesh size, layer quantity and technical configuration. Complete production line solution and after-sales installation guidance are available for global customers.
