TECHNICAL SPECIFICATION
Ref: 300-500-JAW-CRUSHER

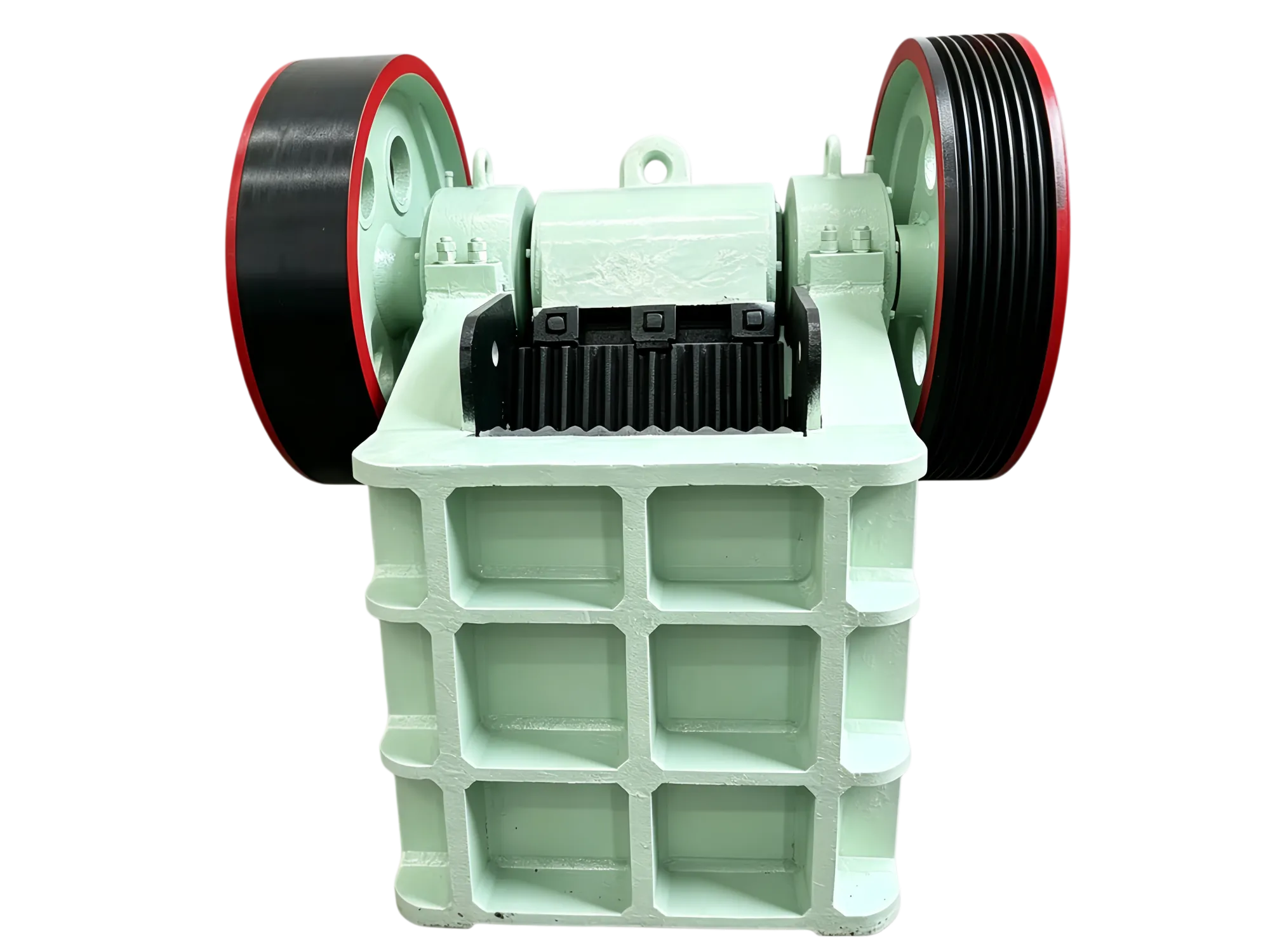

PE300*500
The crusher features high-strength cast steel机架 (frame) and wear-resistant manganese steel jaw plates, ensuring long service life even in harsh working environments. Equipped with a reliable motor and advanced eccentric shaft, it operates stably with low noise and minimal vibration, providing a safe
The 300*500 Jaw Crusher is a professional primary crushing equipment specially developed for small and medium-sized crushing projects. With its compact structure, reliable performance and high crushing efficiency, it has become the first choice for customers in mining, construction, road and bridge construction, chemical industry and other fields. This crusher takes the lead in the industry with its scientific design and humanized operation, perfectly solving the pain points of low efficiency, high energy consumption and difficult maintenance of traditional crushing equipment.
Our 300*500 Jaw Crusher adopts strict manufacturing standards, and every parameter is designed to meet the actual production needs of customers, ensuring stable operation and excellent crushing effect.
Feed Opening: 300mm × 500mm
Maximum Feed Size: 250mm
Discharge Size: 20-60mm (adjustable)
Production Capacity: 5-20 t/h
Compressive Strength of Crushed Materials: ≤320MPa
Motor Power: 15kW
Overall Dimensions (L×W×H): 1500×1200×1300mm
Net Weight: About 2.8t
Optimized V-shaped crushing cavity design increases the contact area between materials and jaw plates, improves crushing efficiency by 15%-20% compared with traditional jaw crushers, and reduces energy consumption by 10% at the same time. The reasonable eccentric shaft speed ensures that materials are crushed fully and uniformly, avoiding repeated crushing and saving energy.
The frame is made of high-strength cast steel, which has strong impact resistance and load-bearing capacity, and can withstand the harsh working environment of long-term heavy load. The jaw plates are made of high-quality manganese steel, which has excellent wear resistance and corrosion resistance, and the service life is extended by 30% compared with ordinary jaw plates, reducing the cost of replacement parts.
Detachable frame design makes transportation and installation more convenient, and it can be quickly installed and put into use even in narrow construction sites. The integrated lubrication system ensures that all moving parts are fully lubricated, reducing wear and tear, and the maintenance cycle is extended. The quick-wear parts are easy to disassemble and replace, saving maintenance time and labor costs.
Equipped with high-quality motor and advanced eccentric shaft, the operation is stable, the noise is lower than 75dB, and the vibration is small, which provides a comfortable working environment for operators. The safety protection device is complete, which can effectively prevent the occurrence of safety accidents and ensure the personal safety of operators.
Our 300*500 Jaw Crusher is widely used in the crushing of various hard materials, and is suitable for multiple industries:
Mining Industry: Crushing of iron ore, coal, limestone, granite, basalt and other ores
Construction Industry: Crushing of construction waste, concrete blocks, bricks and stones for recycling
Road & Bridge Construction: Crushing of aggregates for highways, railways and bridge projects
Chemical Industry: Crushing of non-flammable and non-explosive chemical raw materials
Other Fields: Crushing of materials in metallurgy, building materials, refractory materials and other industries
We adhere to the principle of "quality first, customer first", and every 300*500 Jaw Crusher has to go through strict quality inspection before leaving the factory, including raw material inspection, process inspection and finished product inspection, to ensure that each product meets the quality standard. We provide a one-year quality guarantee period, and have a professional after-sales service team. No matter where you are, we can provide timely technical support, maintenance guidance and spare parts supply, solving your worries in use.
If you are looking for a high-efficiency, durable and cost-effective primary crushing equipment, our 300*500 Jaw Crusher is your best choice. Contact us now to get a customized solution and preferential quotation!
