TECHNICAL SPECIFICATION
Ref: 3YK-2160-VIBRATING-SCREEN

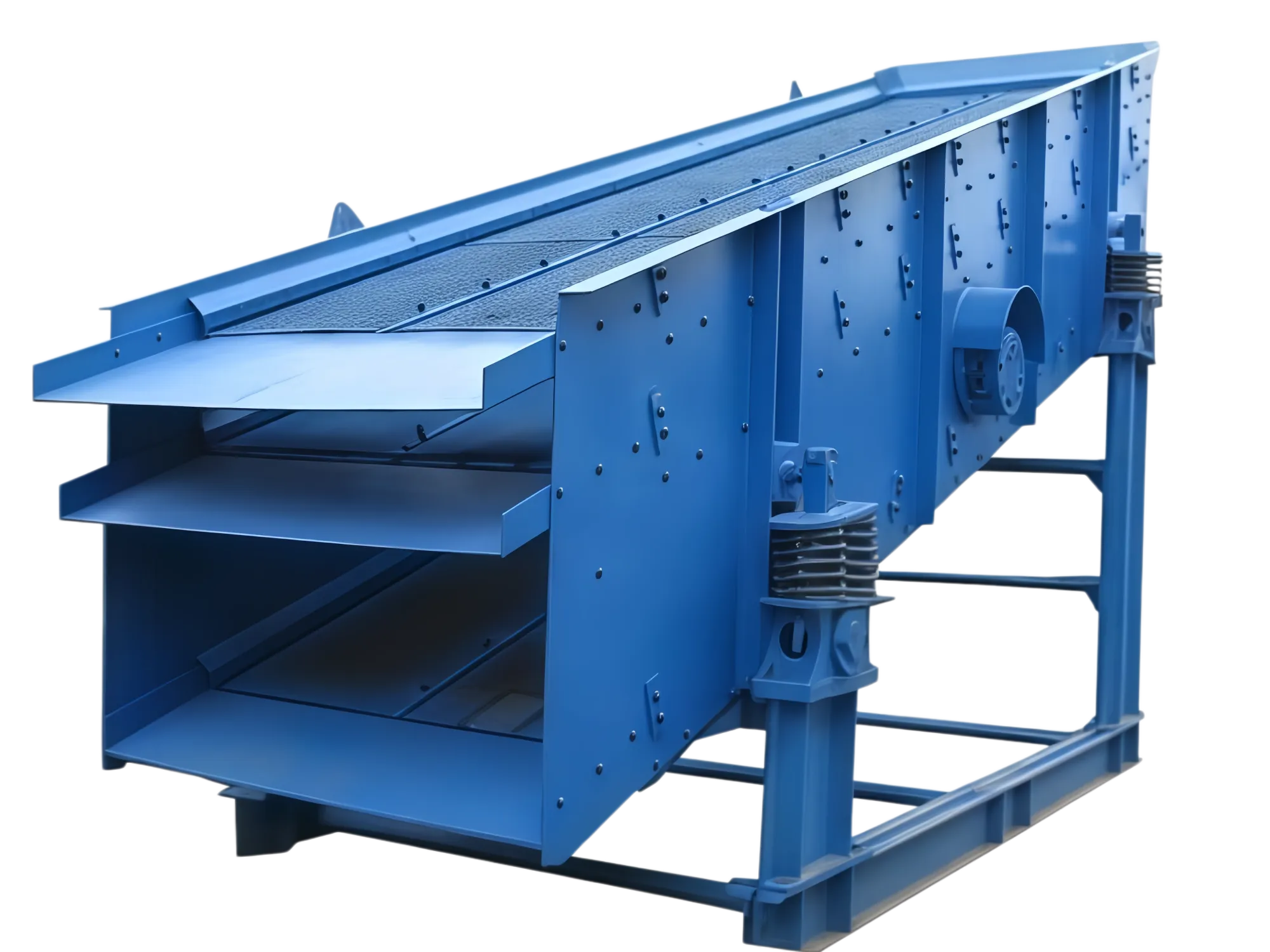

3YK-2160 Vibrating Screen
The 3YK2160 vibrating screen is a heavy-duty three-deck circular vibrating screen. It features a screen size of 2100×6000mm, large processing capacity and high screening precision. Designed for harsh mining and quarry conditions, this industrial screening machine can separate four different particle
Technical Item | Parameter Data |
|---|---|
Screen Size (Width×Length) | 2100×6000 mm |
Screen Layers | 3 layers |
Processing Capacity | 100–500 t/h |
Motor Power | 30 kW |
Max Feeding Size | ≤200 mm |
Screen Mesh Aperture | 2–50 mm (customized) |
Screening Efficiency | ≥92% |
Vibration Motion Type | Circular motion |
This vibrating screen adopts thickened steel plate body and riveted welding structure. It is composed of heavy-duty eccentric block vibrator, three layers of wear-resistant screen mesh, rubber vibration isolation springs, driving motor and fixed base. Reinforced side plates and seamless steel pipe beams ensure strong toughness and deformation resistance under long-term heavy load.
The motor drives the eccentric vibrator to rotate at high speed to generate powerful centrifugal excitation force. The screen box performs stable circular vibration. Raw materials evenly enter the top screen deck. With continuous vibration, materials are layered and screened. Four different particle sizes are discharged from independent outlets, realizing one-time feeding and multi-grade separation.
Three-deck Screening: Four-grade material separation, higher classification accuracy.
Large Handling Volume: Longer screen surface improves material spreading and screening output.
Heavy-duty Structure: Shock-resistant design for long service life in harsh mines.
Stable Operation: High-elastic rubber spring reduces noise and vibration.
Easy Maintenance: Modular screen mesh, convenient replacement and lubrication.
Suitable for granite, basalt, limestone, river pebble and mineral ore. Widely used in quarry crushing line, mining processing plant, coal industry, chemical industry and construction materials production. It can match jaw crusher, cone crusher and sand making machine to form a complete crushing system.
Custom mesh size, screen plate material and installation angle are available. We provide professional production line layout, installation guidance and global after-sales service for bulk order customers.
