TECHNICAL SPECIFICATION
Ref: 3YK-3080-VIBRATING-SCREEN

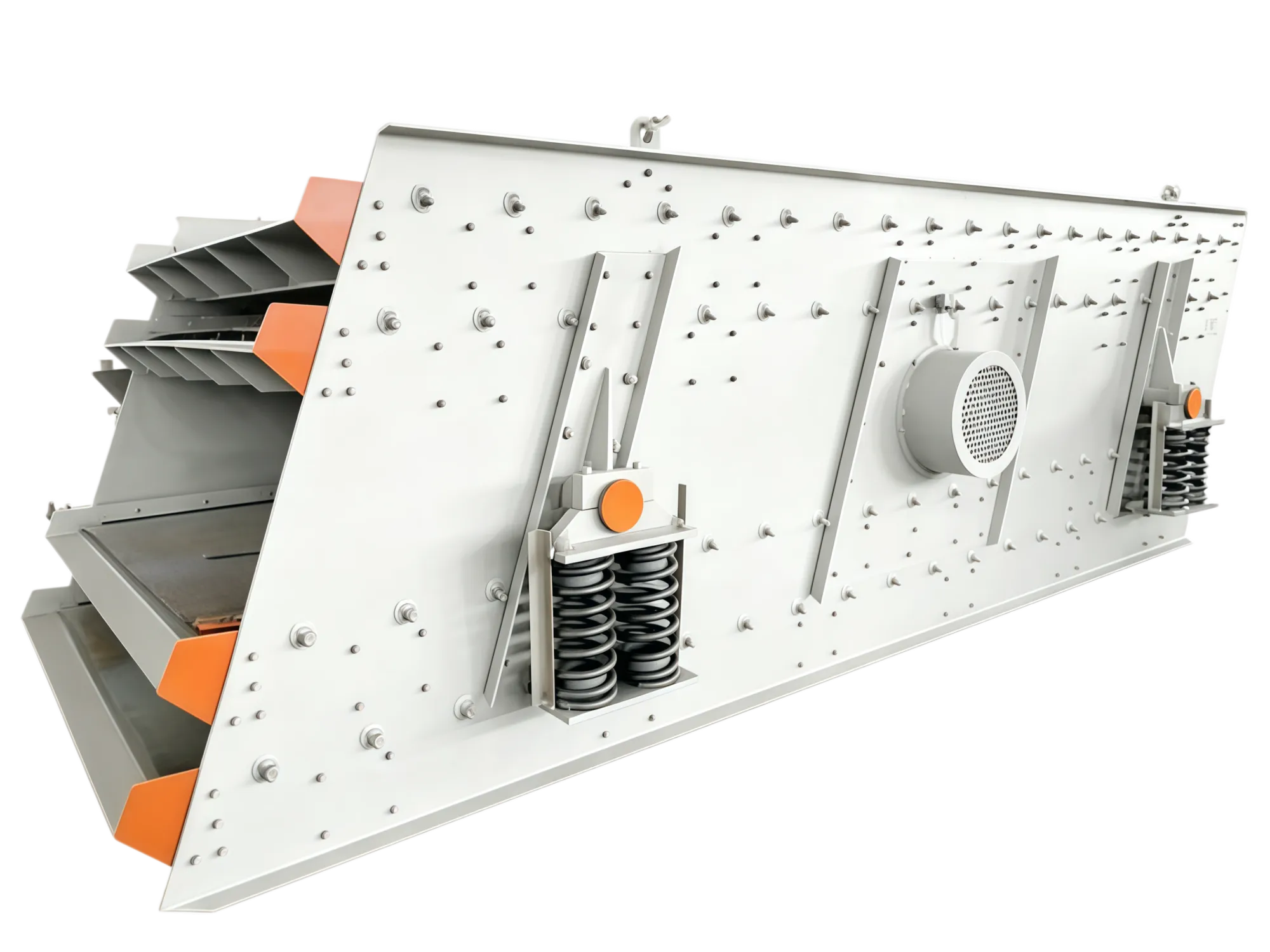

3YK-3080 Vibrating Screen
The 3YK3080 vibrating screen is a large heavy-duty circular vibrating screen designed for high-output mining and aggregate plants. Equipped with a super-large screen size of 3000×8000mm and three screening decks, this machine can separate four different particle sizes in one single feeding process.
The 3YK3080 vibrating screen is a large heavy-duty circular vibrating screen designed for high-output mining and aggregate plants. Equipped with a super-large screen size of 3000×8000mm and three screening decks, this machine can separate four different particle sizes in one single feeding process. It features strong carrying capacity, stable vibration and high screening efficiency, perfectly suitable for continuous heavy-duty operation in large crushing production lines.
Technical Item | Parameter Data |
|---|---|
Screen Size (Width×Length) | 3000×8000 mm |
Screen Layers | 3 layers |
Processing Capacity | 200–800 t/h |
Motor Power | 37kW × 2 |
Max Feeding Size | ≤500 mm |
Screen Mesh Aperture | 3–80 mm (Customized) |
Screening Efficiency | ≥92% |
Vibration Type | Circular Motion |
This industrial vibrating screen adopts thickened steel plate and riveted welding structure. It consists of dual eccentric block vibrators, three layers of high-strength wear-resistant screen meshes, reinforced side plates, thickened cross beams, rubber vibration isolation springs and dual driving motors. The overall structure is sturdy, deformation-resistant and durable for long-term harsh working conditions.
Dual motors drive the eccentric vibrators to rotate synchronously, generating powerful centrifugal excitation force. The screen box performs stable circular vibration at a constant frequency. Raw materials evenly fall on the top screen deck. During continuous vibration, materials are layered and screened step by step. Four different particle sizes are discharged from independent outlets to realize one-time multi-grade separation.
Super Large Screening Area: 3×8m screen surface greatly improves material spreading volume and hourly output.
Three-deck Classification: Four different particle sizes separated at one time to save equipment investment.
Dual-motor Driving: Synchronous vibration provides stronger excitation force for heavy materials.
Heavy-duty Reinforced Body: Thickened side plates and anti-shock structure extend service life.
Stable & Low Noise: High-elastic rubber springs reduce vibration and working noise.
Easy Maintenance: Modular screen plate design for quick replacement and daily lubrication.
It is widely used in large-scale quarries, mining plants, aggregate production lines, coal industry and building materials factories. Suitable for screening granite, basalt, limestone, river pebbles and various mineral ores. It can be matched with jaw crushers, cone crushers and sand making machines to form a complete heavy-duty crushing line.
Customized mesh size, screen plate material and discharge method are available. We provide global customers with production line layout planning, installation guidance and reliable after-sales technical support.
