TECHNICAL SPECIFICATION

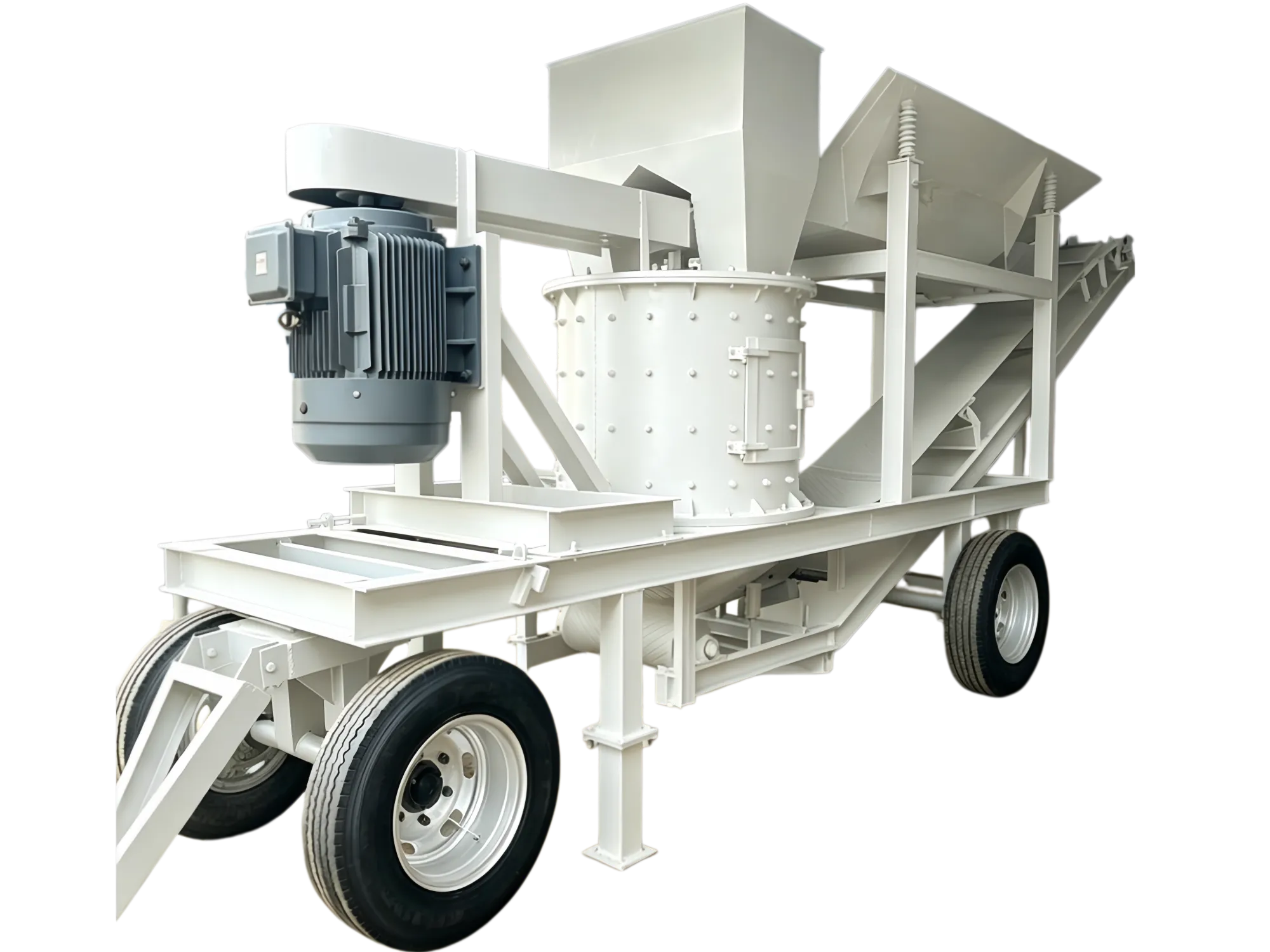

Ref: MOBILE-1000-SERIES-VERTICAL-CRUSHER
1000
The 1000 Type Vertical Crusher is a modern fine crushing and coarse grinding machine integrated with advanced global crushing technologies, combining the strengths of impact and hammer crushers. Adopting a no-screen bottom design, it crushes both dry and wet materials without clogging.
The 1000 Type Vertical Crusher is a new-generation multi-functional fine crushing and coarse grinding equipment, combining the core advantages of hammer crusher and impact crusher. Different from traditional crushing machines, this vertical crusher adopts a no screen bottom design, which completely solves the blocking problem caused by high-humidity materials.
Equipped with a 75kW high-power motor and 33 high-alloy wear-resistant hammers, the machine features large crushing ratio, uniform discharging particle size and stable operation. Its vertical compact structure saves floor space, making it widely applicable for crushing ores, mineral slag, construction materials and organic wastes. It is an ideal crushing equipment for small and medium-sized processing production lines.
Materials fall into the crushing chamber from the top feeding hopper by gravity. The main shaft drives 33 high-speed rotating hammers to strike, shear and crush materials powerfully. Then the materials are thrown to the counterattack lining plates for secondary impact crushing.
Inside the layered crushing cavity, materials undergo repeated impact, extrusion and grinding to achieve fine particle refinement. Thanks to the no-screen structure, qualified particles are automatically discharged without screening restriction, ensuring no blockage even for sticky and wet materials, and greatly improving continuous production efficiency.
No Screen Bottom, Zero Blockage: Cancel traditional screen mesh design, perfectly handle wet, sticky and humid materials such as sludge, manure and wet slag, no material jamming during long-time operation.
Super Wear-resistant Accessories: Hammers and lining plates are made of high-hardness multi-element alloy materials. The wear resistance is 2-3 times higher than ordinary cast iron parts, greatly extending the service life of vulnerable parts.
High Crushing Efficiency & Large Output: Matched with 75kW high-power motor and multi-layer crushing structure, the machine realizes one-time fine crushing with large processing capacity and high finished product rate.
Vertical Compact Structure: Vertical integrated design occupies small floor area, saves factory construction and space cost, easy to install and place.
Stable Operation & Low Noise: Optimized rotor dynamic balance design reduces vibration and operation noise, meeting environmental production standards.
Simple Operation & Low Maintenance: Modular assembly structure, vulnerable parts can be replaced quickly. The whole machine has simple structure, low failure rate and low daily maintenance cost.
Dual-purpose for Dry and Wet Materials: Compatible with various dry bulk materials and high-humidity sticky materials, with wide material adaptability.
Item | Specification |
|---|---|
Model | 1000 Type Vertical Crusher |
Motor Power | 75kW |
Hammer Quantity | 33 Pcs |
Structural Layers | 6 Layers |
Max Feeding Size | ≤50mm |
Discharging Size | 0-5mm (Adjustable) |
Processing Capacity | 10-15 Tons Per Hour (Depends on Materials) |
Overall Dimension | 2200×1500×2800mm |
Machine Weight | About 3500kg |
Core Design | No Screen Bottom, Vertical Layered Crushing |
Mining Industry: Fine crushing of limestone, granite, basalt, iron ore, sandstone, gypsum and other medium-hard ores.
Building Materials Industry: Processing construction sand, cement clinker, concrete aggregate, gangue and building waste materials.
Organic Fertilizer Industry: Crushing livestock manure, crop straw, sludge, mushroom residue and other organic wastes for fertilizer production.
Chemical & Coal Industry: Fine processing of coal gangue, lump coal, chemical raw materials and industrial slag.
Environmental Protection Industry: Resource recycling and crushing of various industrial waste residues and renewable materials.
Factory Direct Supply: Professional crushing equipment manufacturer with years of production experience, no middleman profit, guaranteed quality and price advantage.
Customized Service: Support personalized customization of hammer material, rotor speed and discharging fineness according to customer's materials and production needs.
Global After-sales Service: Provide one-stop services including equipment installation, commissioning, worker operation training and long-term spare parts supply. 24-hour online technical support.
Cost-effective Performance: Durable vulnerable parts, low failure rate and low later operation cost, creating higher economic benefits for users.
Free Trial & Solution: Support material trial crushing, provide professional production line configuration solutions according to actual output requirements.
Get the latest 1000 Type Vertical Crusher price, detailed parameter list and customized production solution! Welcome to contact us for free consultation and factory inspection.
