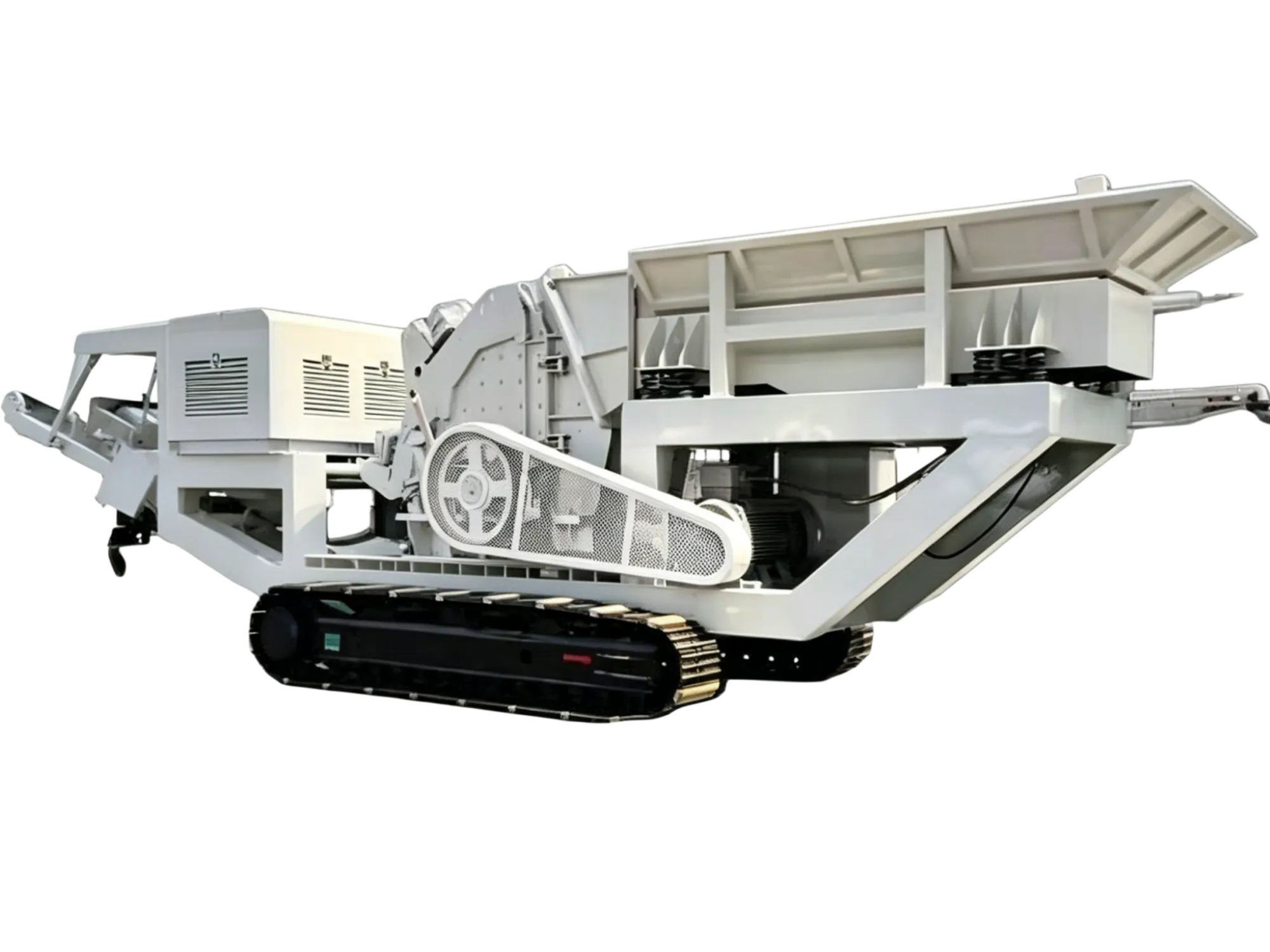

Mobile 1214 Impact Crusher Plant

Product Detailed Content

1. Product Overview

The crawler 1214 impact crushing station is an all-in-one mobile crushing unit integrating feeding, crushing, conveying and screening. It adopts PFY1214 impact crusher as the core unit, specially designed for medium and soft materials below 350MPa compressive strength. It combines high output, excellent aggregate shape and strong cross-country mobility.

2. Main Technical Parameters

• Crusher Model: PFY1214

• Capacity: 220-300 tons per hour

• Max Feeding Size: 304mm

• Discharge Adjustment Range: 35-45mm

• Main Motor Power: 220/250kW

• Driving Mode: Diesel & electric dual power

• Crawler Chassis: Hydraulic drive, climbing capacity up to 20°

• Total Weight: About 55 tons

3. Core Advantages

1. High Efficiency & Perfect Aggregate Shape

   Adopts heavy-duty rotor and three-chamber crushing design. High wear-resistant alloy blow hammer and thick impact liner ensure large crushing ratio. Final products are cubic shape with low flaky content, fully meeting high-standard sand and aggregate requirements.

2. Crawler Mobility & Strong Terrain Adaptability

   Low ground pressure crawler chassis adapts to mountainous, muddy and complex construction sites. No foundation installation needed, put into operation immediately after arrival. Greatly reduce site transfer cost.

3. Dual Power Drive & Energy Saving

   Support diesel generator power for remote sites and grid power for fixed working sites. Lower comprehensive energy consumption than traditional crushing lines.

4. Modular Structure & Easy Maintenance

   Standard modular liner and impact plate with good interchangeability. Hydraulic opening design allows quick blow hammer replacement, saving maintenance time and reducing downtime loss.

5. Intelligent PLC Control

   Equipped with intelligent PLC control system, one-key start and stop. Real-time monitoring of temperature, pressure and current with overload automatic protection. Easy operation with only one worker needed.

4. Applicable Materials & Application Scenarios

Applicable Materials:

Limestone, dolomite, sandstone, shale, coal gangue, river pebble, construction waste, concrete blocks and other medium-soft stones.

Application Scenarios:

• Mining quarry stone crushing

• Highway, railway and bridge construction aggregate production

• Construction waste recycling and reclaimed aggregate making

• Mobile sand making and stone shaping project

5. Working Process

Raw materials are fed evenly by the vibrating feeder into the 1214 impact crusher. After impact crushing, qualified materials are conveyed out by belt conveyor. Oversized materials return to the crushing chamber for re-crushing, forming a closed-circuit circulation to ensure uniform final grain size.

6. Why Choose Our Crawler 1214 Impact Crushing Station?

• Factory direct supply with competitive price

• 12-month whole machine warranty and extended warranty for core parts

• Free on-site installation, commissioning and operator training

• 24-hour online after-sales service support

• Customizable configuration according to customer output and material demands
