TECHNICAL SPECIFICATION
Ref: MOBILE-250-400-JAW-CRUSHER
PE 250*400

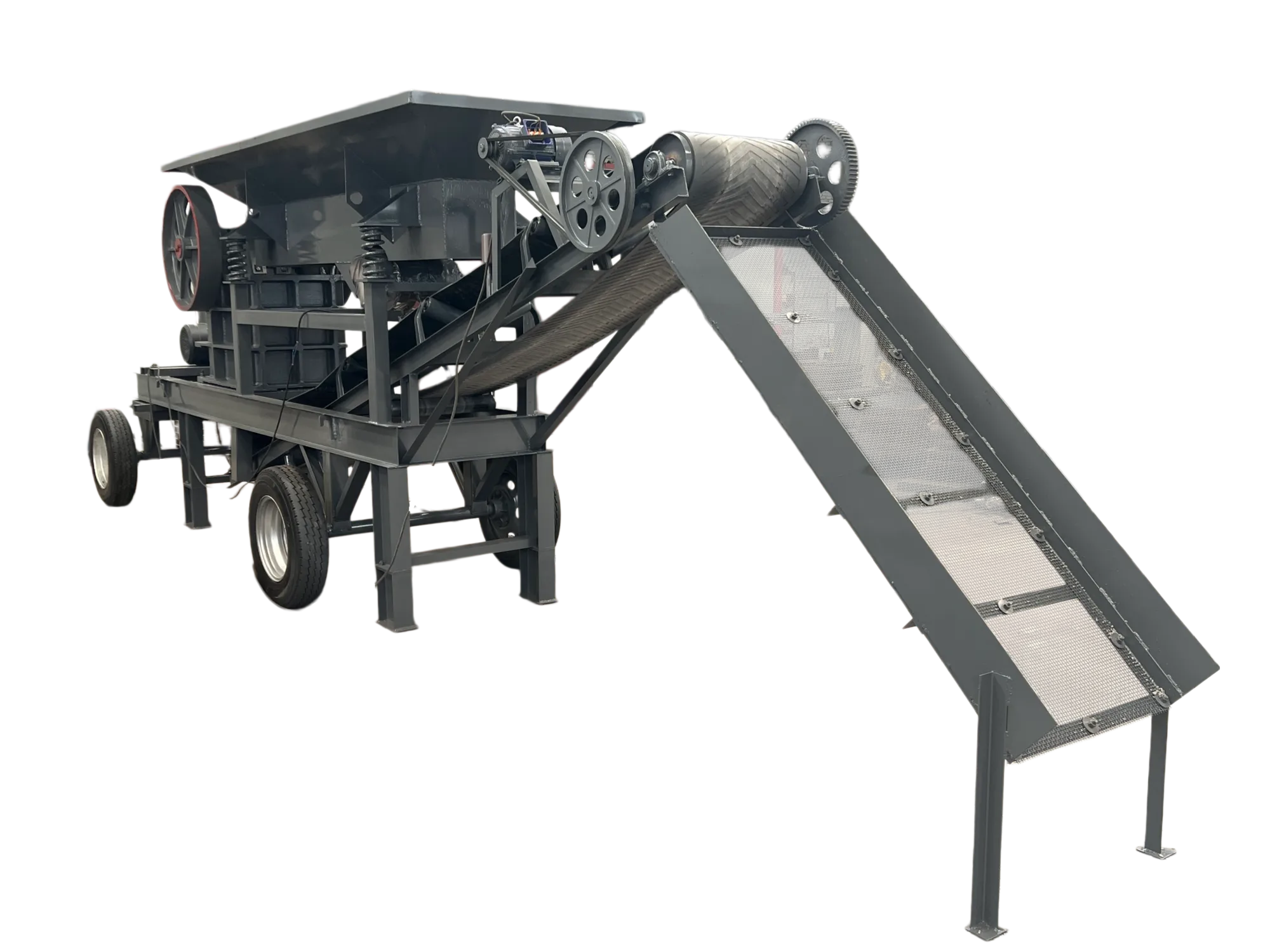

The Mobile 250×400 Jaw Crusher can crush various types of hard rock, is easy to move, and offers the option of a custom diesel engine.
This mobile 250x400 jaw crusher comes with vibrating feeder and belt conveyor, total power 18.75KW and output of 20-30 tons per hour. Integrated structure enables automatic feeding, crushing and discharging. It works well for various hard stones, easy to move and operate for diverse crushing projects.
This mobile 250x400 jaw crusher is an integrated mobile crushing unit combining main crusher, vibrating feeder and discharge conveyor. With total power of 18.75KW, it achieves stable hourly output of 20 to 30 tons. Professionally built for processing all types of hard stones, the whole machine adopts mobile chassis design, which can be flexibly transferred between working sites.
Different from separate equipment, this all-in-one design realizes automatic feeding, crushing and conveying in one set. It needs no complicated installation and connection work after relocation. Featuring strong crushing capacity, stable running performance and wide material adaptability, it is widely favored for quarrying, road construction, mining and construction waste treatment projects.
Built on heavy-duty mobile chassis, the whole unit can be towed and moved freely. Suitable for mountain roads, gravel roads and complex construction sites. No foundation pouring required, ready to work quickly after arriving at new sites, ideal for projects with frequent site changes.
Matched with standard 18.75KW power system, power output is sufficient and steady. The equipment runs smoothly under long-time continuous working conditions, low vibration and low failure rate, fully supporting 20-30 tons hourly processing capacity.
The supporting vibrating feeder realizes uniform and quantitative feeding to prevent material blocking. The matched belt conveyor automatically transports finished materials. It greatly reduces manual work, realizes unmanned continuous production and improves overall working efficiency.
The 250x400 jaw crushing host has deep crushing cavity and high extrusion force. It can efficiently crush granite, basalt, river pebble, bluestone, hard ore and other high-hardness materials, with wide application range and strong material adaptability.
The discharge gap can be adjusted freely to produce finished aggregates of different specifications. It meets diverse material standards for road paving, building concrete, foundation filling and other engineering usage, with high production flexibility.
Key components like jaw plates and lining plates are made of high-strength wear-resistant manganese steel, resisting impact and abrasion. The overall structure is solid and reasonable, vulnerable parts are few, and daily maintenance is simple and convenient.
Perfect for quarry stone processing, mining ore crushing, highway and rural road construction, infrastructure projects and construction waste recycling. It is a practical and cost-effective mobile crushing solution for medium-scale production demands.
Raw materials are evenly sent into the crushing cavity by the vibrating feeder. Driven by the power system, the movable jaw plate moves reciprocatingly to squeeze and crush hard stones. Qualified materials fall to the belt conveyor and are transported to the material stacking area. Oversized materials stay inside the cavity for secondary crushing, forming a fully automatic circulating crushing process.
表格
Item | Detailed Specification |
|---|---|
Product Model | Mobile 250x400 Jaw Crusher |
Total Power | 18.75KW |
Hourly Processing Capacity | 20-30 Tons Per Hour |
Supporting Configuration | Vibrating Feeder + Belt Conveyor |
Max Feeding Size | 210mm |
Adjustable Discharge Size | 20-60mm |
Processed Materials | All kinds of hard stones, ores, rock materials |
Moving Type | Integrated mobile traction chassis |
Working Mode | Automatic feeding, crushing and discharging |
Core Wear Parts | High wear-resistant manganese steel jaw plate |
Application | Quarry, mining, road construction, waste recycling |
One integrated machine replaces multiple separate devices, no need to purchase extra feeder and conveyor. Compact structure saves site space and overall investment cost.
Full automatic feeding and discharging reduce labor input, cut labor cost and avoid manual operation errors, keeping production running efficiently.
20-30T/H steady capacity meets medium production needs. Crushed materials have uniform particle size, which improves finished product quality and market competitiveness.
Mobile design adapts to various remote and complex working sites, no fixed workshop required, greatly expanding working range.
Durable accessories and simple structure lower maintenance frequency and parts replacement cost, bringing long-term economic benefits.
All equipment undergoes strict factory testing before delivery. We adopt standard export fumigated wooden case or container packaging to avoid damage during long-distance transportation. Multiple logistics solutions are available. Complete English operation manuals, installation guides and remote technical support are provided. We also supply long-term spare parts to ensure continuous production for overseas customers.
