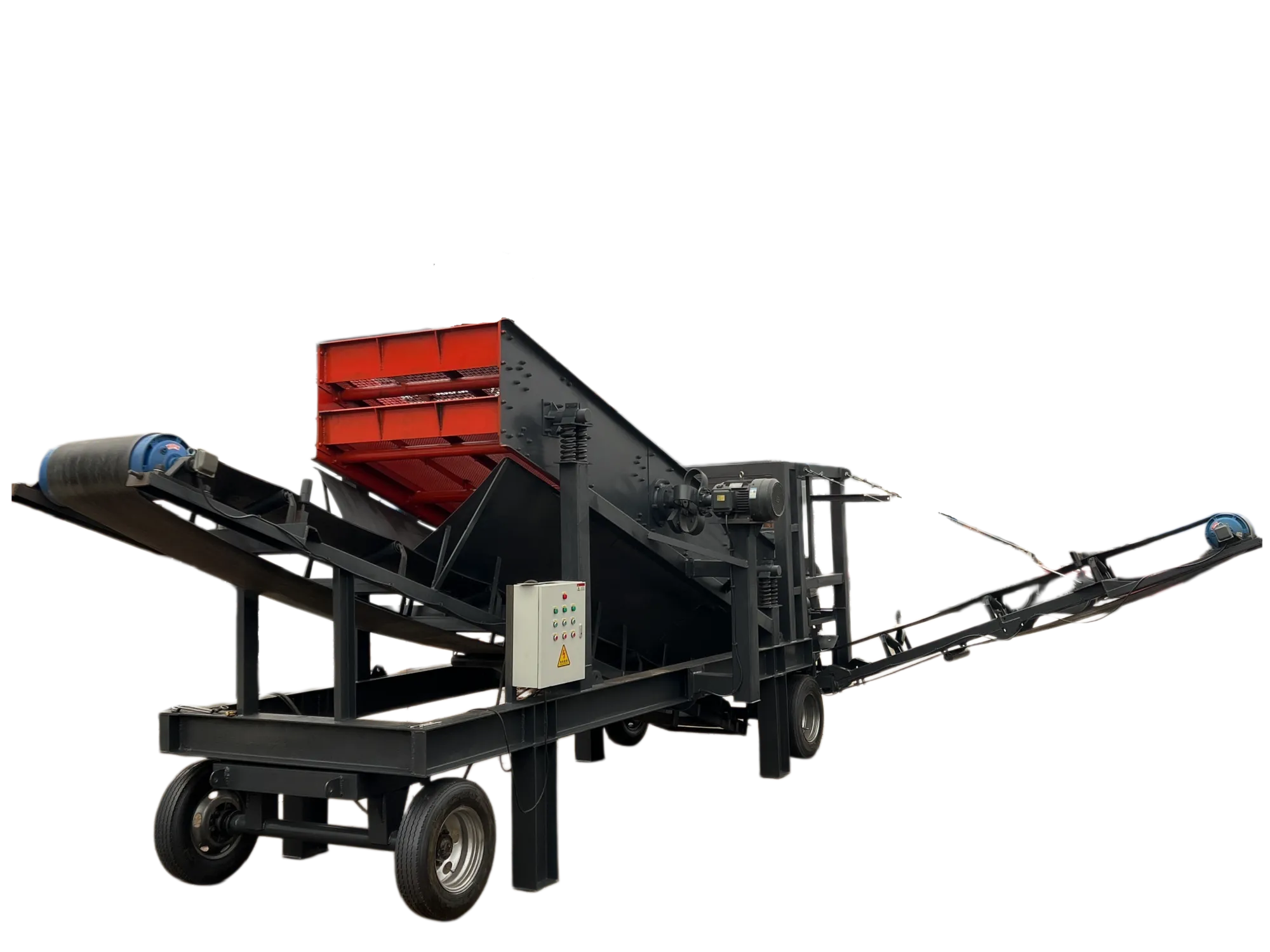

Mobile 2YK-1548 Vibrating Screen

1. Product Overview

The mobile 1548 double deck vibrating screen (model 2YZS1548) is a heavy-duty mobile screening equipment integrating feeding, screening, conveying and mobile chassis. The screen box size is 4800×1500mm, with 2 layers of screen mesh to produce 3 different granularity products in one pass. It is widely used in stone quarry, mineral processing, sand making, construction waste recycling, road & highway construction etc. The mobile chassis (crawler or wheeled) allows quick site transition without foundation installation.

2. Working Principle

The vibration motor drives the exciter to generate high-frequency vibration. Materials are fed onto the top deck, then stratified and screened through 2 layers of mesh; oversize, middle and fine materials are discharged separately via three outlets. The adjustable vibration amplitude (5–9mm) and frequency (870r/min) ensure high screening efficiency for various materials.

3. Key Features & Advantages

• 1548 Double Deck Design: 4.8×1.5m screen area, 2 layers for 3 finished sizes, high output 30–275t/h.

• Mobile Flexibility: Crawler/wheeled chassis, self-propelled, no installation, quick transition between sites.

• High Screening Efficiency: 95%+ accuracy, adjustable mesh (3–100mm) for different materials.

• Durable & Reliable: Heavy-duty steel frame, high wear-resistant mesh, 15kW stable motor, long service life.

• Easy Maintenance: Simple structure, quick mesh replacement, centralized lubrication, low operation cost.

• Wide Adaptability: Suitable for stone, sand, gravel, ore, coal, construction waste, wet/dry screening.

4. Technical Specifications (Standard 2YZS1548 Mobile)

• Model: 2YZS1548 (Double Deck)

• Screen Box Size: 4800×1500mm (15×4.8ft)

• Screen Layers: 2 layers → 3 outputs

• Capacity: 30–275 tons per hour

• Motor Power: 15kW

• Vibration Frequency: 870r/min

• Amplitude: 5–9mm (adjustable)

• Feed Size: ≤400mm

• Screen Mesh: 3–100mm (customizable)

• Chassis: Crawler / Wheeled (optional)

5. Application Scenarios

• Mining & Quarry: Granite, basalt, limestone, iron ore, gold ore screening.

• Sand & Gravel Plant: Natural sand, crushed stone, aggregate grading.

• Construction Waste Recycling: Concrete, brick, asphalt waste screening & reuse.

• Road & Highway: Base material, surface aggregate production.

• Coal & Coke: Coal grading, coke screening, mineral processing.

6. Why Choose Our Mobile 1548 Vibrating Screen

We are a professional mining machinery manufacturer with 20+ years’ experience. Our mobile 1548 double deck screens are exported to Africa, Southeast Asia, South America etc. We provide:

• Factory direct price, competitive cost-performance.

• Strict quality inspection: raw material → production → finished test.

• 12-month warranty, core components guaranteed.

• Customization: chassis type, mesh size, voltage, color, logo.

• Fast delivery: 7–15 days after order confirmation.

• 24/7 online after-sales: installation guide, operation training, troubleshooting.
