TECHNICAL SPECIFICATION
Ref: MOBILE-CRUSHER

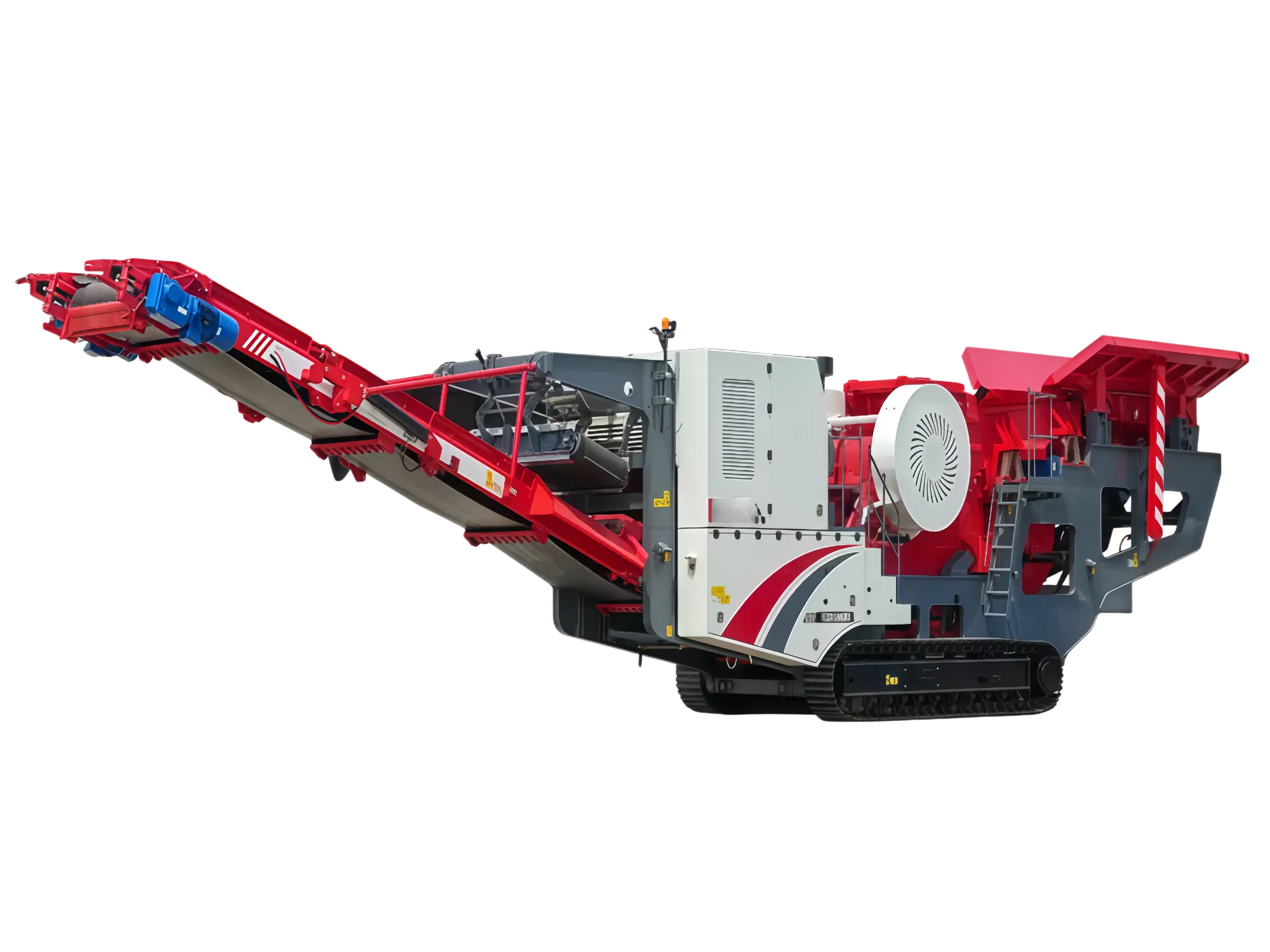

PE1100
The PE1100 crawler mobile jaw crusher is a heavy-duty, track-mounted primary crushing solution designed for high-efficiency operations in mines, quarries, and construction waste recycling sites. Powered by advanced hydraulic and diesel-electric systems, it combines the proven performance of a PE1100
The PE1100 crawler mobile jaw crusher is a heavy-duty, track-mounted primary crushing solution designed for high-efficiency operations in mines, quarries, and construction waste recycling sites. Powered by advanced hydraulic and diesel-electric systems, it combines the proven performance of a PE1100 jaw crusher with the flexibility of a fully self-propelled crawler chassis. This eliminates the need for costly site infrastructure and material haulage, making it ideal for remote or frequently changing job sites.
Heavy-Duty PE1100 Jaw Crusher: High-capacity primary crushing chamber with deep, symmetrical crushing cavity for superior performance.
Crawler Track System: Hydraulically driven crawler chassis for excellent maneuverability on rough terrain, slopes, and confined spaces.
All-in-One Design: Integrated vibrating feeder, jaw crusher, discharge conveyor, and control system on a single compact platform.
Diesel-Electric Power Pack: Reliable diesel engine meets on-site power needs; optional plug-in electric mode available for low-cost operation.
Automated Control System: Intelligent PLC control with remote monitoring capabilities for easy operation and maintenance.
Adjustable Discharge Gap: Quick-setting hydraulic or shim adjustment allows fast, precise control over product size.
Item | Specification |
|---|---|
Model | PE1100 Crawler Mobile Jaw Crusher |
Feed Opening | 1100 × 1200 mm (customizable) |
Max Feeding Size | ≤ 930 mm |
Capacity | 250–650 t/h |
Power Source | Diesel engine + electric motor |
Chassis Type | Heavy-duty crawler track |
Overall Weight | ~ 85–120 tons (depending on configuration) |
Raw material is fed into the hopper and uniformly delivered to the jaw crusher via the vibrating feeder.
The PE1100 jaw crusher performs primary crushing through continuous squeezing action between fixed and moving jaws.
Crushed material is discharged from the crusher and conveyed to the stockpile or next stage by the onboard belt conveyor.
The crawler chassis allows the entire unit to move independently, following the working face without the need for external transport.
Hard rock quarrying (granite, basalt, quartzite)
Large-scale mining primary crushing
Construction and demolition waste recycling
On-site aggregate production for roads, railways, and dams
Remote area projects with limited infrastructure
High Mobility: Access to any site, no need for fixed foundations.
Cost Reduction: Eliminates truck haulage costs, reduces overall project expenses.
High Productivity: Continuous crushing operation with high hourly output.
Durable Construction: Robust frame and wear-resistant parts for long service life.
Environmentally Friendly: Low-noise design and optional dust suppression system.
The PE1100 crawler mobile crusher is shipped as a complete unit or partially disassembled for ocean transport. We provide standard export packaging and professional loading service, supporting FOB/CIF terms and container or bulk vessel delivery.
12-month warranty for the main unit
24/7 online technical support and troubleshooting
Spare parts supply and on-site installation guidance
Customized crushing solutions based on customer material and site conditions
