TECHNICAL SPECIFICATION
Ref: MODEL-4-40-BRICK-MAKING-MACHINE

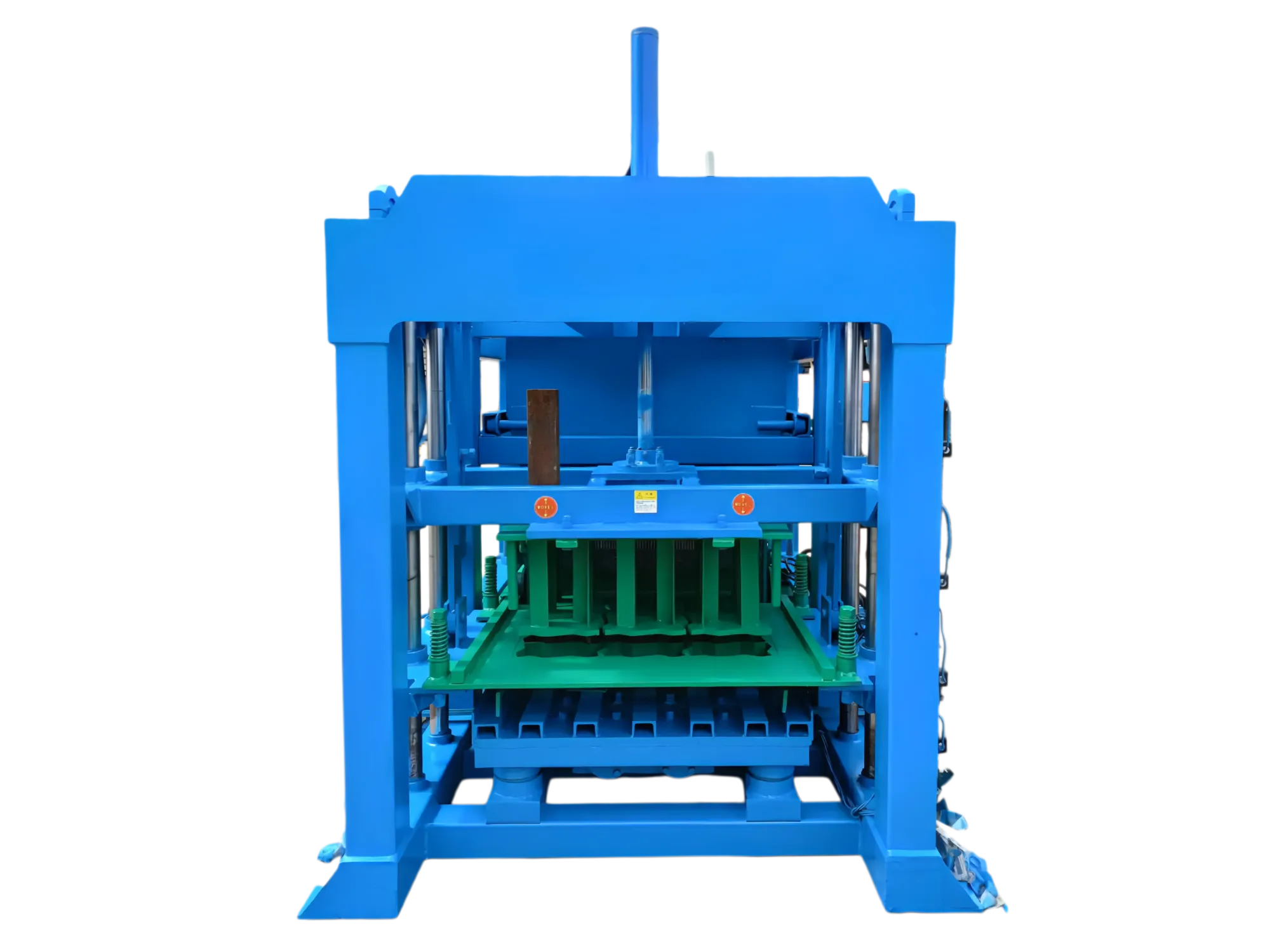

4-40A Brick-making Machine
The QTJ4-40A block making machine is a versatile concrete brick production equipment designed for small to medium-scale construction needs. With 8.8KW total power and a 40-second forming cycle, it produces various bricks including solid blocks, hollow bricks, pavers and curbstones by changing moulds
The QTJ4-40A concrete block making machine is a multi-functional vibration-type brick making equipment, widely used in producing different types of concrete blocks. By simply changing moulds, it can manufacture solid bricks, hollow blocks, colored pavers, curbstones and other special-shaped bricks, meeting various construction requirements for building, road paving and landscaping.
With a compact design and 8.8KW power system, this machine is easy to install and operate, making it an ideal choice for small-scale brick production and construction site on-site processing.
表格
Item | Specification |
|---|---|
External dimensions of the host | 1600(L) × 1500(W) × 2050(H) mm |
Excitation force | 40 KN |
Principal mode | Mould Vibration |
Vibration frequency | 2800 times/min |
Forming cycle | 40 seconds/time |
Total power | 8.8 KW |
Pallet size | 900(L) × 450(W) × 25(H) mm |
Whole machine weight | 1200 KG |
Whole machine volume | 4.9 cubic meters |
表格
Product Type | Specification Size (mm) | Quantity Per Mold | Forming Cycle | Output Per Hour |
|---|---|---|---|---|
Solid Brick | 240×115×53 | 24 pcs/mold | 40s | 2160 pcs/hour |
Hollow Block | 400×200×200 | 4 pcs/mold | 40s | 360 pcs/hour |
Hollow Block | 400×150×200 | 5 pcs/mold | 40s | 450 pcs/hour |
Color Paver | 200×100×60 | 14 pcs/mold | 40s | 1080 pcs/hour |
Paver Brick | 200×160×60 | 8 pcs/mold | 40s | 720 pcs/hour |
With interchangeable moulds, the QTJ4-40A block making machine can produce a wide range of brick types for different applications.
Used for walkways, driveways and plazas, available in various shapes and colors:
Used for road edges, curbs and landscaping projects:
Used for building walls, with different sizes and hole patterns:
🔄 Multi-Mould Compatibility: Change moulds easily to produce solid bricks, hollow blocks, pavers and curbstones.
⚙️ Stable Mould Vibration System: 40KN excitation force and 2800 times/min frequency ensure uniform compaction.
⏱️ High Efficiency 40s Cycle: Fast forming cycle ensures continuous production and high output.
💡 Energy Saving 8.8KW Power: Low power consumption reduces operation cost for small-scale production.
🏗️ Compact & Space Saving: Small footprint fits easily in construction sites or small workshops.
🔧 Easy Operation & Maintenance: Simple mechanical structure, easy to learn and maintain for operators.
🛡️ Durable Construction: Reinforced frame and wear-resistant parts ensure long service life.
The QTJ4-40A block making machine is widely used in:
Small-scale concrete brick production plants
Construction site on-site brick making
Road and sidewalk paving projects
Landscaping and garden projects
Rural infrastructure construction
