TECHNICAL SPECIFICATION
Ref: PC-200-300

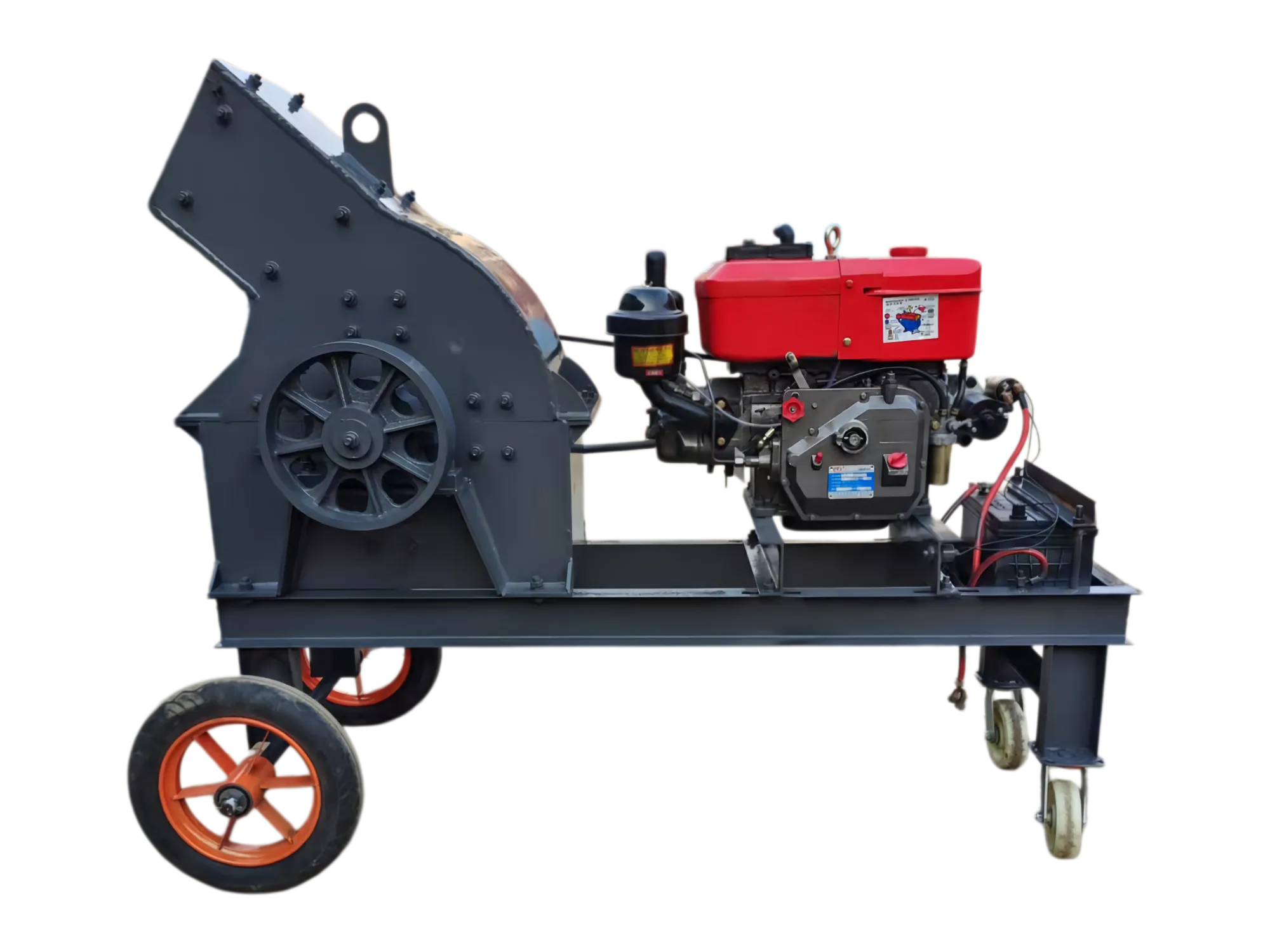

PC 200*300
The 200x300 mobile diesel hammer crusher is a professional fine crushing machine equipped with a 12HP diesel engine. Designed for fine ore processing, it crushes various hard stones into uniform fine materials below 5mm. Integrated mobile chassis requires no installation, works without electricity,
The 200×300 mobile diesel hammer crusher driven by 12HP diesel engine is a specialized fine crushing equipment focused on stone and ore fine processing. Different from jaw crushers for coarse crushing, this hammer crusher adopts high-speed rotating hammer head impact crushing, which can directly crush raw stones into fine granular materials below 5mm, meeting the strict fine material requirements for ore beneficiation, construction sand making, and fine aggregate processing.
Equipped with a reliable 12HP diesel power system, the machine completely gets rid of electric power restrictions. The 200×300mm feeding size design adapts to various small-block raw ores and stones. With lightweight body and mobile walking design, it is the best portable fine crushing equipment for small ore processing, field fine stone production and decentralized fine material processing projects.
Item | Specification |
Model | 200×300 Mobile Diesel Hammer Crusher |
Feed Opening Size | 200×300mm |
Max Feed Size | ≤150mm |
Discharge Size Range | ≤5mm (Uniform Fine Material) |
Production Capacity | 2–5 Tons Per Hour |
Power Configuration | 12HP Single Cylinder Diesel Engine, 5.5KW Electric Motor (Optional) |
Overall Weight | 1000–1300kg |
Working Mode | Mobile walking type, professional fine crushing |
The matched 12HP single-cylinder diesel engine is a dedicated low-consumption power unit for small hammer fine crushers. It features stable power output, quick startup, low fuel consumption and low failure rate. The engine adapts to harsh outdoor and mining environments, supports long-time continuous fine crushing operation, and requires simple daily maintenance. It perfectly solves the power shortage problem of outdoor fine ore crushing, ensuring continuous and stable fine material production.
This 200×300 diesel hammer crusher adopts an integrated mobile chassis design, integrating the crushing host, 12HP diesel engine set and walking support structure. The whole machine is lightweight and flexible, no foundation fixing or complicated installation is required. Users can freely switch working sites to realize on-site fine crushing of ores and stones, greatly saving transportation costs of raw materials and finished fine materials.
Equipped with professional fine crushing screen mesh, the machine strictly controls the discharge particle size within 5mm, with uniform finished particle size and no large particles, fully meeting the standard of fine ore materials and fine construction aggregates.
⛽ 12HP Independent Diesel Power: No grid power supply needed, free outdoor and field operation, suitable for remote mining sites and powerless areas.
🚜 Mobile Portable Structure: Integrated walking chassis, light weight, flexible movement, no installation required, start working immediately after moving.
📏 Super Fine Discharge Effect: Professional fine crushing design, finished materials strictly below 5mm, uniform particle size, ideal for fine ore processing.
💡 High Efficiency & Energy Saving: Optimized hammer crushing structure with 12HP low fuel consumption engine, high fine crushing efficiency and low operating cost.
🛡️ Wear-Resistant Hammer Head: High-strength wear-resistant hammer and screen plate, strong impact resistance, durable and long service life for ore crushing.
🔧 Simple Operation & Maintenance: Compact mechanical structure, simple operation process, single-person control, convenient daily overhaul and parts replacement.
🪨 Professional Ore Adaptability: Specially designed for fine crushing of limestone, river pebble, bluestone, various ores, mine tailings and construction waste.
The 200×300 12HP diesel mobile hammer crusher is professionally used formine ore fine crushing, fine aggregate processing, small sand making projects, construction waste fine recycling, road base fine material preparation and mineral raw material fine processing. It is the preferred portable fine crushing equipment for small mines, individual processing plants and fine material engineering projects.
