TECHNICAL SPECIFICATION
Ref: PC-200-300-HAMMER-MILL

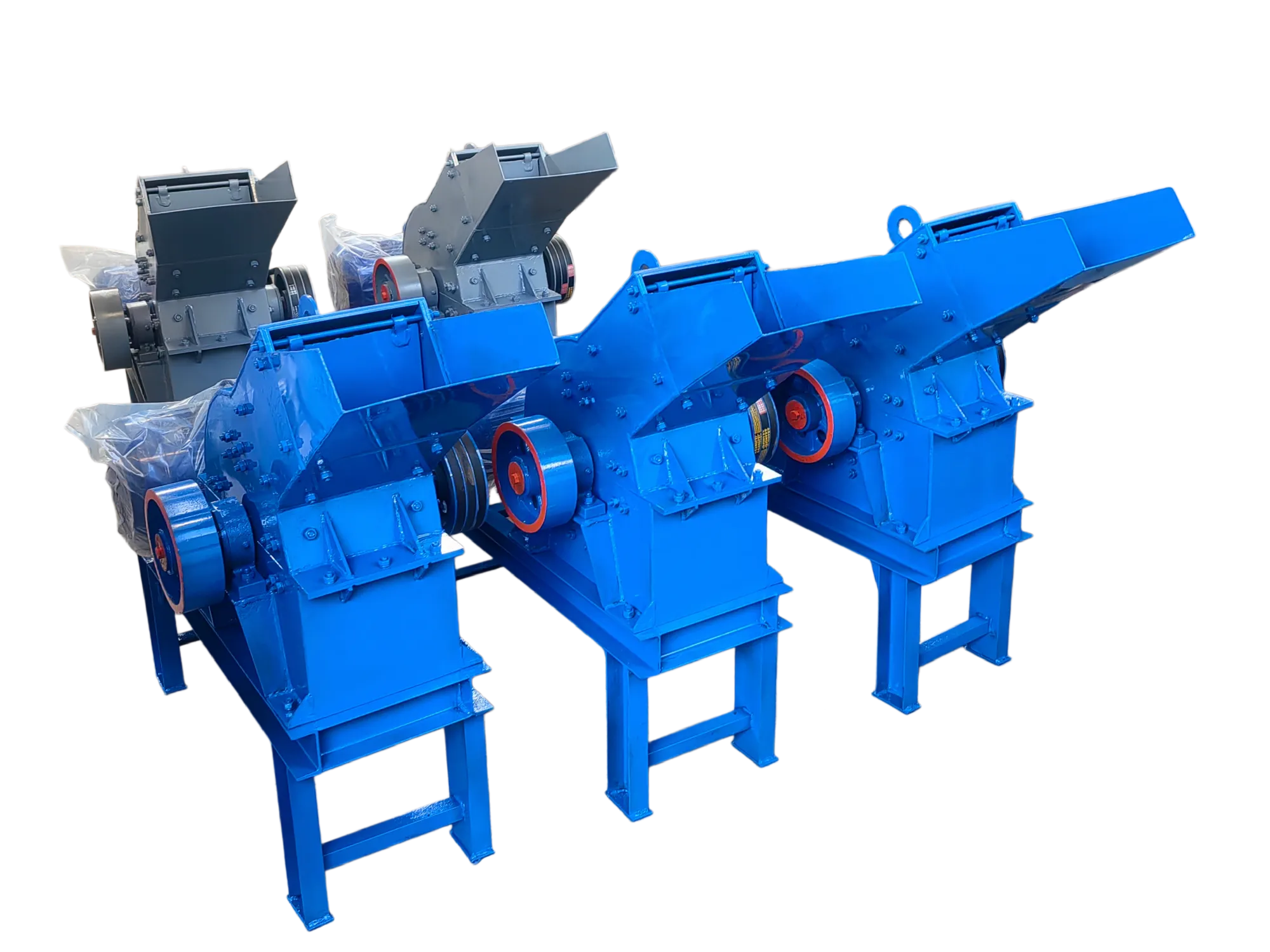

PC 200*300 Hammer Mill
Our 200*300 hammer crusher is compact and cost-effective. It adopts reliable hammer impact crushing design, easy operation and low maintenance cost. Suitable for limestone, coal, gangue and other materials crushing. Widely used in mining, building materials, road construction and small sand
The 200*300 hammer crusher is a mini type crushing and sand making machine designed for small-scale mining and construction projects. Adopting hammer impact crushing principle, this machine can crush raw stones into uniform fine aggregate. With compact structure, low energy consumption and affordable price, it is the most cost-effective crushing equipment for personal use and small processing plants.
The whole machine adopts thickened steel body and high manganese steel hammer heads, which are wear-resistant and durable. Simple internal structure greatly reduces failure rate and daily maintenance cost. This hammer crusher supports adjustable discharging size to meet different sand and stone production requirements.
Item | Specification |
|---|---|
Model | 200*300 Hammer Crusher |
Feed Opening Size | 200×300mm |
Max Feeding Size | 150mm |
Discharging Size | 5-20mm (Adjustable) |
Production Capacity | 2-5 Tons Per Hour |
Motor Power | 7.5 KW |
Rotor Speed | 1450 r/min |
Overall Dimension | 950×700×850mm |
Machine Weight | 280 KG |
Durable Material: High manganese steel hammer head, strong wear resistance and long service life.
Easy Operation: Simple structure, one-person operation, low operation requirement.
Adjustable Output: Control discharging particle size freely for different usage.
Low Cost: Low power consumption, easy maintenance and low replacement cost of wearing parts.
Compact Design: Small volume, convenient transportation and flexible movement.
Limestone, bluestone, coal, gangue, brick slag, glass, construction waste, concrete residue and other brittle medium-hard materials.
Small mining yard, rural construction, sand and gravel processing, construction waste recycling, home workshop and small crushing station.
