TECHNICAL SPECIFICATION
Ref: PC-300-500-HAMMER-MILL

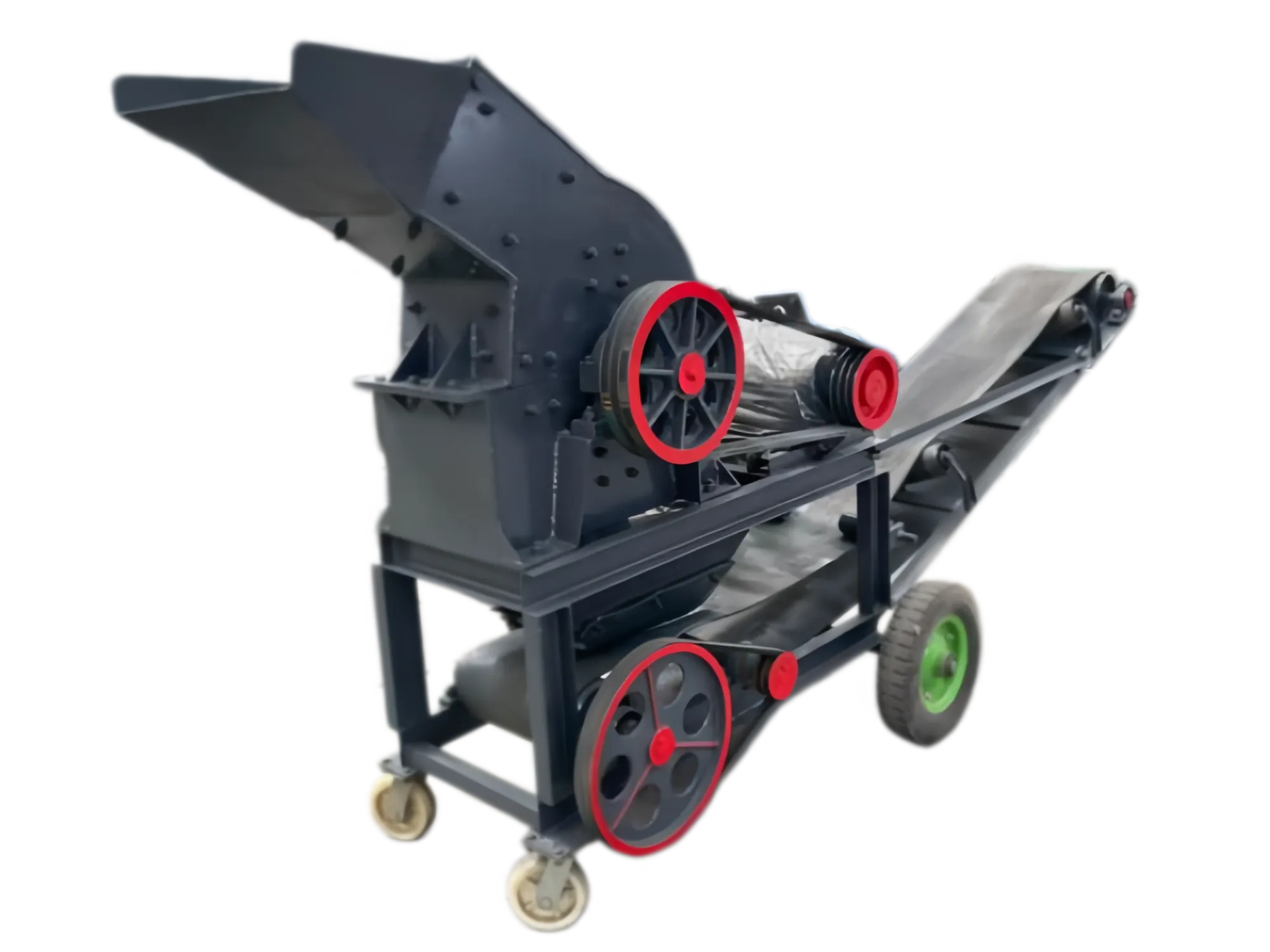

PC 300*500
The Hammer Sand Making Machine 300×500 (PC300×500) is a compact, high-efficiency, and versatile fine crushing and sand-making machine designed specifically for small-to-medium-sized sand and gravel production lines, mineral processing, and construction waste treatment. It can process materials up to
The PC300×500 hammer sand making machine is a compact, high-efficiency fine crushing and sand making equipment. It is specially designed for small and medium-sized sand production lines, mineral processing, and construction waste recycling. This hammer crusher realizes one-time crushing and sand shaping for brittle stones. With small floor space, low investment cost and simple operation, it is the ideal primary fine crushing equipment for small mining enterprises and construction material processing plants.
This machine can crush raw materials with a feeding size below 50mm into finished manufactured sand of 0.15mm to 5mm. It integrates crushing, grinding and shaping functions into one single unit, which effectively solves the problems of complicated process and high cost of traditional sand making equipment.
Item | Technical Data |
|---|---|
Model | PC300×500 |
Feeding Mouth Size | 300×500mm |
Processing Capacity | 3-6 t/h |
Max Feeding Size | ≤50mm |
Discharging Particle Size | 0.15-5mm (adjustable) |
Motor Power | 11-15kW |
Equipment Weight | About 450kg |
Overall Dimension | 850×670×670mm |
Driven by the motor, the rotor equipped with high-manganese steel hammers rotates at a high speed. Raw materials enter the crushing chamber from the top feeding inlet. Under the continuous impact, shear and grinding force of the high-speed rotating hammers, the materials are broken into fine particles. Qualified fine materials pass through the bottom sieve plate and are discharged as finished products. Coarse materials remain in the crushing chamber for repeated crushing until the particle size meets the discharge standard. The whole processing procedure is completed in one time to ensure uniform grain shape.
The crushing ratio ranges from 10 to 25. The finished sand presents cubic shape with few needle-like particles and reasonable gradation, fully meeting the standard of construction sand.
The machine features small volume and light weight. It supports fixed installation and mobile assembly, which is suitable for narrow and limited working sites.
Core wearing parts including hammers and lining plates are made of high-manganese steel. The material has strong impact resistance and wear resistance, greatly extending the service life of vulnerable parts.
Users can replace sieve plates with different apertures to freely control the discharging particle size, adapting to diverse production requirements.
This hammer crusher has low unit energy consumption. It supports wet dust reduction operation with low noise and less dust emission, complying with environmental protection production standards.
The equipment has a simple internal structure with fewer vulnerable parts. The replacement of wearing parts is convenient, which effectively reduces daily maintenance cost and downtime.
It is applicable for medium-hard brittle materials such as limestone, river pebble, granite, basalt, quartz stone, coal gangue, brick and tile, construction waste. The applicable material compressive strength is ≤150MPa and water content ≤15%.
Small sand and gravel plant, mineral fine crushing, ore dressing plant (gold, tin, tungsten ore), construction waste recycling, highway, railway, water conservancy engineering sand production, building materials raw material processing.
The PC300×500 hammer sand making machine can replace the traditional small crushing production line, reducing comprehensive investment cost by more than 30%. It realizes one machine for multiple purposes with integrated functions of fine crushing and stone shaping. The finished manufactured sand has high bulk density and low iron pollution, which can effectively improve the compressive strength of concrete. It is a cost-effective primary crushing solution for global small-scale mining and building material processing industries.
