TECHNICAL SPECIFICATION
Ref: PC-400-600-HAMMER-MILL
400*600

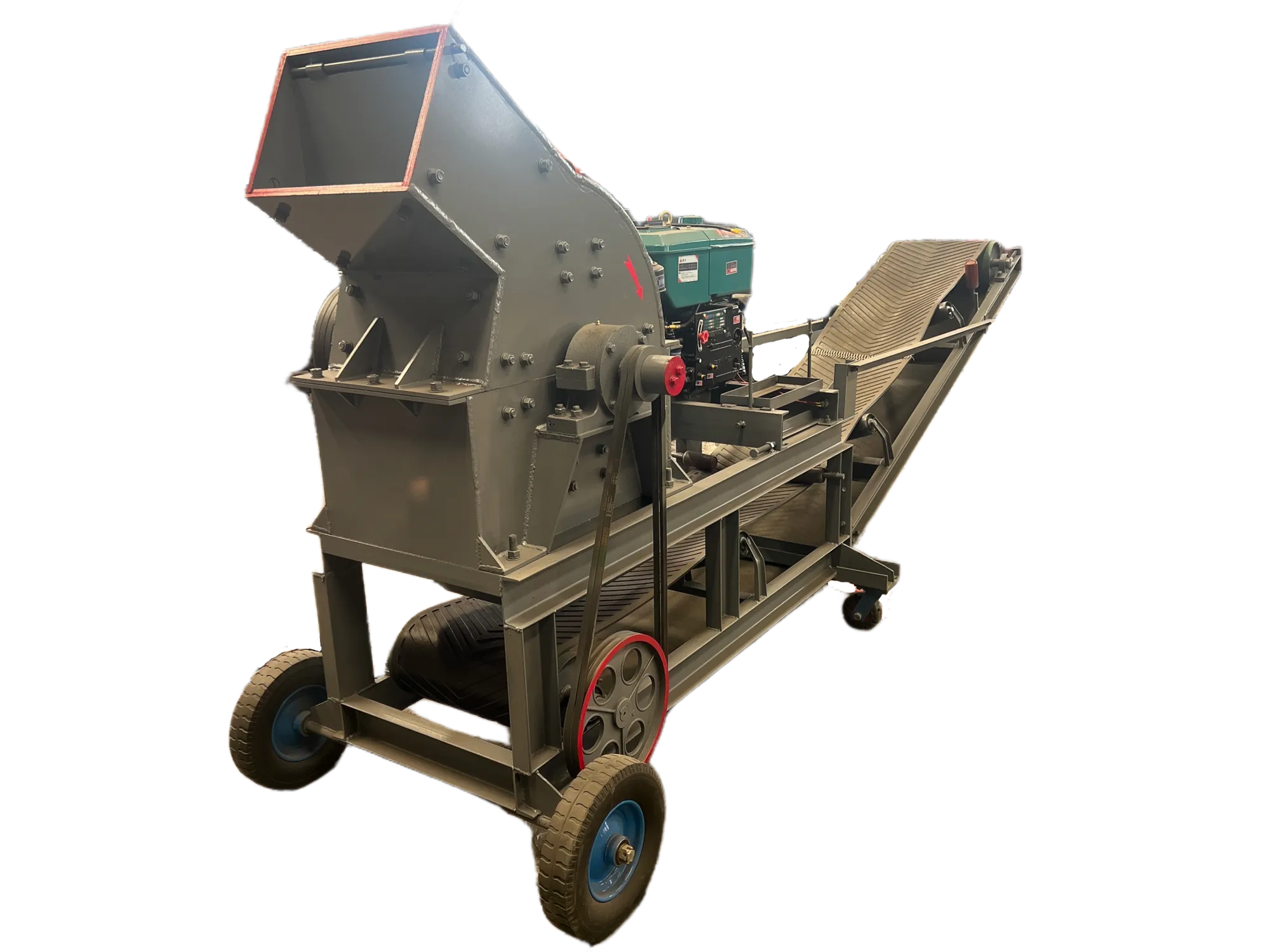

This 400600 mobile hammer crusher is a simple portable crushing equipment equipped with 36HP single cylinder diesel engine. Its feed inlet is 4429cm, max feeding size within 20cm, finished material can reach fine powder below 5mm, stable hourly output up to 20 tons.
This 400*600 simple mobile hammer mill is specially developed for small-scale outdoor crushing and powder making projects. It abandons complex electric configuration, directly adopts reliable 36HP single cylinder diesel engine as power source, starts fast and runs smoothly. With reasonable cavity structure and high-strength hammer head, it can quickly crush various bulk raw materials into uniform fine powder. Compact overall layout, lightweight body and flexible moving performance make it perfectly fit scattered operation sites and temporary construction projects, which is cost-effective small crushing equipment favored by overseas customers.
Equipped with standard 36 horsepower single cylinder diesel engine, sufficient power torque, strong crushing impact force, stable operation and low failure rate. It works normally in areas without power grid, solves the power supply trouble of field operation greatly.
Standard model 400*600, feed inlet size 44×29 cm, control feeding raw material within 20 cm to ensure smooth feeding and no blocking inside the machine. Scientific cavity design ensures smooth material circulation and high working fluency.
After high-speed impact and crushing by hammer heads, all finished materials can reach fine powder below 5 mm, uniform fineness without large particles, fully meet raw material pulverizing, road base material processing and various fine material usage standards.
Integrated mobile base design, simple structure and light weight. Users can drag and move the machine freely between different working places, no need for fixed foundation installation, put into use quickly after arriving at site, save lots of preparation time.
Stable hourly output reaches 20 tons, continuous feeding and continuous discharging, high working efficiency. It meets daily medium-volume crushing production demand, balance production efficiency and equipment investment cost perfectly.
Key wearing parts such as hammer head and lining plate are made of high-quality wear-resistant alloy steel, strong impact resistance and durable. Simple internal structure, few vulnerable parts, easy daily disassembly, maintenance and replacement, lower later use cost.
Suitable for crushing limestone, river stone, shale, coal gangue, various ores, construction waste, brick slag and other materials. Widely used in rural road construction, mine small-scale pulverization, farmland land improvement, raw material processing and other fields.
After raw materials enter from the large feed inlet, they are continuously impacted, beaten and crushed at high speed by rotating hammer heads inside the crushing cavity. Materials are repeatedly collided and ground between hammer heads and lining plates until the particle size meets the standard. Qualified fine powder below 5mm is discharged from the bottom outlet smoothly, oversized materials stay inside the cavity for secondary crushing, finally realize one-time forming fine powder output.
Item | Specification |
|---|---|
Product Model | 400*600 Mobile Hammer Crusher |
Matching Power | 36HP Single Cylinder Diesel Engine |
Hourly Output | 20 Tons Per Hour |
Feed Inlet Size | 44cm*29cm |
Max Feeding Size | Below 20cm |
Discharge Fineness | Below 5mm Fine Powder |
Moving Type | Portable Mobile Type |
Operation Condition | No external power supply needed |
Core Material | Wear-resistant alloy hammer head |
Applicable Materials | Stone, ore, coal gangue, construction waste etc. |
Simple overall structure, reasonable price, no need to match complicated electric control equipment and auxiliary facilities, low purchase threshold, suitable for individual users and small processing factories.
Easy one-person operation, simple feeding and discharging process, high automation degree, effectively save manual labor input and shorten whole processing cycle.
Diesel drive plus mobile design, can work in mountainous areas, remote villages, wild construction sites and other places without stable electricity, strong site adaptability.
Uniform fine powder finished material has wider market usage and higher sales value, help customers create stable economic benefits quickly.
All machines are strictly inspected before delivery to ensure complete performance and complete accessories. We adopt standard export packaging to prevent collision and damage during long-distance sea and land transportation. We support diversified transportation modes, provide detailed English operation manuals, remote operation guidance and basic after-sales technical support, let overseas customers use the machine safely and smoothly.
