TECHNICAL SPECIFICATION
Ref: PC310-520-HAMMER
PC310*520
The PC 310×520 Hammer Crusher is a compact, high-efficiency crushing solution designed for small-to-medium scale aggregate production, construction waste recycling, and mining fine crushing applications. It supports both electric motor and diesel engine drive, offering flexible adaptability to
The PC 310×520 Hammer Crusher is a compact, high-efficiency crushing solution designed for small-to-medium scale aggregate production, construction waste recycling, and mining fine crushing applications. It supports both electric motor and diesel engine drive, offering flexible adaptability to various working conditions, making it a cost-effective choice for low-budget projects.
表格
Item | Specification |
|---|---|
Rotor Size | Ø310mm × 520mm |
Feed Opening Size | Approx. 370×290mm |
Capacity | 7-10 t/h (Typical: 7-8 t/h) |
Discharge Size | 0-5mm (Adjustable via screen plate gap, max ≤10mm) |
Rated Power | 11-15kW (Electric Motor / Diesel Engine) |
Equipment Dimension | Approx. 800×850×910mm (Excluding power unit) |
The hammer crusher operates by high-speed rotating hammers mounted on the rotor, which impact incoming materials. After being struck by hammers, materials collide with the liner plates and each other. Particles smaller than the screen plate gap are discharged, while oversized materials are repeatedly crushed in the chamber until they meet the required particle size, achieving one-time feeding and forming.
High Efficiency & Energy Saving: Large crushing ratio, high production efficiency, and low unit energy consumption, meeting the low-cost operation needs of small projects.

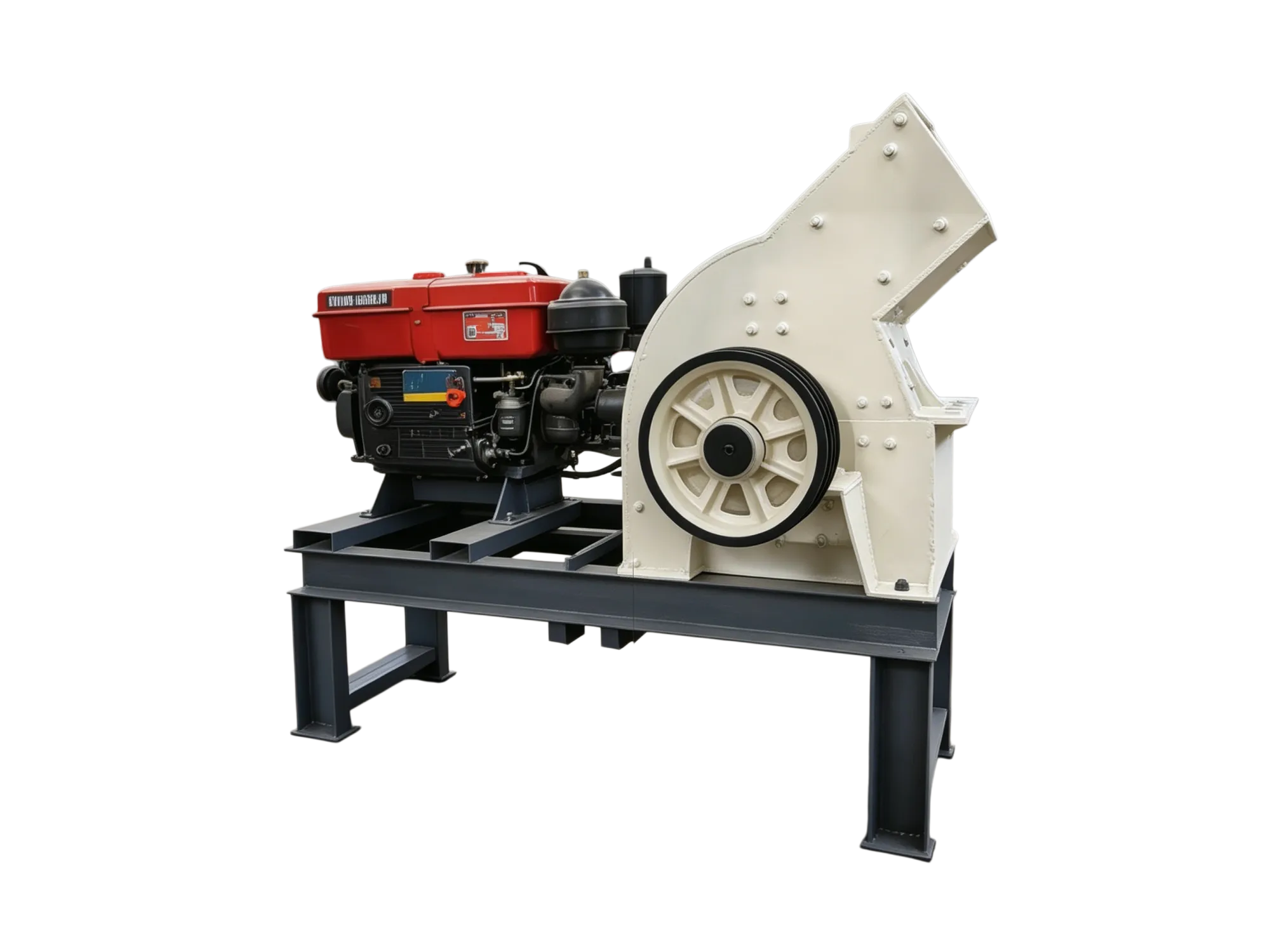

Flexible Adaptability: Compatible with both electric motor and diesel engine drive, and can be equipped with a mobile chassis for field operations without power supply.
Easy Maintenance: Wear-resistant alloy steel hammers and liners with quick replacement design; sealed structure reduces dust leakage and workshop pollution.
Adjustable Discharge: The screen plate gap can be adjusted to flexibly control the finished material size, adapting to different sand making and aggregate processing requirements.
Wide Application Range: Suitable for crushing medium-low hardness materials such as limestone, coal gangue, construction waste, and slag with compressive strength ≤180MPa.
Small-scale sand and aggregate production plants
Construction waste recycling and resource utilization
Auxiliary fine crushing processes in mines and quarries
Crushing and processing of medium-hardness materials in building materials and chemical industries
