TECHNICAL SPECIFICATION
Ref: PC400-600-HAMMER-MILL

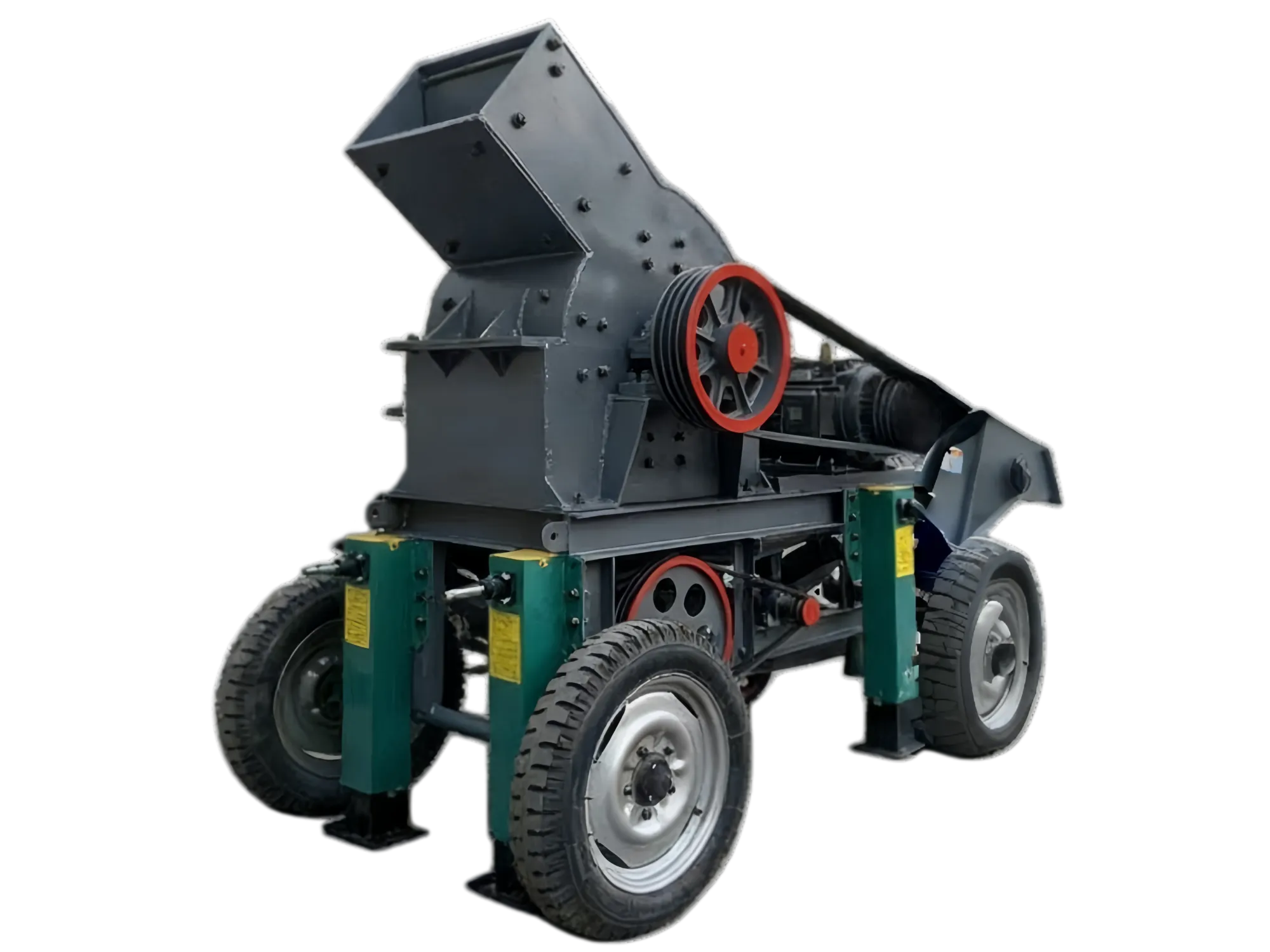

The 400×600 hammer sand making machine is a compact fine crushing equipment. It adopts high manganese steel hammer heads to crush stones into 0-5mm artificial sand. Featuring sealed structure, low power consumption and easy maintenance. Suitable for cobblestone, limestone and construction waste.
The 400×600 hammer sand making machine is a small and medium-sized crushing & sand making equipment. It integrates crushing and shaping functions, producing high-quality artificial sand in one pass. This hammer mill features simple structure, low investment and flexible adjustment. It is widely suitable for cobblestone, limestone, basalt and other raw materials, perfect for block factories, small sand yards and building material processing plants.
Technical Item | Parameter Data |
|---|---|
Model | 400×600 Hammer Crusher |
Max Feeding Size | ≤50 mm |
Discharge Size | 0–5 mm (Adjustable) |
Processing Capacity | 10–25 t/h |
Motor Power | 37 kW |
Hammer Material | High Manganese Steel |
This hammer sand maker consists of heavy-duty rotor, wear-resistant hammer head, lining plate, adjustable sieve plate, feed inlet and discharge outlet. The overall structure is sealed to reduce dust emission. The replaceable wearing parts make daily maintenance easier and lower operational cost.
The high-speed rotating hammer head continuously strikes raw materials. Stones collide with the internal lining plate to achieve secondary crushing. Materials are ground into fine sand through the sieve plate. Particle size can be controlled by adjusting the gap of the bottom sieve plate to meet different sand production requirements.
Sand & Stone Integrated: One machine for fine crushing and sand making.
Uniform Grain Shape: Cubic finished sand, good gradation for concrete block.
Low Consumption: Energy-saving motor and durable hammer heads.
Sealed Structure: Reduce dust pollution, environmentally friendly.
Easy Maintenance: Quick replacement of wearing parts, simple operation.
Ideal for block factories, sand aggregate plants, construction waste recycling and small mineral processing. It is suitable for making building sand, road bedding materials, concrete raw materials. Perfect supporting equipment for crushing and screening production lines.
