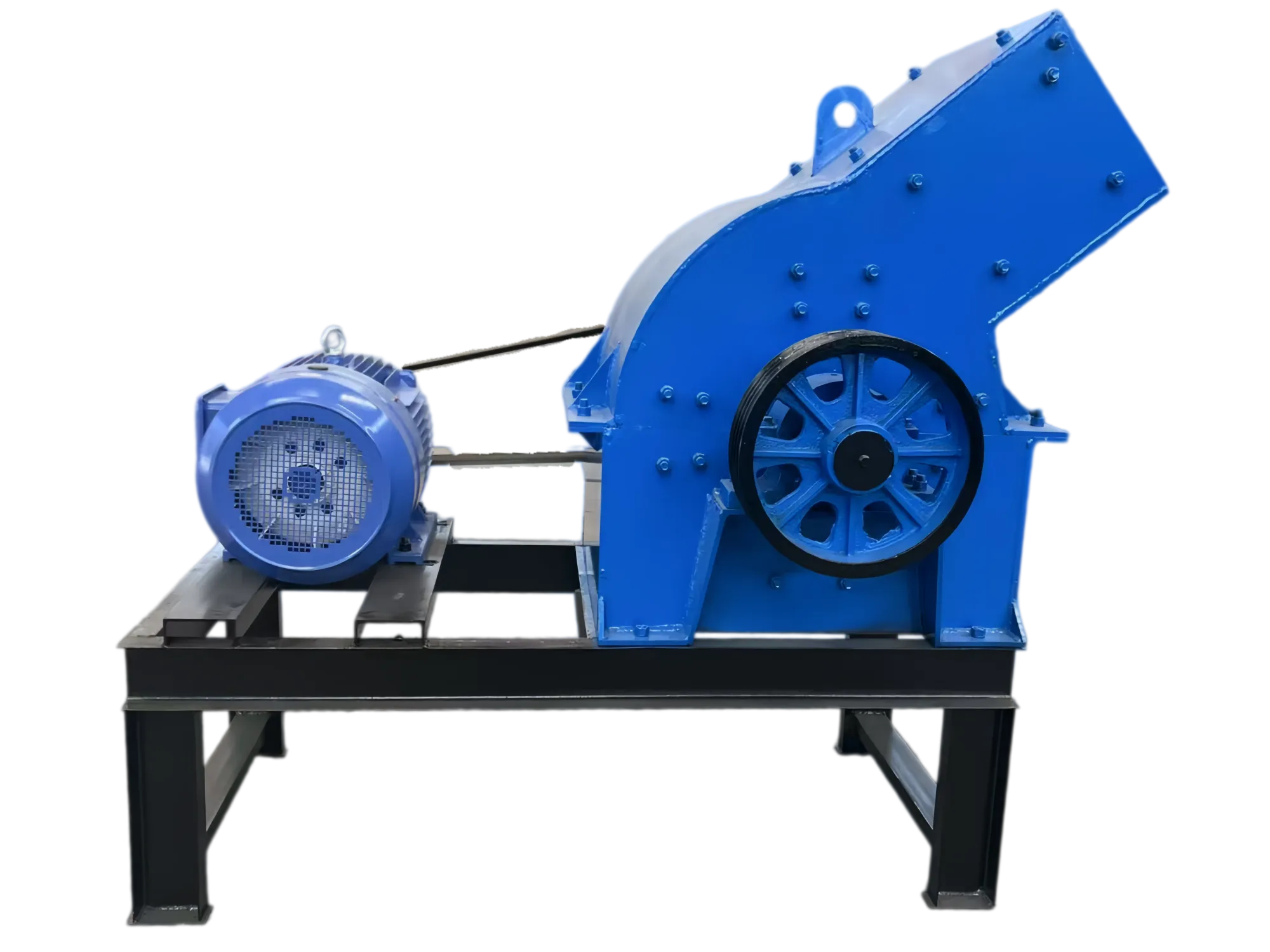

PC600*600 Hammer Crusher

1. Product Introduction

The 600x600 industrial hammer crusher is a professional medium and fine crushing equipment designed for global industrial processing projects. Powered by a robust 30kW heavy-duty motor and fitted with 24 high-precision alloy hammer blades, this hammer milling machine effortlessly processes bulk raw materials up to 20cm in size and delivers consistent finished particles of 5mm or less. Built with a standard 600×360mm wide feed opening and reinforced 600x600 crushing chamber, the equipment features a scientific crushing structure, high crushing ratio, stable running performance and excellent finished particle uniformity. Widely adopted in mining processing, construction waste recycling, coal processing and chemical raw material crushing, this 30kW hammer mill is a reliable, low-cost and high-efficiency crushing solution for overseas industrial buyers and project contractors.

2. Complete Technical Specifications

We provide full and accurate technical parameters that comply with international industrial standards, supporting one-stop B2B purchasing and project matching:

3. Product Features & Detailed Advantages

3.1 30kW Full Copper Motor, Stable Continuous Operation

Matched with a high-quality 30kW full-copper industrial motor, this 600x600 hammer crusher delivers stable high torque output. It supports long-term 24-hour continuous industrial operation, effectively crushes 20cm large lump materials without stalling, overload or shutdown. The motor features low heat generation, low failure rate and strong power reserve, ensuring high production efficiency for your project.

3.2 24 Alloy Hammers, Higher Crushing Efficiency & Durability

Equipped with 24 uniformly arranged wear-resistant alloy hammers inside the 600x600 crushing cavity, the machine forms an all-round three-dimensional crushing system. Compared with ordinary hammer crushers with fewer hammers, it realizes faster material grinding, more uniform particle size and lower wear degree. The high-hardness hammer body resists strong impact and friction, greatly extending service life and reducing daily replacement and maintenance costs.

3.3 Precise Fine Crushing, Stable Output Below 5mm

This heavy-duty hammer mill is specially optimized for fine crushing demands. It can process 20cm large raw materials into uniform fine particles of 5mm or less in a single crushing process. The replaceable screen mesh design allows flexible adjustment of discharge fineness, ensuring no coarse residue and qualified finished particle size, perfectly meeting the standards of material sales, deep processing and resource recycling.

3.4 Large 600×360mm Feed Inlet, Anti-blocking Feeding

The 600×360mm oversized wide feed inlet perfectly adapts to 20cm large lump material feeding. It avoids material accumulation, jamming and intermittent feeding problems existing in small-inlet crushers. The optimized cavity feeding angle ensures smooth and fast feeding, greatly improving overall production capacity.

3.5 Thickened 600x600 Crushing Chamber, Stronger Structure

Adopting integral thickened welding process, the 600×600mm crushing chamber has high impact resistance and pressure resistance. The material self-collision crushing principle reduces direct hammer wear and improves fine crushing effect. The whole machine body is sturdy and durable, suitable for high-intensity and harsh working conditions.

3.6 Dry & Wet Dual-Purpose Crushing, Wide Adaptability

With anti-sticking and anti-blocking structural design, the machine can crush both dry materials and high-humidity wet materials. It will not stick to the cavity or block the screen, adapting to various complex working environments in different countries and industries, with extremely high practical value.

4. Working Principle

After startup, the 30kW motor drives the rotor and 24 internal hammers to rotate at high speed. Bulk materials within 20cm are fed into the 600×360mm inlet and enter the 600x600 crushing chamber. The high-speed rotating alloy hammers produce strong impact, shear and grinding force to crush raw materials. Meanwhile, materials collide with the cavity lining plate and squeeze each other to complete secondary fine crushing. Qualified particles below 5mm pass through the screen and discharge out of the machine, while unqualified large particles remain in the chamber for repeated crushing until reaching the required fineness.

5. Application Scenarios

• Mining Industry: Fine crushing of limestone, gypsum, quartz stone and various mineral slags

• Construction Waste Recycling: Crushing waste bricks, waste tiles, concrete residues and construction aggregates

• Coal & Gangue Processing: Raw coal crushing, coal gangue fine grinding, coal powder production

• Chemical Industry: Crushing block chemical raw materials and industrial auxiliary materials

• Solid Waste Recycling: Recycling and reprocessing of industrial waste residue and tailings

6. Why Choose Our 600x600 Hammer Crusher

• Standard industrial configuration: 600x600 chamber, 30kW motor, 24 hammers, fully compliant with international export standards

• Excellent fine crushing effect: one-time molding below 5mm, uniform particle size

• Durable alloy hammer and thickened body, low maintenance cost

• Factory direct sales with competitive export price

• Complete export packaging, technical support and after-sales service
