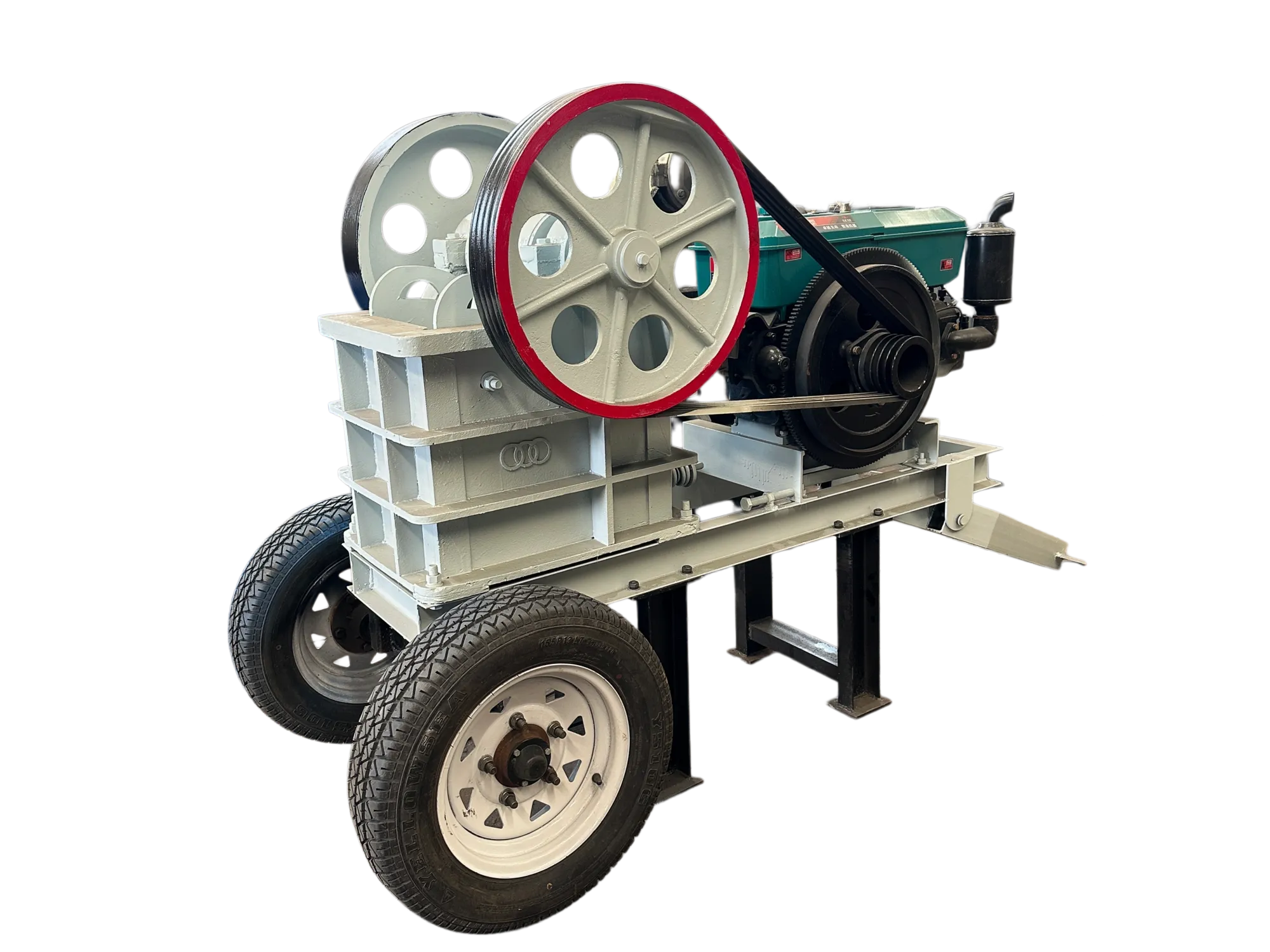

PE 150*250 Jaw Crusher

Product Overview

PE150×250 diesel jaw crusher is a mini mobile primary crushing equipment specially designed for areas without stable power supply. Different from electric jaw crusher, it is driven by diesel engine, completely free from power grid limitation. With compact structure, flexible movement and low operating cost, it is widely used in small mining, rural road construction, river stone processing, construction waste recycling and ore sample crushing. It is the preferred small crushing machine for individual users and small engineering teams.

Main Technical Parameters

• Model: PE150×250 Diesel Jaw Crusher

• Feed opening size: 150*250mm

• Max feeding size: 125mm

• Discharge opening range: 10-40mm (adjustable)

• Production capacity: 1-3 tons per hour

• Matched diesel engine: 18-22 HP single-cylinder diesel engine

• Working speed: 250-268r/min

• Total weight: about 1500kg

• Overall dimension: 1000×870×990mm

• Movement mode: wheel type mobile, convenient to drag and transfer

Material Application

It can crush various medium and hard materials, including granite, limestone, bluestone, river pebble, basalt, coal gangue, concrete block, brick waste and all kinds of metal ores. Suitable for materials with compressive strength not higher than 350MPa, uniform discharging particle size, good crushing effect.

Product Advantages

1. Diesel power free of electricity: Start quickly, work normally in remote mountains, wild fields and no-power sites, no power wiring trouble.

2. Easy to move freely: Equipped with walking wheels, short-distance manual moving and long-distance vehicle traction are available, flexible site switching.

3. Durable and wear-resistant: Thickened fuselage and high manganese steel jaw plate, strong impact resistance, long service life, less wearing parts replacement.

4. Simple operation & low cost: Easy to learn operation, stable running performance, low diesel consumption, low later maintenance cost.

5. Adjustable finished particle size: The discharge gap can be adjusted freely to meet different finished material size requirements.

6. Small footprint: Compact overall design, easy to place and store, suitable for narrow working space.

Working Principle

The diesel engine transmits power to the eccentric shaft to drive the movable jaw plate to do reciprocating swing movement. When the movable jaw plate approaches the fixed jaw plate, the materials inside the crushing cavity are squeezed, rubbed and crushed; when the movable jaw plate moves away, the crushed materials fall down and discharge from the bottom outlet, and continuous circulation realizes continuous stone crushing operation.

Usage Scenarios

1. Rural village road hardening, foundation construction stone processing

2. Small river pebble screening and crushing processing

3. On-site crushing and reuse of construction waste

4. Small mine field ore preliminary crushing and ore sampling

5. Remote area temporary construction aggregate processing

6. Family small sand and gravel processing business

Packing & Shipment

Standard export wooden box or iron frame packing, firm and anti-collision, suitable for sea and land long-distance transportation. Complete accessories and operation manual are provided, supporting multi-country door-to-door delivery, and professional after-sales guidance is available.

PE150×250 diesel driven jaw crusher is portable mini stone crushing machine without electric power needed. Equipped with high power diesel engine, it features stable performance, adjustable discharge size and low fuel consumption. Widely used for crushing river stone, granite, limestone, construction waste and various ores. Mobile wheel design makes it easy to move for outdoor and remote site work, ideal choice for small construction and mining projects worldwide.
