TECHNICAL SPECIFICATION
Ref: PE-200-300-JAW-CRUSHER

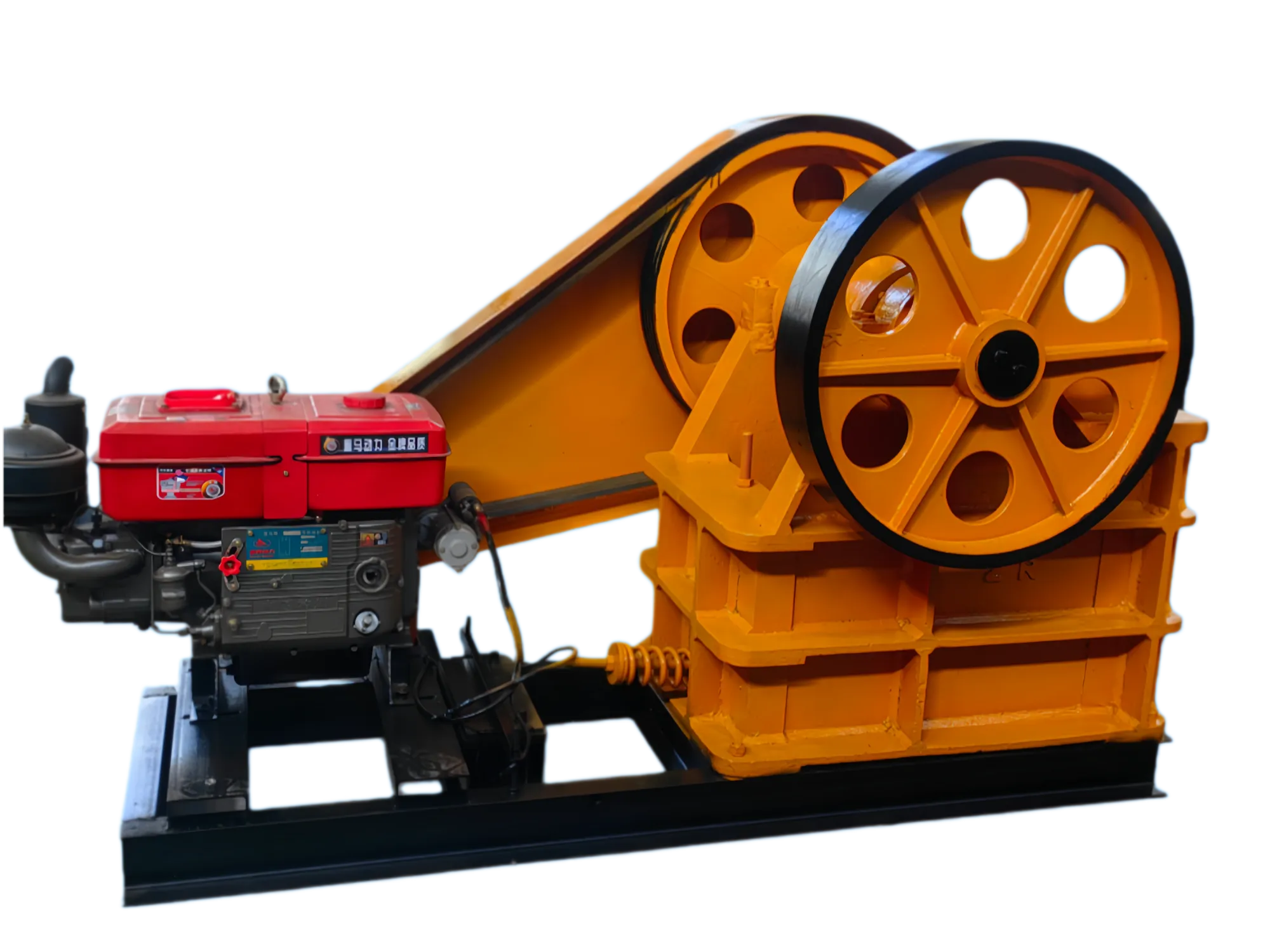

PE 200*300
The PE200x300 mobile jaw crusher is a ultra-compact, energy-saving diesel crushing unit equipped with a reliable 15HP diesel engine. Featuring a 200x300mm feed opening, it delivers stable 3-6 tons per hour output with 5-40mm adjustable discharge size. Integrated mobile chassis design requires no ins
The PE200x300 mobile jaw crusher powered by 15HP diesel engine is a mini portable crushing equipment designed for ultra-small-scale crushing projects and personal household stone processing. Adopting an all-in-one mobile chassis structure, the machine is lightweight, easy to move and requires no foundation installation, enabling immediate startup after arriving at the working site. The matched 15HP diesel power system completely breaks free from grid power dependence, perfectly adapting to remote mountain areas, field construction sites and areas without stable power supply.
With a standard 200×300mm feed opening, this mini jaw crusher can process raw stones below 160mm. It features low fuel consumption, low failure rate and ultra-high cost performance, being the best choice for personal small quarry investment, rural road maintenance, small construction waste treatment and auxiliary stone processing projects.
Item | Specification |
Model | PE200×300 Mobile Jaw Crusher |
Feed Opening Size | 200×300mm |
Max Feed Size | ≤160mm |
Discharge Size Range | 5–40mm (adjustable) |
Production Capacity | 3–6 Tons Per Hour |
Power Configuration | 15HP Single Cylinder Diesel Engine, 7.5KW Electric Motor (Optional) |
Overall Weight | 1200–1500kg |
Working Mode | Mobile walking type, portable flexible crushing |
The supporting 15HP single-cylinder diesel engine is a professional energy-saving power unit for mini jaw crushers. It features low fuel consumption, stable power output, easy startup and low maintenance cost. This diesel engine adapts to various harsh outdoor working conditions, supports long-hour intermittent continuous operation, and has an extremely low failure rate. It completely solves the power supply dilemma of small outdoor crushing operations, ensuring stable and efficient work progress without grid electricity.
This PE200x300 mini jaw crusher adopts an integrated lightweight mobile design, combining the crusher main body, 15HP diesel engine unit, walking chassis and fixed support legs as a whole. The ultra-light body realizes free on-site movement and quick transition between working areas, without complicated disassembly, installation and debugging. It is the most flexible small crushing equipment for temporary and mobile stone processing work.
Equipped with a flexible discharge size adjustment device, the machine can produce different specifications of aggregate materials, fully meeting the grading requirements of small construction projects, road bedding and recycled concrete aggregates.
⛽ 15HP Independent Diesel Power: No grid electricity required, free outdoor operation, perfectly suitable for remote and powerless construction sites.
🚜 Ultra-Compact Mobile Design: Lightweight body, flexible walking structure, no foundation installation needed, ready to use after moving.
📏 Adjustable Crushing Particle Size: 5-40mm adjustable discharge size, diverse finished specifications, flexible to meet different crushing needs.
💡 Energy-Saving & Cost-Effective: Matched with low-consumption 15HP diesel engine, low operating cost and high economic return for small projects.
🛡️ Wear-Resistant & Durable: Adopts high-manganese steel wear-resistant jaw plate and reinforced fuselage, pressure-resistant and long service life.
🔧 Easy Operation & Maintenance: Simple mechanical structure, intuitive operation, single-person operation and convenient daily maintenance.
🪨 Wide Material Adaptability: Able to crush limestone, river pebble, bluestone, small ore, concrete, construction waste and other hard brittle materials.
The PE200x300 15HP diesel mobile jaw crusher is widely applied in rural road maintenance, small-scale construction waste recycling, personal mini quarry processing, farmland infrastructure renovation, small water conservancy projects and temporary site stone crushing. It is the preferred mini crushing equipment for individual users and small engineering teams.
