TECHNICAL SPECIFICATION
Ref: PE-300-500JAW-CRUSHER

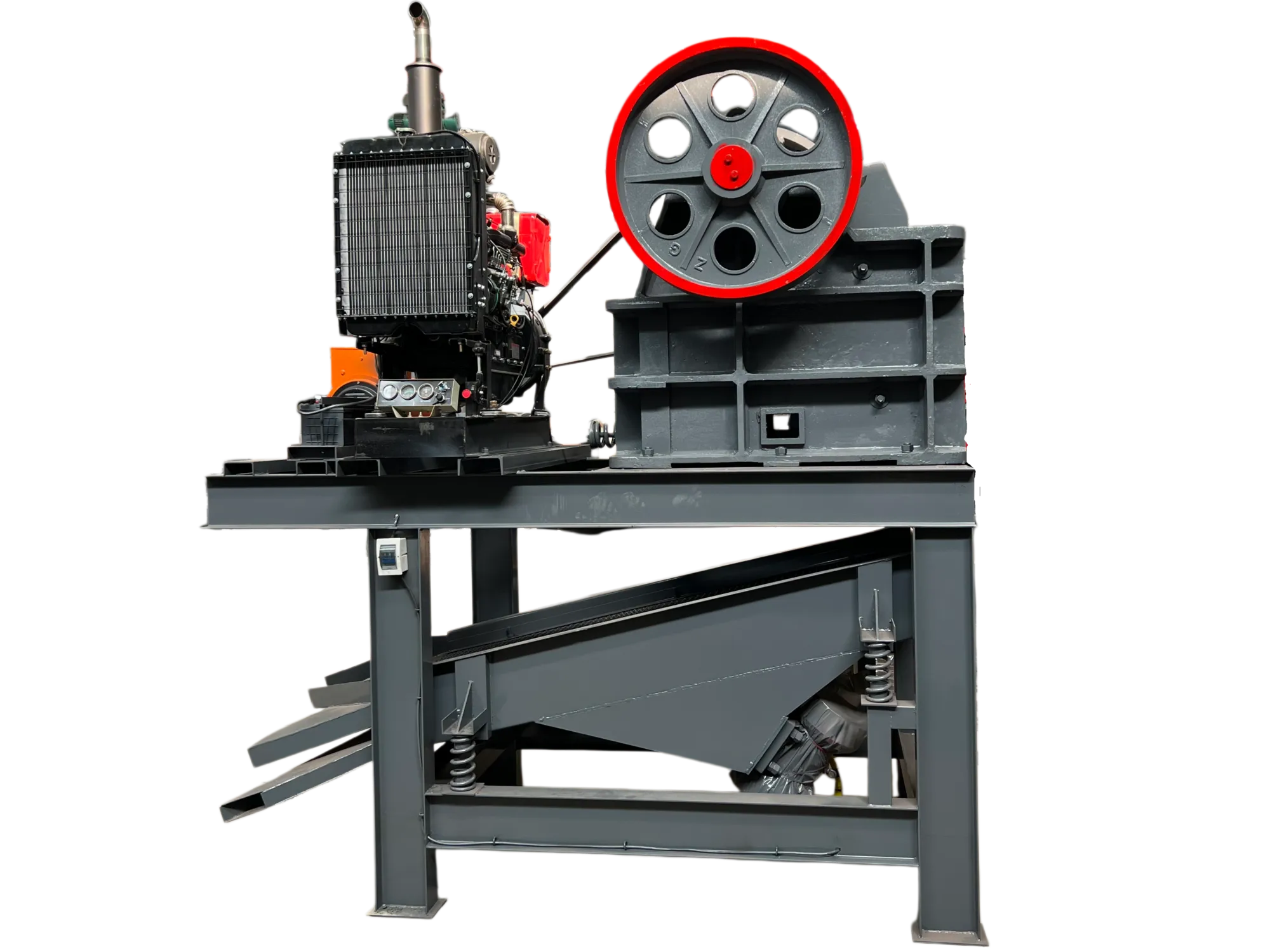

PE 300*500
The PE300x500 jaw crusher with vibrating screen is a compact diesel-driven crushing and grading machine powered by a reliable 4105 diesel engine. Featuring a 300x500mm feed opening, it delivers 15-30t/h stable output with adjustable 10-70mm discharge size. Integrated vibrating screen realizes one-st
The PE300x500 jaw crusher with vibrating screen is a compact, high-efficiency primary crushing and screening solution designed for small and medium-scale mining, quarrying, road construction, and concrete recycling projects. Equipped with a reliable 4105 diesel engine, this stone crushing unit works perfectly in areas without stable electric power, solving power supply limitations for on-site crushing operations. The integrated vibrating screen realizes one-stop crushing and grading, producing uniform finished stone sizes without extra screening equipment.
With a standard 300×500mm feed opening, the machine handles raw stones with a maximum feed size of 250–280mm. It features a large crushing ratio, stable output, simple structure, and low operating cost, becoming the most popular portable crushing equipment for rural road construction, small quarry sites, and temporary engineering projects.
Item | Specification |
|---|---|
Model | PE300×500 Jaw Crusher with Vibrating Screen |
Feed Opening Size | 300×500mm |
Max Feed Size | ≤280mm |
Discharge Size Range | 10–70mm (adjustable) |
Production Capacity | 15–30 Tons Per Hour |
Power Configuration | 4105 Four-cylinder Diesel Engine, 22KW Electric Motor (Optional) |
Overall Weight | 2300–3200kg |
Working Mode | Integrated crushing, screening and grading |
The matched 4105 diesel engine is a well-known four-cylinder power unit for small crushing equipment. It delivers stable power output, low fuel consumption, low failure rate, and strong adaptability to harsh working environments. The engine supports long-hour continuous operation, effectively avoiding shutdowns caused by power cuts, making the machine ideal for remote mountain areas, field construction sites, and areas without grid electricity.
Different from ordinary single jaw crushers, this PE300x500 crushing unit is equipped with a professional vibrating screen grader. After primary crushing, unqualified large particles are screened out and circulated for secondary crushing, while standard-size aggregates are discharged as finished products. This one-piece design realizes crushing, screening, and grading in one process, greatly improving production efficiency and finished stone quality.
Users can replace screen meshes with different apertures to obtain various aggregate sizes (10–20mm, 20–40mm, 40–70mm), meeting different construction and aggregate standards.
Diesel Electric Dual Usable: Standard 4105 diesel engine drive, support custom electric motor drive, flexible for different site conditions.
All-in-one Design: Integrates crusher, vibrating screen, engine base, and discharge conveyor, saving installation time and site space.
High Crushing Efficiency: Large 300×500mm feed inlet, uniform crushing particle size, high output per hour.
Durable Structure: Thickened jaw plates, cast steel body, wear-resistant parts, long service life, low maintenance cost.
Easy Movement & Operation: Compact structure, lightweight, easy to move between working sites, one-person operation available.
Wide Material Adaptability: Can crush granite, limestone, river pebble, basalt, ore, construction waste, concrete, and other hard brittle materials.
The PE300x500 diesel jaw crusher with vibrating screen is widely used for small quarry crushing, road and highway construction, railway engineering, water conservancy project, construction waste recycling, and rural infrastructure renovation. It is the best choice for small aggregate production, temporary construction stone processing, and mobile crushing jobs.
