TECHNICAL SPECIFICATION
Ref: PE150-250-JAW-CRUSHER
PE150*250

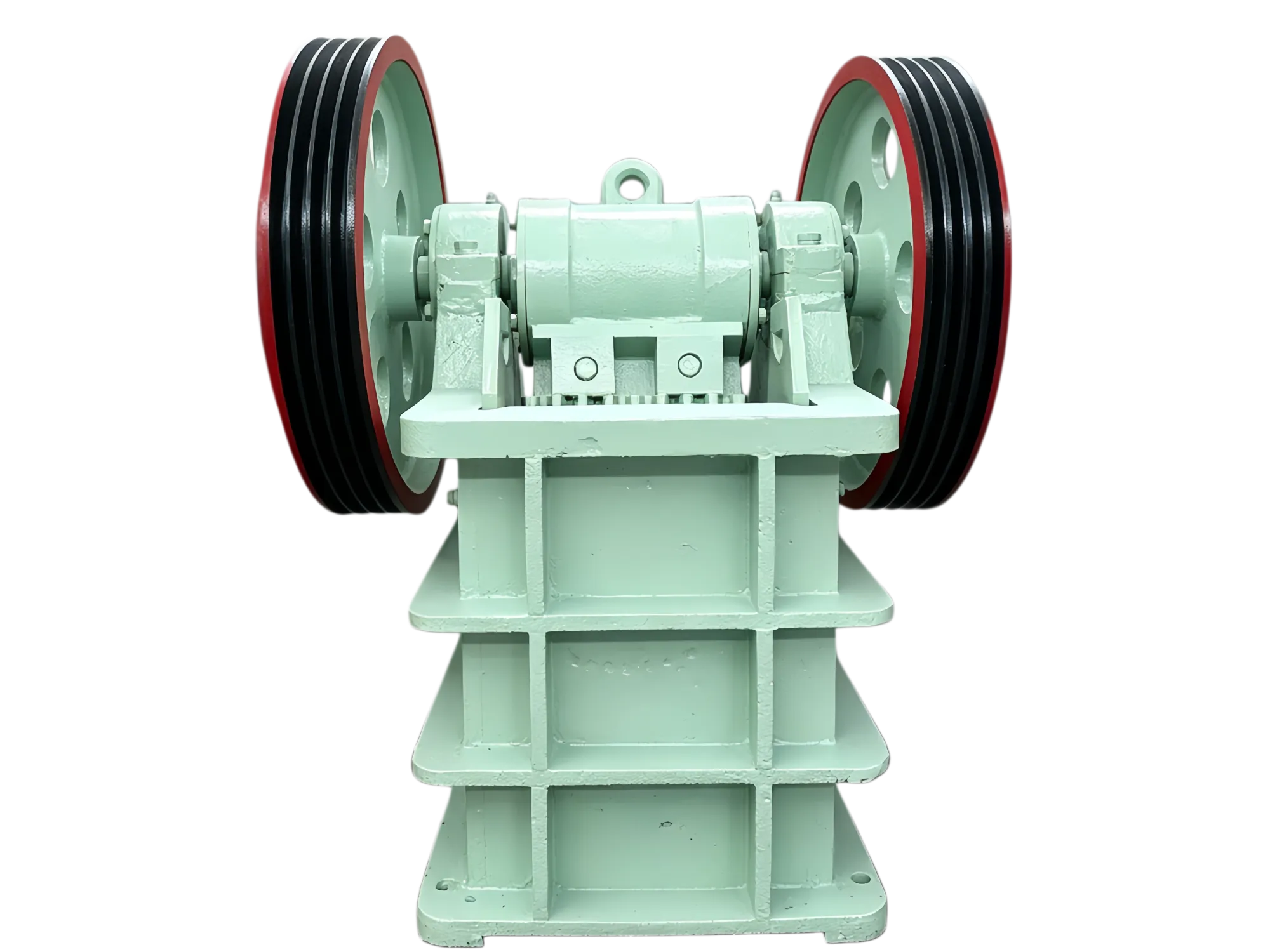

PE150×250 jaw crusher is a small-sized primary crushing machine, specially designed for small-scale mining, construction waste recycling and laboratory use. It features compact structure, easy installation and operation, high crushing ratio, and can efficiently crush various low-to-medium hardness m
The PE150×250 jaw crusher is a high-performance small primary crusher, which is widely used in small mines, quarries, construction sites, construction waste recycling plants and laboratory crushing operations. It is mainly used for the primary crushing of materials with medium and low hardness, such as granite, limestone, river stone, basalt, concrete, coal and other ores and wastes.
Compact structure: Small volume, light weight, easy to transport and install, suitable for narrow space and on-site crushing operations.
High crushing efficiency: Optimized jaw plate design, large crushing ratio, uniform product particle size, effectively improving production efficiency.
Durable and wear-resistant: Adopts high-quality high-manganese steel jaw plates and wear-resistant components, which have strong wear resistance and long service life.
Easy operation and maintenance: Simple structure, convenient operation, low failure rate, and easy daily maintenance and parts replacement, reducing use cost.
Energy-saving and environmental protection: Low power consumption, low noise, low dust emission, in line with environmental protection production standards.
Item | Specification |
|---|---|
Feed Opening Size | 150×250mm |
Maximum Feed Size | 125mm |
Discharge Size Range | 10-40mm (adjustable) |
Production Capacity | 1-3 t/h |
Motor Power | 5.5-7.5kW |
Overall Dimension (L×W×H) | 1200×750×900mm (approx.) |
Weight | About 800kg |
It is widely used in small-scale crushing projects, such as small mining, building demolition, road construction, bridge construction, construction waste recycling, chemical industry, metallurgy, laboratory sample crushing, etc. It can crush various materials such as granite, limestone, river stone, basalt, concrete block, coal, ore, etc., and the crushed products can be used as aggregate for concrete, mortar, roadbed filling, etc.
