TECHNICAL SPECIFICATION
Ref: PE150-250-JAWCRUSHER
PE150*250

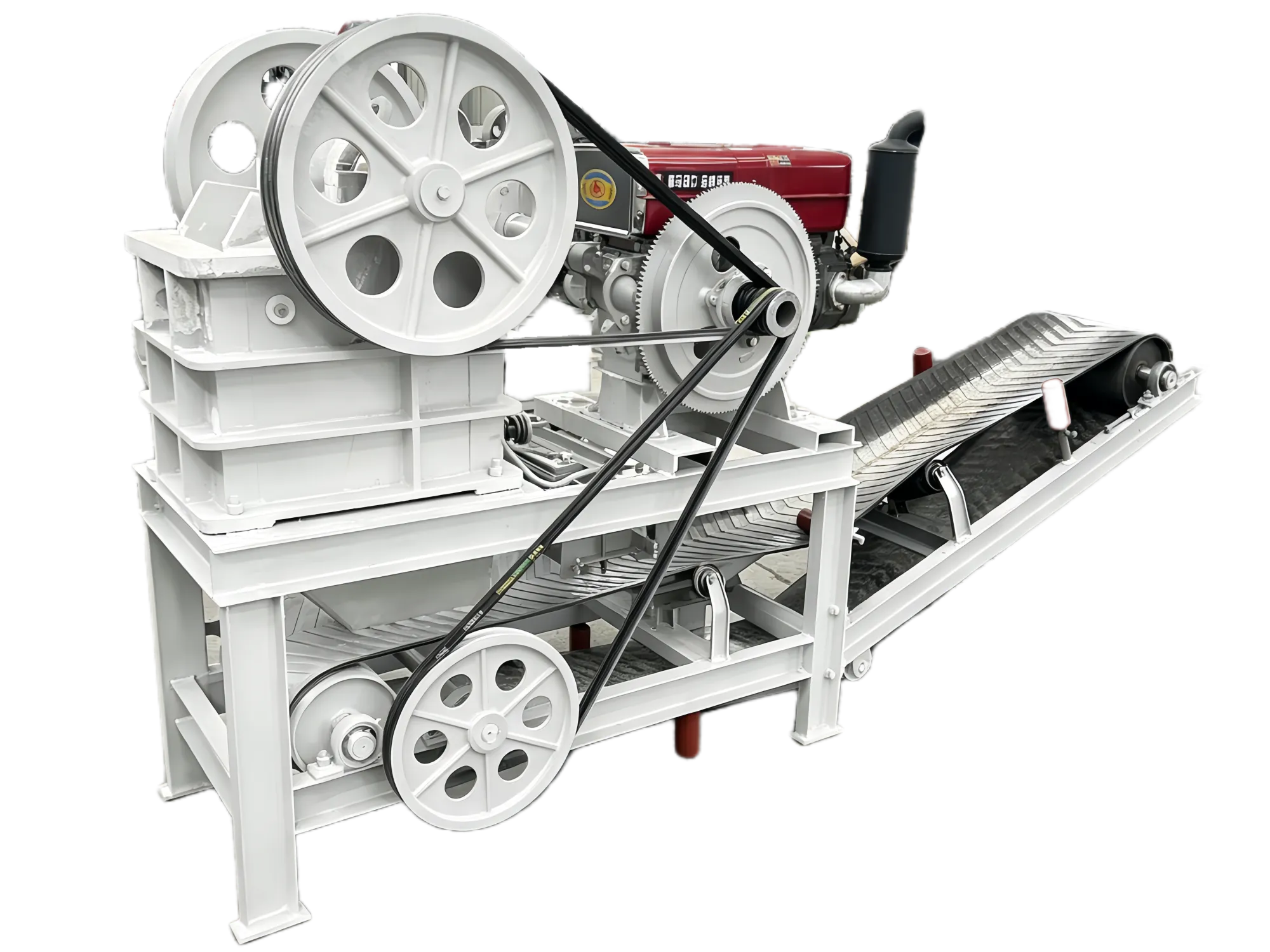

This 150x250 diesel jaw crusher is equipped with a 15HP diesel engine and a 3m conveyor belt, featuring a 150×250mm feeding inlet and stable processing capacity of 3-4 tons per hour. It is a portable all-in-one crushing unit that requires no electric power supply. Ideal for crushing river stone,
This 150×250mm diesel-powered jaw crusher set is a fully integrated mobile crushing solution equipped with a 15HP diesel engine and a 3-meter conveyor belt. Designed for small-scale rock crushing, stone recycling, and on-site aggregate processing, the machine delivers a stable processing capacity of 3-4 tons per hour. Unlike electric-only crushers, this diesel-driven unit requires no external power supply, perfectly adapting to remote construction sites, mountain areas, farmland renovation projects, and temporary mining operations without electricity access.
Compact in structure, easy to operate and maintain, this all-in-one crushing and conveying system is the ideal entry-level crushing equipment for individual contractors, small processing plants, and engineering teams focusing on low-cost, high-flexibility stone crushing work.
Main Crusher Host: PE150×250 jaw crusher, standard feeding inlet size 150×250mm, durable jaw plate and heavy-duty frame, strong compression and crushing force
Power System: Matched 15HP high-performance diesel engine, sufficient power output, stable operation, low fuel consumption, no dependence on commercial electricity
Supporting Conveyor: Equipped with 3-meter finished material conveyor belt, realizing automatic material feeding and discharging, saving manual labor and improving continuous working efficiency
Powered by a 15HP professional diesel engine, the equipment starts quickly and runs stably. It completely gets rid of the limitation of fixed power supply, enabling normal crushing operation in field construction, remote mountainous areas, road repair sites and other scenarios where electricity is unavailable or unstable. The engine features low noise and low fuel consumption, reducing long-term operating costs.
The 150×250mm standard feeding inlet supports a maximum feeding particle size of 125mm. The discharge particle size can be adjusted freely within a conventional range to produce different specifications of crushed stone and gravel. The hourly processing capacity stably reaches 3-4 tons, with uniform finished material particle size and low over-crushing rate, meeting the basic aggregate demand for construction, road paving and concrete processing.
The complete set integrates crushing host, diesel power unit and 3m conveyor belt. After crushing, the finished materials are automatically transported and stacked by the conveyor, avoiding manual material handling. The continuous assembly line operation greatly improves work efficiency and reduces labor input, realizing one-person independent operation.
The jaw crusher adopts high-manganese steel wear-resistant jaw plates, which are resistant to impact and wear, with long service life. The overall mechanical structure is simple, with few vulnerable parts. Daily maintenance only needs regular oil replacement and jaw plate inspection, no complex professional operation, greatly reducing later maintenance difficulty and cost.
Small body size, light overall weight, easy to move and transport. It can be quickly deployed to various temporary construction sites, suitable for small-scale stone crushing, ore preliminary crushing, construction waste recycling, road and railway foundation stone processing, farmland land leveling and other projects.
Item | Parameter |
|---|---|
Model | PE150×250 Diesel Jaw Crusher |
Feeding Inlet Size | 150×250mm |
Max Feeding Particle Size | 125mm |
Processing Capacity | 3-4 Tons Per Hour |
Matching Power | 15HP Diesel Engine |
Supporting Equipment | 3m Finished Material Conveyor Belt |
Discharge Particle Size Range | Adjustable (Customizable) |
Application Materials | Limestone, Granite, Basalt, River Stone, Construction Waste, Iron Ore, etc. |
Small Construction Projects: On-site crushing of foundation stone, road paving aggregate, and concrete raw materials for rural construction, road maintenance, and bridge auxiliary projects
Quarry & Mining: Preliminary coarse crushing of small ores, stone material processing for small quarries
Construction Waste Recycling: Crush waste concrete, brick and stone materials for secondary recycling and reuse
Field Unpowered Operation: Mountainous area construction, remote engineering projects, temporary operation sites without grid power supply
Package Content: Complete set of 150×250 jaw crusher host + 15HP diesel engine + 3m conveyor belt + standard accessories and operating tools.
Service Guarantee: Strict factory inspection before shipment, complete product manuals and installation tutorials. Provide long-term technical consultation and after-sales support, vulnerable parts supply service, to ensure customers can install, debug and use the equipment smoothly.
