TECHNICAL SPECIFICATION
Ref: PE200-300-JAW-CRUSHER

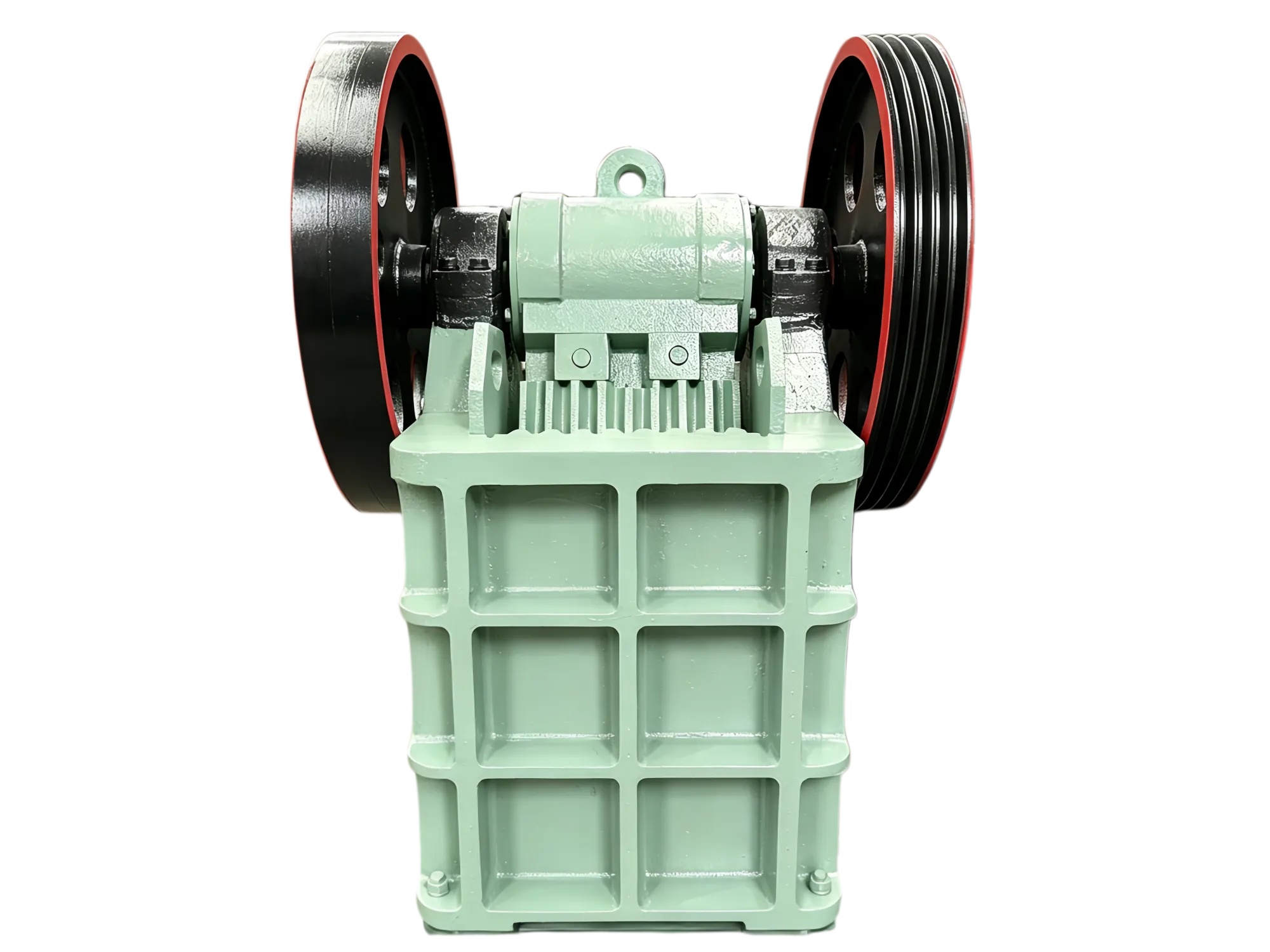

PE200*300
The PE 200×300 jaw crusher is a compact, robust primary crushing solution ideal for small-scale mining, construction waste recycling, and aggregate production. With a 200×300mm feed opening, it processes materials up to 180mm, delivering adjustable 15-70mm output at 3-10 t/h. Powered by a 7.5kW moto
PE200×300 jaw crusher is a popular small-sized primary crushing machine in the PE series. It is designed for low investment, easy operation, and durable heavy-duty crushing performance. This mini jaw crusher is widely used for small mining, laboratory testing, construction waste recycling, stone crushing, and material sample crushing. With compact structure, stable mechanical performance, and low energy consumption, the PE200*300 jaw crusher becomes the best choice for beginners, small crushing plants, and portable crushing projects.
Compact & Lightweight Structure: The whole machine weighs only 1.2 tons, easy to install, move and transport, no complicated foundation required.
Adjustable Discharge Size: Discharge gap ranges from 15mm to 50mm, one machine meets different particle size requirements.
High Wear Resistance: Jaw plate adopts high manganese steel Mn13, strong compression resistance, long service life.
Simple Mechanical Design: Reliable eccentric shaft, stable rotation, low failure rate, easy maintenance.
Low Energy Consumption: Equipped with 7.5KW standard motor, energy-saving and cost-effective.
Wide Application: Suitable for granite, limestone, basalt, ore, rock, concrete waste and other hard materials.
Item | Parameter |
|---|---|
Model | PE200×300 |
Feed Opening Size | 200×300 mm |
Max Feeding Size | ≤180 mm |
Discharge Adjustment Range | 15-50 mm |
Capacity | 2-6 t/h |
Eccentric Shaft Speed | 260 r/min |
Motor Power | 7.5 KW, 4P |
Overall Dimension | 910×750×990 mm |
Total Weight | 1.2 Ton |
The PE200×300 jaw crusher uses motor power to drive the eccentric shaft, making the movable jaw plate perform periodic swinging movement. When the movable jaw plate approaches the fixed jaw plate, materials are squeezed, crushed and bent; when the movable jaw plate moves away, crushed materials fall down from the discharge port by gravity. Continuous feeding and cyclic movement realize batch stone crushing. Simple working principle ensures stable operation and easy daily inspection.
Small Mining Industry: Gold ore, iron ore, copper ore crushing.
Construction Waste Recycling: Concrete, brick, gravel crushing.
Laboratory Sample Testing: Small batch material crushing experiment.
Stone Factory: Limestone, granite, basalt, pebbles crushing.
Road & Building Construction: Small aggregate production.
Low Investment Cost: Affordable price, low transportation cost, suitable for startup buyers.
Easy Maintenance: Few wearing parts, convenient jaw plate replacement.
Stable Performance: Heavy-duty cast steel frame, long service life.
Flexible Usage: Can be used alone or matched with small vibrating screen and conveyor.
Fast Delivery: Factory direct supply, sufficient stock.
We use standard export wooden case or container packaging. The main machine, motor, wearing parts and accessories are packaged separately to avoid damage during long-distance transportation. We support sea shipping, land transportation, and customized shipping solutions. Professional loading and export service help customers receive goods safely.
12 months warranty for the whole machine.
Free wearing parts quotation and technical support.
24-hour online engineer guidance.
Customized processing solution according to customer materials.
