TECHNICAL SPECIFICATION

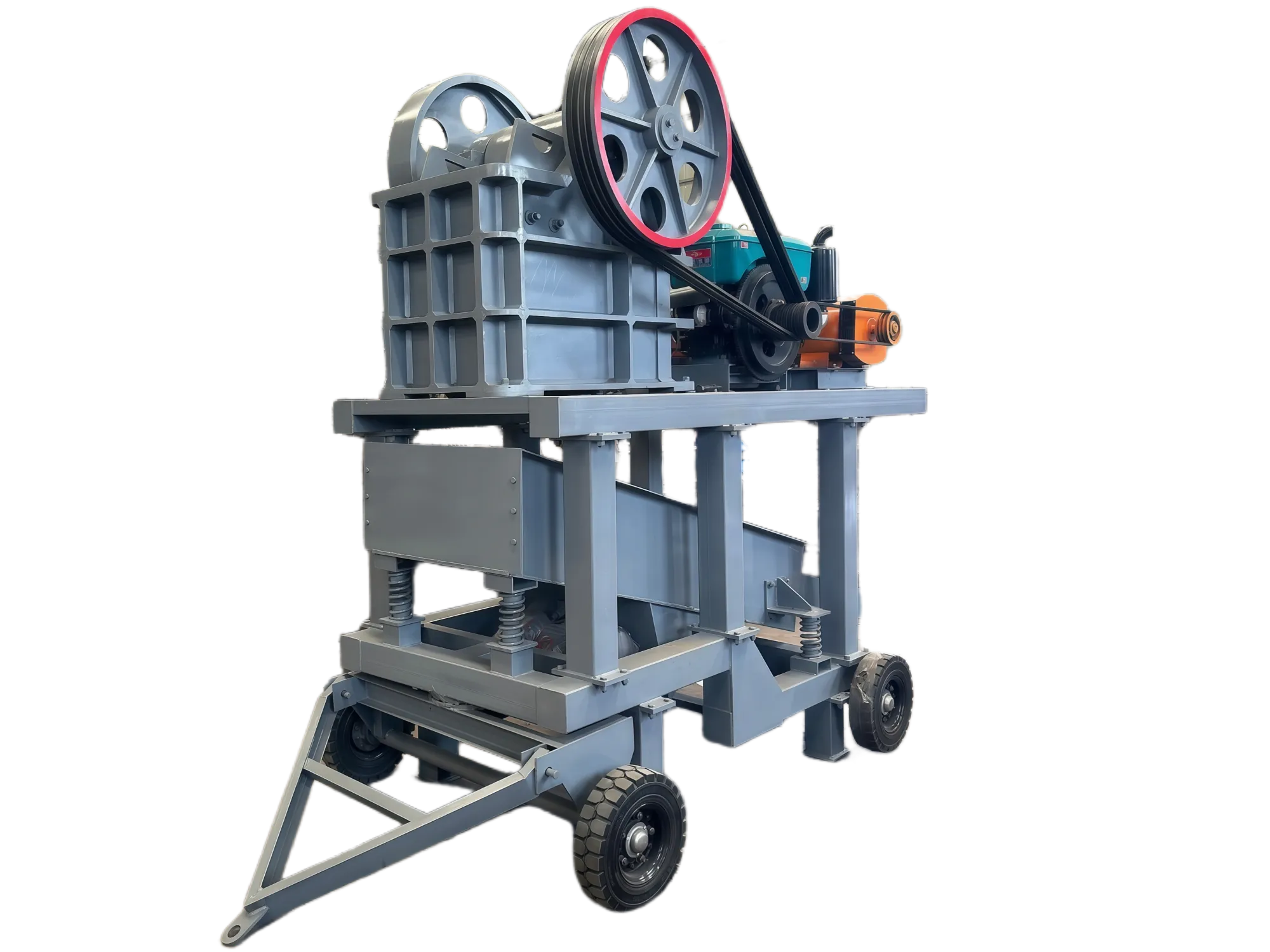

Ref: PE250-400JAW-CRUSHER-AND-SCREEN-COMBINATION-UNIT
PE250*400
250x400 jaw crusher screening all-in-one machine with 36HP diesel engine, mobile design integrates crushing and screening. It realizes one-stop stone crushing and multi-specification material grading, no electric power needed, ideal for outdoor mining, road construction and remote site gravel proces
Our 250x400 Jaw Crusher Screening Integrated Machine is a newly upgraded all-in-one crushing and screening equipment tailored for small and medium-sized mining, road construction, infrastructure renovation and construction waste recycling projects. Different from traditional separate crushing and screening equipment, this machine adopts anupper crushing + lower screening integrated integrated structure, perfectly combining the mature 250*400 jaw crushing host and high-efficiency vibrating screen. It completes raw material crushing, automatic screening and multi-particle size classification in one single process, eliminating the need for secondary conveying and separate screening equipment.
Powered by a high-performance 36HP diesel engine, the machine completely gets rid of the dependence on commercial electricity and fixed power distribution facilities. Equipped with a mobile walking base, the whole unit can be flexibly transferred between working sites. It features compact structure, low investment, high efficiency and multi-functional integration, which is the preferred portable crushing and screening equipment for small-scale quarry processing, rural road construction, temporary engineering projects and remote area stone processing.
Integrate professional jaw crusher and linear vibrating screen into one integrated unit. The upper 250x400 jaw crushing part is responsible for primary coarse crushing of raw stones, and the crushed materials directly fall into the lower vibrating screen through the automatic discharging system for layered screening and classification. The integrated design saves a lot of site space, avoids the purchase cost of independent screening equipment and conveyor equipment, and simplifies the whole production process. One machine replaces the traditional two sets of equipment, greatly reducing equipment investment and site layout costs for customers.
Equipped with a brand-new 36 horsepower high-torque diesel engine, with stable power output, strong power reserve and strong overload resistance. It can easily crush medium-hard materials such as granite, limestone, river pebbles, bluestone and ore. The diesel drive mode is completely independent of grid power supply, solving the problem of difficult power consumption and unstable voltage in remote mountainous areas, field operation sites and areas without power distribution. The engine is optimized for fuel economy, with low fuel consumption and low failure rate, ensuring long-term stable continuous operation of the equipment.
The whole machine adopts an integrated mobile chassis design, which is convenient for traction and transfer. It can move freely on construction sites, mountain roads and gravel roads without fixed installation and foundation pouring. After each site transfer, it can be put into production immediately without complicated debugging and assembly work, which greatly improves the construction efficiency. It is especially suitable for frequent site switching, temporary construction projects and scattered stone processing operations.
The matching high-frequency vibrating screen runs stably with large screening area and high screening efficiency. After crushing, the materials are automatically divided into multiple particle size specifications through screen mesh classification. The finished stone materials have uniform particle size, neat grading and no mixed materials, which can directly meet the material standards for highway construction, building concrete, gravel paving and other engineering uses. It effectively solves the problems of uneven material size and low finished product quality of traditional single crushers.
The key crushing parts are made of high-strength wear-resistant steel, with strong compression resistance and wear resistance, long service life of wearing parts. The whole machine has a simple and reasonable structural design, few vulnerable parts and convenient daily maintenance and overhaul. It avoids frequent shutdown and maintenance problems of complex equipment, reduces later operation and maintenance costs, and improves the overall production continuity.
This integrated crushing and screening machine can handle various common stone materials and construction waste. It is widely applicable to small and medium-sized quarries, road and bridge engineering, rural infrastructure construction, construction waste recycling, gravel yard processing, mine primary crushing and other scenarios. It can produce multiple specifications of finished sand and gravel at one time, with high production flexibility and comprehensive use value.
After the raw stone materials are fed into the feeding port, they are squeezed, impacted and crushed by the jaw crusher at the upper part of the equipment. The crushed materials that meet the discharge particle size will automatically fall down to the lower vibrating screen. Driven by the vibrating motor, the vibrating screen performs continuous layered screening, and separates the materials into different particle sizes according to the screen mesh standard. The qualified finished materials are discharged separately, and the unqualified large-particle materials can be re-crushed again, realizing one-stop closed-loop crushing and screening operation, which greatly improves the material utilization rate and production efficiency.
Item | Detailed Specification |
|---|---|
Product Model | 250x400 Mobile Jaw Crusher Screening Integrator |
Host Specification | Jaw Crusher 250*400mm |
Matching Power | 36HP Diesel Engine |
Maximum Feeding Size | ≤210mm |
Adjustable Discharge Size | 20-60mm (customizable) |
Supporting Equipment | High-efficiency Linear Vibrating Screen |
Working Mode | Integrated crushing + automatic screening one-time forming |
Moving Mode | Mobile Chassis, Flexible Traction Transfer |
Power Supply Mode | Full Diesel Drive, No External Power Supply Required |
Applicable Materials | Limestone, Granite, River Pebble, Basalt, Ore, Construction Waste, Bluestone etc. |
Application Scenarios | Mining, Road Construction, Infrastructure, Gravel Processing, Construction Waste Recycling |
Equipment Advantages | Energy-saving, High-efficiency, Mobile Portable, Labor-saving, Low Investment |
💰 1. Lower Investment Cost: One machine integrates crushing and screening functions, saving the purchase cost of separate equipment, conveyor and supporting facilities, with low entry threshold for small investors.
⚡ 2. Higher Production Efficiency: One-time feeding and one-time forming of finished materials, no secondary handling and processing, saving working time and labor costs, and improving overall output efficiency.
🌄 3. Strong Site Adaptability: Diesel drive + mobile design, free from site and power restrictions, can work in any outdoor and remote construction site, with extremely high flexibility.
🏆 4. High Finished Product Value: Accurate automatic screening, uniform particle size of finished gravel, meeting high-standard engineering use, effectively improving product market competitiveness.
🔧 5. Low Operation Cost: Fuel-efficient diesel engine + durable wear-resistant parts, low daily maintenance and replacement cost, higher economic benefit.
All equipment will be strictly inspected before delivery to ensure no failure and complete accessories. We adopt standard export wooden box/container packaging to avoid damage during long-distance transportation. We support sea freight, land freight and multi-mode transportation. We provide professional overseas after-sales service, including equipment installation guidance, operation training, fault consultation and lifelong technical support, helping customers use the equipment efficiently and stably for a long time.
