TECHNICAL SPECIFICATION
Ref: PE950CX-MOBILE-JAW-CRUSHER
PE950

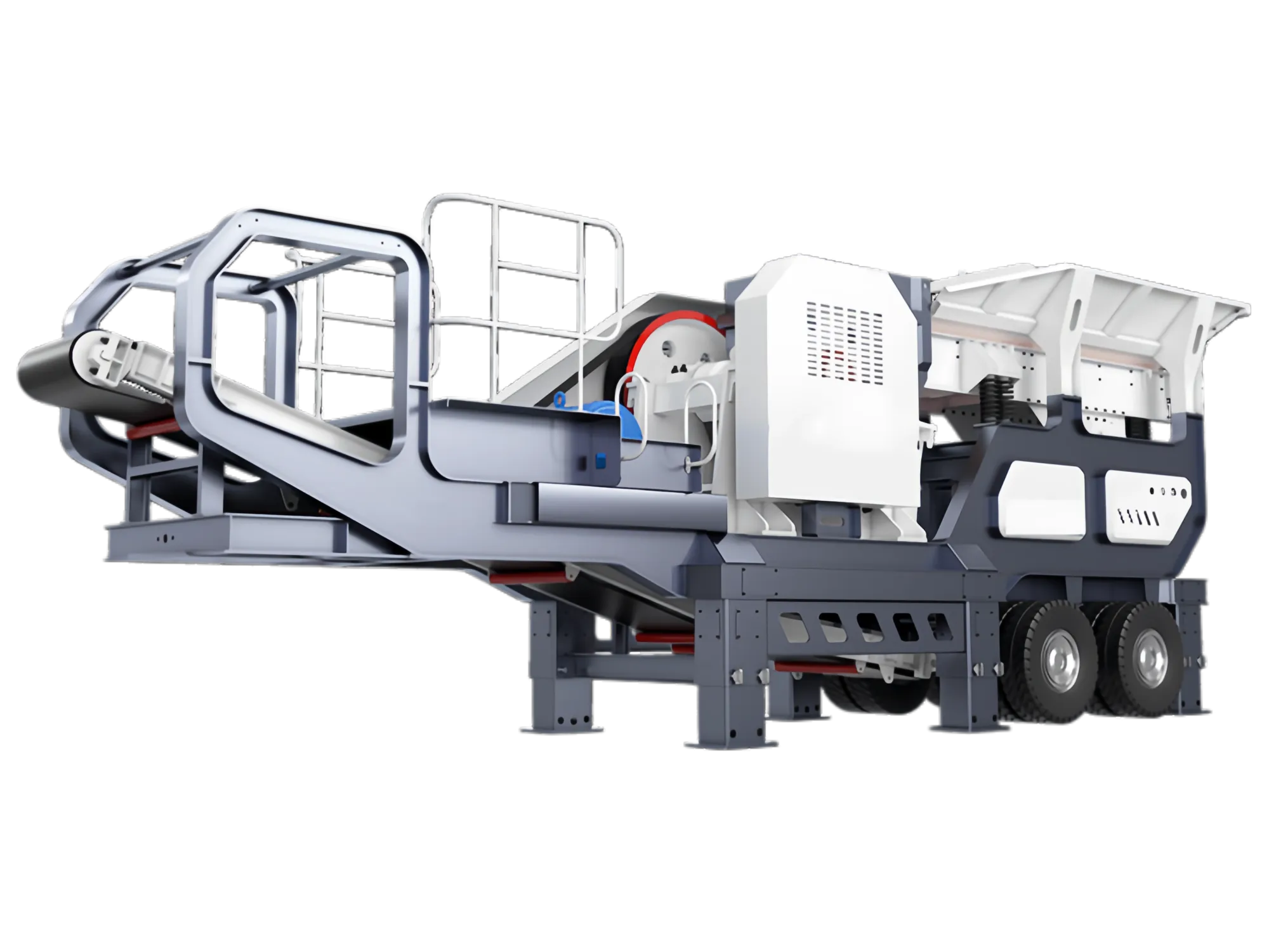

The PE950 mobile jaw crusher is a mid-to-large scale primary crushing solution, available in both wheel-mounted and crawler configurations. It combines the reliable performance of a PE950 jaw crusher with full mobility, eliminating the need for fixed foundations and reducing material haulage costs.
The PE950 mobile jaw crusher is a high-efficiency, mid-to-large scale primary crushing solution, designed for heavy-duty applications in quarries, mines, construction waste recycling, and infrastructure projects. Available in both wheel-mounted and crawler configurations, this unit combines the robust performance of a PE950 jaw crusher with full-site mobility.
By integrating feeding, crushing, and conveying into a single self-propelled platform, it eliminates the need for fixed foundations and reduces costly material haulage. The result is a flexible, cost-effective crushing system that can move directly to the raw material pile, significantly improving operational efficiency.
PE950 Jaw Crusher Host
The heart of the system, the PE950 jaw crusher features a deep, symmetrical crushing chamber. It is engineered for high reduction ratios and consistent output, capable of handling the hardest materials like granite, basalt, and iron ore.
Vibrating Feeder with Pre-Screening
The integrated feeder ensures uniform feeding to prevent overloading. Many models include a built-in grizzly screen to bypass fine material, increasing overall efficiency and reducing wear on the crusher.
Onboard Belt Conveyor
A high-strength discharge conveyor, which can be hydraulically raised for transport, efficiently removes crushed material to a stockpile or secondary processing stage.
Mobile Chassis (Wheel or Crawler)
Wheel-mounted: For easy highway transport by a tractor-trailer, ideal for moving between multiple fixed sites.
Crawler-mounted: Offers superior maneuverability on rough terrain, slopes, and confined spaces, allowing the unit to move freely within the quarry or job site.
Power & Control System
Diesel-Electric Hybrid: A powerful diesel engine drives a generator, providing electricity to the crusher and other components.
All-Electric: For use at sites with reliable power grids, offering lower operational costs.
The PLC control system allows for automatic start/stop, fault diagnostics, and remote monitoring.
High Mobility, No Civil Works: Eliminates the need for fixed plant construction. The entire unit can be set up in hours, ready for production.
Cost-Effective Operation: Reduces or eliminates material haulage costs by crushing directly at the source. Lowers overall project investment.
Proven Crushing Performance: The PE950 jaw crusher delivers reliable, high-capacity primary crushing with a feed opening of 950×1250 mm.
Flexible Configuration: Choose between wheel or crawler chassis, and various power options to match your specific project needs.
Easy Maintenance: Centralized lubrication points, hydraulic adjustment for the discharge gap, and quick-access service panels simplify routine maintenance.
Environmentally Friendly: Optional dust suppression systems and low-noise engine configurations help meet environmental regulations.
Item | Specification |
|---|---|
Model | PE950 Mobile Jaw Crusher |
Crusher Type | PE950×1250 Jaw Crusher |
Feed Opening Size | 950 × 1250 mm |
Maximum Feeding Size | ≤ 800 mm |
Capacity | 160–400 t/h |
Discharge Adjustment Range | 100–250 mm |
Power Mode | Diesel-Electric Hybrid / Full Electric |
Chassis Type | Wheel-Mounted / Crawler-Mounted |
Overall Weight | ~ 65–90 tons (depending on configuration) |
Feeding: Raw material is loaded into the hopper and fed uniformly into the jaw crusher by the vibrating feeder. Pre-screening removes fine material to optimize the process.
Crushing: Inside the PE950 jaw crusher, the movable jaw exerts force against the fixed jaw, compressing large rocks until they are small enough to pass through the discharge gap.
Conveying: Crushed material falls onto the onboard belt conveyor, which transports it to a stockpile or directly to the next stage of processing (e.g., secondary crushing or screening).
Mobility: The wheel or crawler chassis allows the entire unit to move to new positions as the working face advances, ensuring continuous, efficient operation.
Quarry & Mining: Primary crushing of hard rock, granite, basalt, limestone, and various ores.
Construction Waste Recycling: On-site crushing of concrete, bricks, and asphalt for reuse as recycled aggregates.
Infrastructure Projects: Mobile aggregate production for highways, railways, dams, and bridge construction.
Remote & Temporary Sites: Projects with limited infrastructure or requiring frequent relocation of the crushing plant.
The PE950 mobile jaw crusher is shipped as a complete assembled unit or partially disassembled for optimal loading. Key components are protected with anti-rust oil and waterproof wrapping. We offer:
Standard export packaging for sea freight.
Support for both containerized and bulk shipping.
Professional loading services and complete export documentation.
12-month warranty for the main unit.
24/7 online technical support and troubleshooting.
Comprehensive operator training manuals and video guides.
Fast supply of genuine spare parts.
Optional on-site installation and commissioning guidance by our engineers.
