TECHNICAL SPECIFICATION
Ref: PEV950-1250-EUROPEAN-JAW-CRUSHER
PEV

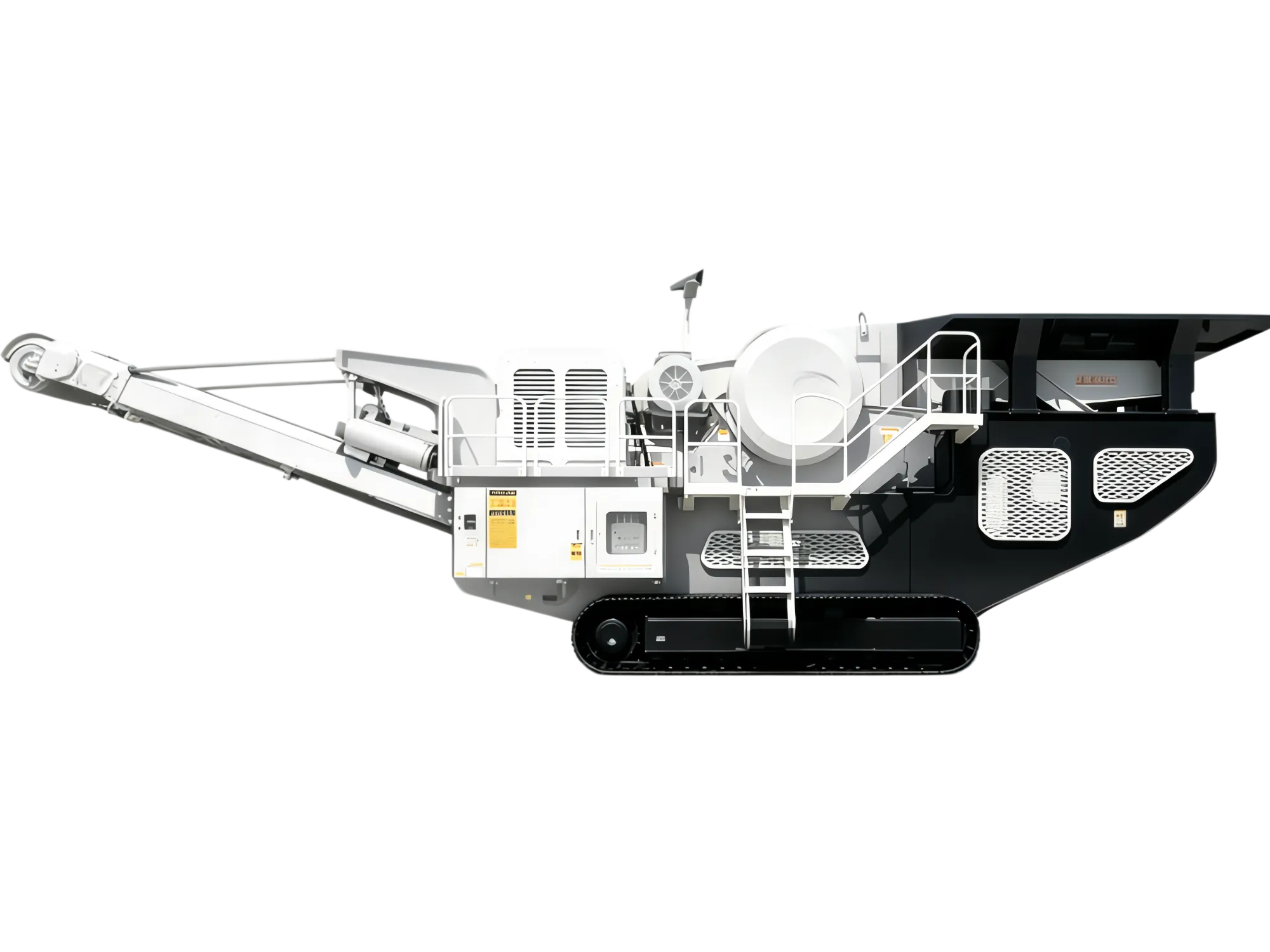

The PEV 950×1250 European jaw crusher is a professional heavy-duty primary crushing equipment. Optimized with deep crushing cavity and integrated welded structure, this jaw crusher features strong bearing capacity and stable operation. It can efficiently crush high-hardness materials like granite,
Model: PEV950×1250
Feed Opening Size: 950×1250 mm
Max Feeding Size: ≤750 mm
Discharge Opening Range: 100–200 mm
Capacity: 290–845 t/h
Motor Power: 160 kW
Main Shaft Speed: 220 r/min
Machine Weight: About 39.6 Ton
This European version jaw crusher adopts integrated heavy frame, high-strength eccentric shaft and heavy-duty bearing. The crushing cavity is deep V-shape, which avoids material blocking effectively.
Driven by motor and belt pulley, the eccentric shaft drives the movable jaw to swing periodically. Materials are squeezed, crushed and ground in the crushing cavity, then discharged from the bottom outlet.
Reinforced European type design, higher structural strength and longer service life.
Deep crushing cavity, large feeding capacity and high output efficiency.
Manganese steel jaw plate with excellent wear resistance.
Wedge-type discharge gap adjustment, simple and accurate.
Stable operation, low vibration and easy maintenance.
Mine ore crushing: iron ore, copper ore, limestone, granite, basalt, river stone.
Construction aggregate production for highway, railway and water conservancy project.
Construction waste recycling and solid waste crushing.
Model | Feed Opening | Capacity(t/h) | Power(kW) | Weight(Ton) |
|---|---|---|---|---|
PEV750×1060 | 750×1060 | 155–580 | 132 | 22.6 |
PEV950×1250 | 950×1250 | 290–845 | 160 | 39.6 |
PEV1200×1400 | 1200×1400 | 500–1000 | 220 | 58 |
