TECHNICAL SPECIFICATION
Ref: PF1214-IMPACT-CRUSHER

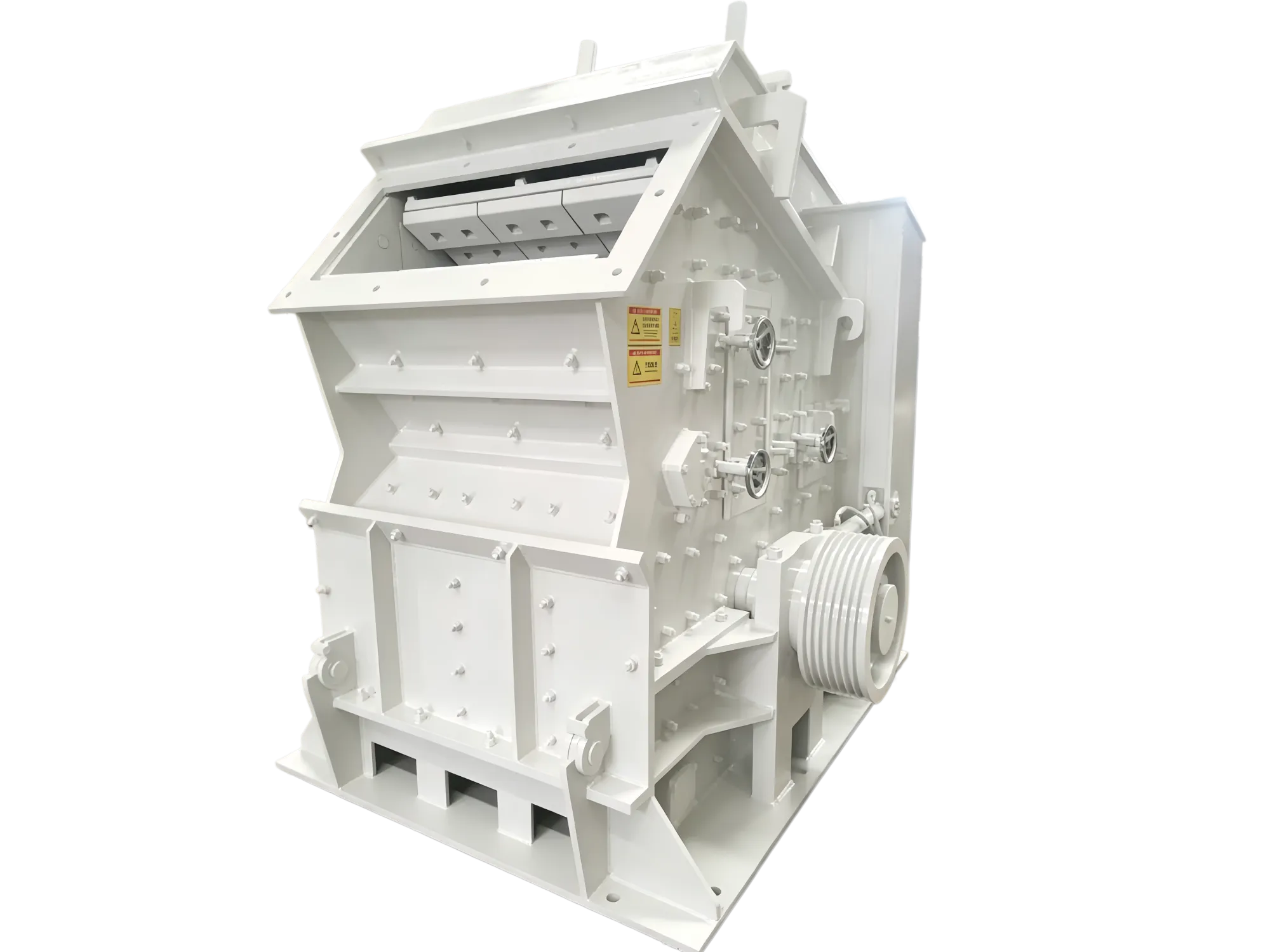

PF1214
PF1214 impact crusher is a medium-fine crushing machine with 1200×1400mm rotor. It handles limestone, granite, concrete waste and more (≤350MPa), delivering uniform cubic aggregates. Ideal for quarry, construction waste recycling and road building projects.
The PF1214 impact crusher is a versatile secondary and tertiary crushing machine, widely used in mining, construction aggregate production, road building, concrete recycling and metallurgy industries. With a rotor size of 1200×1400mm, it delivers a processing capacity of 100-180 tons per hour, making it ideal for medium to large-scale crushing projects.
High Crushing Efficiency: Advanced impact crushing technology ensures uniform cubic-shaped aggregates with low flakiness rate.
Adjustable Output Size: Hydraulic and mechanical adjustment systems allow easy control of final particle size, meeting diverse application requirements.
Wear-Resistant Design: High-chrome blow bars and impact plates extend service life, reducing maintenance costs.
Easy Maintenance: Quick access doors and hydraulic opening mechanisms simplify inspection and part replacement.
Wide Material Compatibility: Processes limestone, granite, basalt, concrete waste, coal and other materials with compressive strength ≤350MPa.
Construction Aggregate Production: Produces high-quality crushed stone for concrete, asphalt and road base materials.
Construction Waste Recycling: Crushes demolished concrete and bricks into reusable recycled aggregates.
Mining & Quarry Operations: Used as secondary crusher in stone and ore processing lines.
Infrastructure Projects: Supports highway, railway, bridge and water conservancy projects with reliable aggregate supply.
Rotor diameter: 1200mm
Rotor length: 1400mm
Feed opening size: 1000×1400mm
Max feed size: 350mm
Processing capacity: 100-180 tph
Motor power: 132-160kW (customizable)
Weight: ~22-26 tons
This PF1214 impact crusher is designed for both fixed and mobile crushing stations, offering stable performance, low operating costs and high return on investment for your crushing business.
Parameter | Specification |
|---|---|
Model | PF1214 Impact Crusher |
Rotor Diameter × Length | Φ1250 × 1400 mm |
Feed Opening Size | 1100 × 1430 mm |
Max Feed Size | ≤350 mm |
Output Particle Size | ≤50 mm (adjustable) |
Processing Capacity | 130–180 t/h (100–200 t/h adjustable) |
Motor Power | 132–160 kW |
Rotor Speed | 480–630 r/min |
Total Weight | ~22–26 tons (without motor) |
Overall Dimensions (L×W×H) | 2700 × 2450 × 2600 mm (standard) |
Compressive Strength of Materials | ≤350 MPa |
Applicable Materials | Limestone, granite, basalt, concrete waste, coal, etc. |
