TECHNICAL SPECIFICATION
Ref: PFW150-EUROPEAN-TYPE-IMPACT-CRUSHER

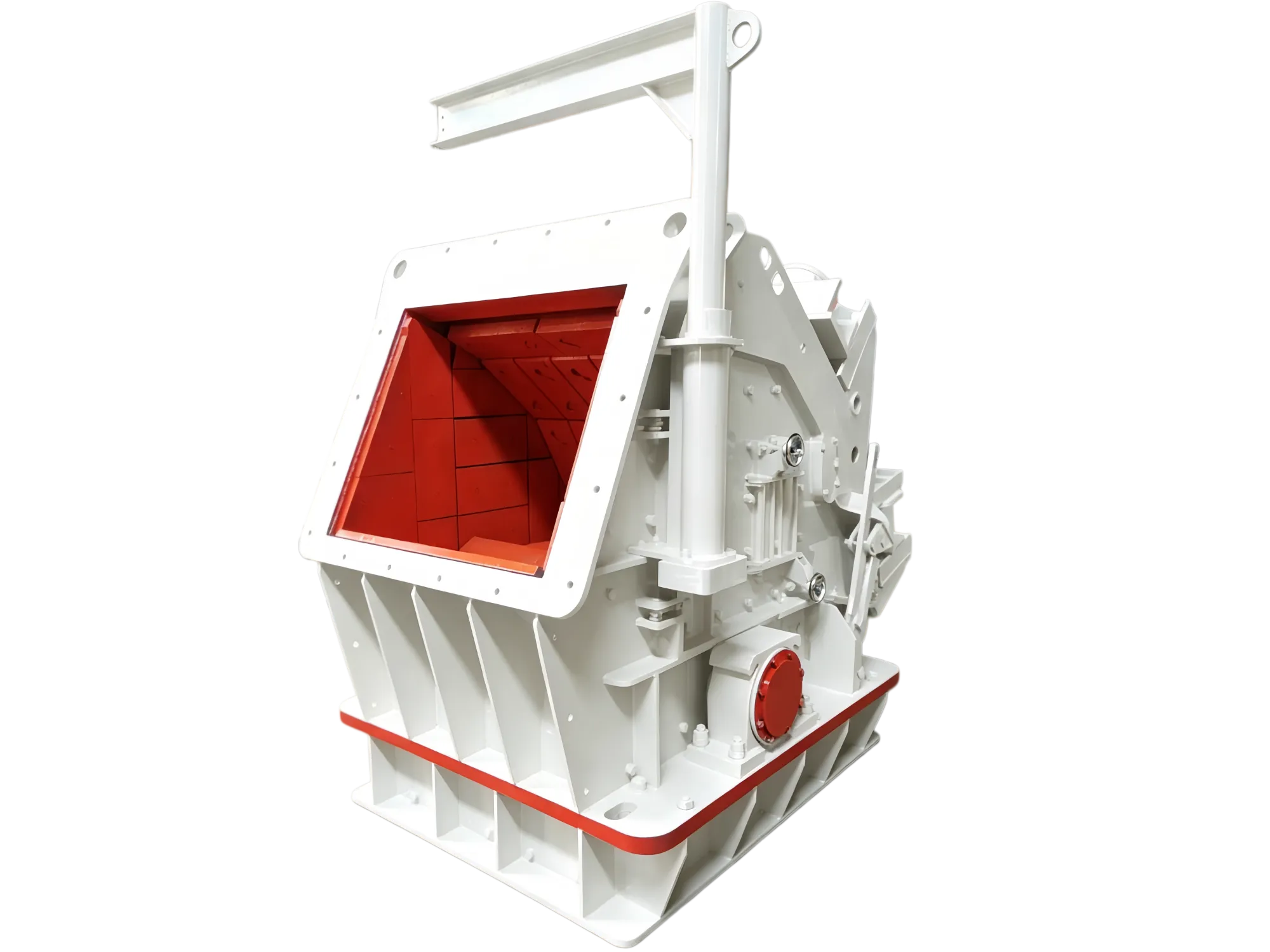

PFW150 European Type Impact Crusher
The PFW150 European type impact crusher is a high-performance medium and fine crushing machine, designed for processing limestone, granite, concrete waste and other materials with compressive strength ≤350MPa. With a 1300×1500mm rotor and 150-250 tph capacity, it produces high-quality cubic aggregat
Parameter | Specification |
|---|---|
Model | PFW150 European Type Impact Crusher |
Rotor Diameter × Length | Φ1300 × 1500 mm |
Feed Opening Size | 1250 × 1500 mm |
Max Feed Size | ≤450 mm |
Output Particle Size | 0–50 mm (adjustable) |
Processing Capacity | 150–250 t/h |
Motor Power | 160–200 kW |
Rotor Speed | 450–580 r/min |
Total Weight | ~28–32 tons (without motor) |
Overall Dimensions (L×W×H) | 3100 × 2700 × 2900 mm |
Compressive Strength of Materials | ≤350 MPa |
Applicable Materials | Limestone, granite, basalt, concrete waste, coal, etc. |
The PFW150 European type impact crusher is a secondary and tertiary crushing machine developed with European advanced technology, widely used in mining, construction aggregate production, road building, concrete recycling and metallurgy industries. It combines high crushing efficiency, low operating costs and easy maintenance, making it the preferred choice for medium and large-scale crushing projects.
European Standard Design: Optimized rotor and crushing cavity structure ensure high crushing efficiency and excellent cubic aggregate shape, meeting European construction aggregate quality standards.
Hydraulic Adjustment System: The gap between impact plates and blow bars can be easily adjusted via the hydraulic system, allowing quick control of final particle size to meet diverse application requirements.
Wear-Resistant Components: High-chrome alloy blow bars and impact plates offer long service life, reducing replacement frequency and maintenance costs.
Easy Maintenance: Hydraulic opening device provides quick access to internal parts, simplifying inspection, blow bar replacement and cleaning operations.
Automatic Safety Protection: Built-in overload protection system prevents equipment damage from uncrushable materials, ensuring stable and safe operation.
Wide Material Compatibility: Processes limestone, granite, basalt, concrete waste, coal, slag and other materials with compressive strength ≤350MPa.
Construction Aggregate Production: Produces high-quality crushed stone for concrete, asphalt and road base materials, with low flakiness rate and good gradation.
Construction Waste Recycling: Crushes demolished concrete, bricks and stones into reusable recycled aggregates, supporting urban solid waste resource utilization.
Mining & Quarry Operations: Used as secondary or tertiary crusher in stone and ore processing lines, suitable for both fixed and mobile crushing stations.
Infrastructure Projects: Supports highway, railway, bridge and water conservancy projects with reliable aggregate supply, adapting to various working conditions.
Rotor diameter × length: Φ1300 × 1500 mm
Feed opening size: 1250 × 1500 mm
Max feed size: ≤450 mm
Output particle size: 0–50 mm (adjustable)
Processing capacity: 150–250 t/h
Motor power: 160–200 kW
Rotor speed: 450–580 r/min
Total weight: ~28–32 tons (without motor)
Overall dimensions (L×W×H): 3100 × 2700 × 2900 mm
This PFW150 European type impact crusher is designed for long-term stable operation, offering high return on investment and low maintenance costs for your crushing business.
