TECHNICAL SPECIFICATION
Ref: Φ-900-1800-BALL-MILL
Φ 900*1800 Ball mill
900×1800 ball mill supports wet and dry grinding for gold, copper, iron ore, limestone and quartz materials. It adopts thickened cylinder body and high wear-resistant lining plate, ensuring stable operation, low noise and energy-saving performance. Compact and reasonable structure brings easy instal

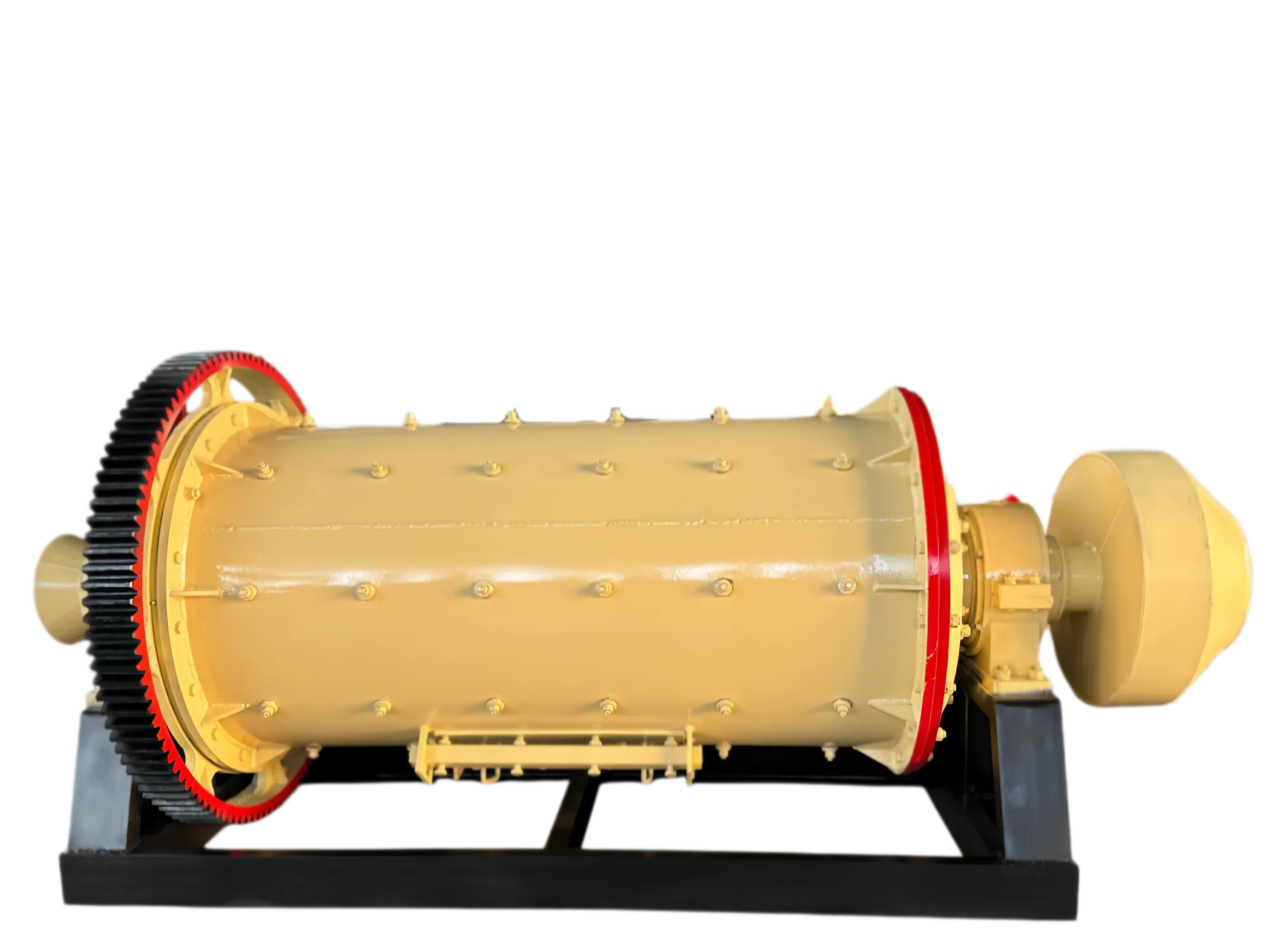

900x1800 ball mill
The 900×1800 ball mill is a horizontal rotary grinding machine, widely applied in small and medium mining, metallurgy, chemical, building materials and quarry industries. It is suitable for grinding gold ore, copper ore, iron ore, limestone, quartz stone and other mineral materials for both wet and dry grinding processes.
Adopting thickened cylinder body, high wear-resistant lining plates and high-quality steel balls, the machine features stable operation, low noise, energy saving and long service life. Compact structure, easy installation, simple maintenance and adjustable discharging fineness make it an ideal grinding equipment for small mineral processing plants. It can be matched with feeder, classifier and flotation machine to form a complete mineral processing production line.
表格
Item | Specification |
|---|---|
Cylinder Diameter | 900mm |
Cylinder Length | 1800mm |
Cylinder Volume | 1.145m³ |
Ball Loading Capacity | 0.45t |
Feeding Size | ≤25mm |
Discharging Size | 0.074–0.4mm |
Production Capacity | 0.65–2.0t/h |
Motor Power | 18.5kw |
Overall Dimension | 3100×1600×2100mm |
Weight | 3.8t |
