TECHNICAL SPECIFICATION
Ref: DIESELBETRIEBENER-BACKENBRECHER-PE-220-350

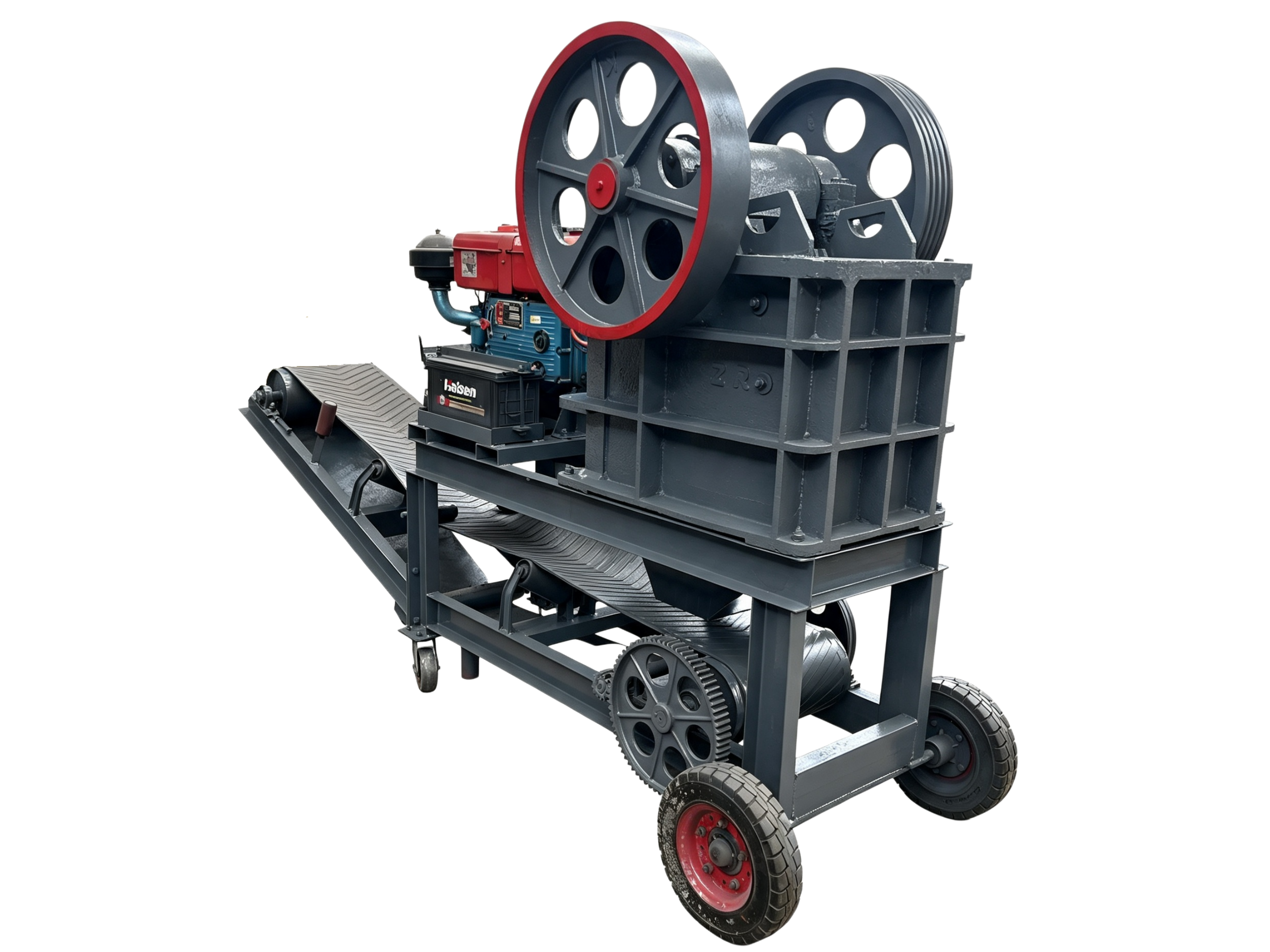

PE 220*350
This 220×350 diesel jaw crusher reaches 15 tons hourly output. It adopts wheeled simple mobile chassis and matches a 3-meter discharge conveyor. Driven by diesel engine, free from power supply limits, suitable for small mining, road construction and scattered stone crushing projects.
The 220×350 wheeled diesel jaw crusher is a compact portable primary crushing unit designed for small-scale stone processing. Equipped with reliable diesel power pack, it completely breaks away from dependence on grid electricity. The whole machine installs the PE220×350 jaw crushing host and supporting 3-meter discharge belt conveyor onto a lightweight wheeled mobile frame.
The simple wheeled structure allows easy towing and transfer between working sites. No fixed foundation pouring is required, and the machine can start operation rapidly after positioning. With steady hourly capacity of 15 tons, it delivers stable coarse crushing performance for all kinds of medium-hard rocks and ores. It is highly favored by small contractors, individual miners and rural infrastructure engineering teams, especially popular in remote areas lacking stable power supply.
This diesel mobile jaw crusher has wide material adaptability for medium-hard raw materials:
Natural stone: Limestone, bluestone, river pebble, basalt, granite fragment
Mineral ores: Gold ore, iron ore, fluorite ore, manganese ore, coal rock
Recycled materials: Construction waste, broken concrete, waste bricks, stone residue
Other bulk materials: Gypsum, shale and other medium-hard industrial raw materials
表格
Item | Detailed Specification |
|---|---|
Product Model | 220×350 Diesel Mobile Jaw Crusher |
Driving Type | Single Cylinder Diesel Engine |
Hourly Output | 15 Tons Per Hour |
Supporting Equipment | 3 Meters Discharge Belt Conveyor |
Moving Structure | Lightweight Wheeled Simple Mobile Chassis |
Max Feeding Size | 180mm |
Adjustable Discharge Size | 20–60mm |
Working Feature | Off-grid operation, automatic material discharging |
Powered by matched diesel engine, the machine can work normally in mountain areas, wilderness mines and remote construction sites without commercial power. It solves the biggest operation obstacle for off-site small crushing projects.
Light integrated wheeled chassis structure, convenient to tow by tractor or small vehicle. Suitable for frequent site shifting. Complex installation and foundation construction are eliminated to save preparation time and investment cost.
Built-in 3-meter belt conveyor automatically transports finished crushed materials to stacking area. Greatly reduces manual material handling, realizes continuous crushing circulation and improves overall work efficiency.
PE220×350 standard jaw crushing host owns optimized crushing cavity. Stable 15 tons hourly throughput ensures continuous production. Adjustable discharge gap supports multiple finished aggregate specifications for different engineering standards.
Reasonable mechanical layout with fewer vulnerable spare parts. Jaw plates and liners adopt wear-resistant manganese steel. Hammer parts are easy to disassemble and replace. Daily inspection and maintenance can be finished quickly to lower long-term operation expenses.
Compact overall dimension, it can work in narrow construction zones where large crushing equipment cannot access. Perfect for small quarries, rural road construction, mineral sample crushing and construction waste recycling projects.
Bulk raw materials enter the crushing cavity from the feeding inlet. Driven by diesel engine, the movable jaw plate makes reciprocating movement to squeeze and impact stones. Materials are crushed gradually inside the cavity. Once particle size meets the setting standard, qualified aggregates fall onto the 3m belt conveyor and be transported outward. Oversized stones stay inside for repeated crushing.
Core wear-resistant parts: Fixed jaw plate, movable jaw plate, side liner, toggle plate
Transmission components: Eccentric shaft, bearings, pulleys, tension springs, V-belts
Conveyor accessories: Roller, conveyor belt, baffle plate
Auxiliary supplies: Special maintenance tools, English operation & maintenance manual
Standard configuration lead time: 10–15 working days after deposit confirmation
Spare parts delivery cycle: 3–7 working days
Every machine will undergo full running inspection before shipment to guarantee stable performance.
Main machine: Fixed with steel support, wrapped by waterproof plastic film
Small spare parts: Packed in export fumigated wooden cases for anti-collision and moisture resistance
Support LCL and FCL sea transportation to all global ports
Complete set of export customs clearance documents will be provided
This small diesel mobile jaw crusher sells well in Africa, Southeast Asia and South America:
Small gold mining sites in Ghana, Tanzania: Crush raw gold ore without local power supply
Rural road projects in Myanmar, Philippines: Process limestone and rock for road base aggregates
Remote infrastructure construction in Zimbabwe, Guinea: On-site crushing of construction waste
Small gravel yards and material processing workshops for medium-hard stone coarse crushing
All equipment passes strict factory testing before delivery. Standard export waterproof packaging prevents damage during long-distance ocean transportation. We provide English operation manuals, remote online technical guidance, installation debugging support and long-term supply of spare parts for global overseas customers.
