Jaw Crusher Selection Guide: PE vs PEX, Simple vs Compound Pendulum for Optimal Crushing
Choosing the right jaw crusher for your mining or quarry operation is critical to achieving efficient crushing, consistent product quality, and low operating costs. With various types and configurations available—such as PE and PEX jaw crushers, simple and compound pendulum designs—understanding how each option affects performance is essential. This guide breaks down the key differences and selection factors to help you make an informed decision. At the end, we invite you to contact our experts for a customized solution tailored to your specific material and capacity needs.
Understanding Jaw Crusher Types: PE vs PEX
Jaw crushers are commonly classified by their application stage and crushing mechanism. The two main series are PE (Primary Crushing) and PEX (Secondary/Fine Crushing).

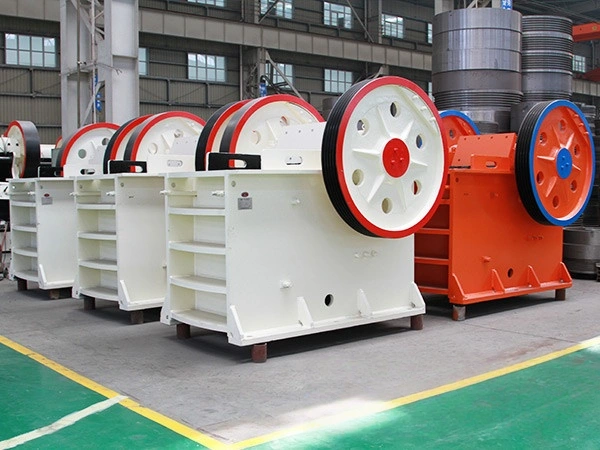

PE Jaw Crusher
PE jaw crushers are designed for primary crushing of large, abrasive materials like granite, basalt, and iron ore. They feature a deep crushing chamber and a high reduction ratio, typically handling feed sizes up to 1,200 mm. PE models are robust and widely used in mining and aggregate industries. Their key advantages include high throughput and reliable performance under heavy loads.
PEX Jaw Crusher
PEX jaw crushers are optimized for secondary or fine crushing. They have a narrower discharge opening and a higher frequency of jaw movement, producing more uniform product sizes. PEX models are often used after a primary crusher to reduce material for further processing. While they can handle smaller feed sizes (usually below 350 mm), they excel in producing fine aggregates or for applications requiring a controlled particle shape.
Simple Pendulum vs Compound Pendulum Jaw Crushers
Beyond the PE/PEX classification, jaw crushers differ in their mechanical motion mechanism: simple pendulum (single toggle) and compound pendulum (double toggle). Each affects crushing efficiency, wear patterns, and maintenance.
Simple Pendulum Jaw Crusher
In a simple pendulum (single toggle) crusher, the swing jaw moves in an arc around a single pivot point. This design provides a simpler structure, lower cost, and easier maintenance. However, the crushing stroke is uniform across the chamber, which can lead to less efficient crushing at the discharge zone. Simple pendulum crushers are often preferred for smaller operations or when material hardness is moderate.
Compound Pendulum Jaw Crusher
Compound pendulum (double toggle) crushers use two toggle plates to create a more complex jaw motion. The swing jaw moves both vertically and horizontally, providing a higher crushing ratio and more uniform product size. This design is more efficient for hard, abrasive materials but requires more maintenance and higher initial investment. Compound pendulum crushers are typical in large-scale mining operations where productivity is paramount.
Key Factors in Jaw Crusher Selection
Selecting the right jaw crusher involves evaluating several technical parameters. Here are critical considerations:
Discharge Opening Adjustment: The ability to easily adjust the discharge opening affects product size and crusher performance. Hydraulic adjustment systems allow quick changes without downtime, while mechanical shim systems require manual effort. For operations requiring frequent size changes, hydraulic jaw crushers offer significant advantages.
Material Hardness and Abrasiveness: Harder materials demand compound pendulum designs and wear-resistant liners. For less abrasive feeds, simple pendulum types may suffice.
Feed Size and Capacity: Large feed sizes require a PE jaw crusher with a deep chamber. Capacity calculations should account for bulk density, moisture, and desired product size.
Power and Energy Efficiency: Compound pendulum crushers generally consume more power per ton but offer higher reduction. Matching motor power to material conditions avoids overloading.
Maintenance and Uptime: Simple pendulum designs have fewer moving parts, reducing maintenance. Hydraulic systems simplify toggle plate replacement and discharge setting.
Hydraulic Jaw Crusher: A Modern Solution
Hydraulic jaw crushers incorporate hydraulic cylinders for discharge adjustment, tramp release, and sometimes even jaw motion. This technology allows for remote control and automation, improving safety and reducing downtime. Hydraulic models are especially beneficial in large mines where consistent product quality and quick adjustments are required. However, they come with higher upfront costs and require skilled maintenance.
Why Customization Matters
No two crushing applications are identical. Factors like local material properties, environmental conditions, plant layout, and budget constraints all influence the optimal crusher choice. A standard off-the-shelf machine may not yield the best return on investment. Customization can include:
Modified crushing chamber geometry for specific feed gradation
Adjustable eccentric speed to balance throughput and product fineness
Special wear parts for abrasive or corrosive materials
Integration with existing conveyors, feeders, and screens
Automation packages for real-time monitoring and adjustment
By working with experienced engineers, you can tailor the jaw crusher to your exact needs—ensuring maximum productivity and minimal waste. Avoid the common mistake of buying a machine that is oversized or undersized; the right fit improves both performance and longevity.
Get Your Custom Jaw Crusher Solution
Selecting between PE and PEX, simple and compound pendulum, and deciding on discharge adjustment methods can be complex. Our team of crushing specialists can analyze your material, desired output, and site conditions to recommend the ideal jaw crusher configuration. We help you balance cost, efficiency, and reliability—without overselling unnecessary features.
Contact us today for a free consultation and custom quotation. Let us design a jaw crusher solution that works for your operation.
