Mobile Jaw Crusher: The Core of Efficient Mining Crushing Operations
In the demanding world of mining and aggregate processing, the jaw crusher remains the undisputed workhorse for primary crushing. Whether you are extracting gold in West Africa, iron ore in Brazil, or limestone in the Middle East, a robust and reliable mobile jaw crusher can dramatically improve your operational efficiency, reduce haulage costs, and increase overall throughput. This article explores the critical role of the jaw crusher in mining, its working principles, key advantages, and how it integrates into complete beneficiation plants.
⚙️ The Core Role of Jaw Crushers in Mining Comminution
Communition—the process of reducing solid ore from its mined size to a fine powder suitable for metallurgical extraction—is the most energy-intensive step in any mining operation. At the heart of this process lies the primary jaw crusher, responsible for the first stage of size reduction. In open-pit and underground mines alike, run-of-mine (ROM) material often contains boulders up to 1.5 meters in diameter. A heavy-duty jaw crusher accepts these oversized rocks and crushes them down to a manageable 150–300 mm, preparing them for secondary cone crushers or semi-autogenous grinding (SAG) mills.

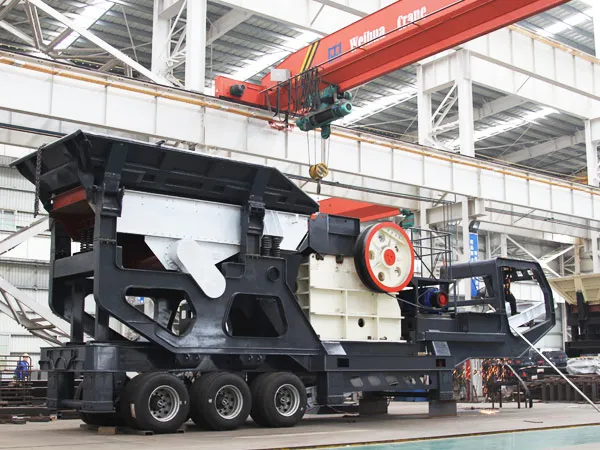

For remote mining sites in Africa and South America, a mobile jaw crusher offers unparalleled flexibility. Instead of transporting massive ROM to a fixed crushing station, you can relocate the crusher closer to the working face. This significantly reduces trucking distances, fuel consumption, and associated carbon emissions—a win for both profitability and environmental compliance.
🔩 How Does a Jaw Crusher Work?
The operation of a jaw crusher is elegantly simple yet brutally effective. It consists of two vertical jaw plates—one fixed and the other moving back and forth relative to it by a cam or pitman mechanism. The material enters the top of the chamber and is crushed between the two plates as the moving jaw exerts compressive force. When the crushed pieces become small enough, they fall through the bottom discharge opening, known as the closed-side setting (CSS).
Modern hydraulic-assisted jaw crushers allow quick CSS adjustments, even while running, ensuring consistent product size. Double-toggle designs are often favored for harder ores due to their mechanical advantage, while single-toggle units dominate the mobile market because of their lighter weight and simpler structure.
⛏️ Optimized for Tough Mining Applications
Not all ores are created equal. Gold, iron, copper, and granite each present unique crushing challenges. The jaw crusher tackles them all with the right jaw plate metallurgy and configuration.
Gold Mining: In Ghana and Mali, for example, quartz-veined gold ores are highly abrasive. Manganese steel jaw plates with deep tooth profiles provide extended wear life and excellent nip angles, preventing material from slipping and accelerating wear. A mobile jaw crusher can follow the stope progression, minimizing truck cycle times.
Iron Ore Processing: Brazilian hematite mines demand high-capacity, continuous operation. A jaw crusher with reinforced frame and extra-heavy eccentric shaft can handle the dense, tough ore without fatigue. Liner profiles are often customized for a corrugated surface that grips the material effectively.
Quarry & Aggregate: In the Middle East, limestone and gabbro are standard feeds. Here, the emphasis is on high reduction ratios and cubicity—although the jaw crusher's primary role is not shape. The right jaw crusher with a well-matched secondary cone crusher can produce a significant amount of high-quality aggregate directly from blast rock.
🛡️ Wear-Resistant Jaw Plates: The Unsung Heroes
For any mining operation, downtime is the enemy. The jaw plates are the main wear items, and their material and design directly impact the cost per tonne crushed. Austenitic manganese steel (Hadfield steel) is the industry standard, with 12–14% manganese content. This work-hardening alloy becomes progressively harder under impact, making it ideal for crushing tough silicate ores. For extremely abrasive materials, chrome-moly alloy inserts or ceramic composite overlays can double the service life.
Quick-change jaw plate designs also reduce liner swap-out time. Many modern mobile jaw crushers feature boltless clamping systems that allow a two-person team to replace a set of jaw plates in under two hours.
🏭 Integrating the Jaw Crusher into a Complete Beneficiation Line
A jaw crusher rarely works alone. It is the first link in a multi-stage processing chain that ultimately yields saleable concentrate or fine product. The following is a typical mobile jaw crusher-centric circuit:
Feeding: A heavy-duty vibrating grizzly feeder removes undersized fines before the crusher, preventing packing and increasing capacity.
Primary Crushing: The jaw crusher reduces ROM to a conveyable size (e.g., < 200 mm).
Scalping & Secondary Crushing: A vibrating screen separates out fines; oversize goes to a cone crusher.
Tertiary Crushing & Screening: For finer aggregate or mill feed, a vertical shaft impactor (VSI) or high-pressure grinding rolls (HPGR) may follow.
Grinding: In gold and iron processing, ball mills or SAG mills further reduce the crushed ore to liberation size for flotation or magnetic separation.
When designing a full production line, selecting a mobile jaw crusher that can be seamlessly integrated with downstream equipment is crucial. Look for features like on-board conveyors, pre-screening modules, and remote monitoring capabilities that facilitate plant-wide automation.
📈 Maximizing Uptime and Throughput
To keep your jaw crusher running at peak performance, consider these best practices:
Regular Nip Angle Checks: A choked feed is essential for inter-particle crushing and higher reduction. Maintain proper feed level.
Monitor CSS: As jaw plates wear, the CSS widens, causing oversized product. Use automated control systems to compensate.
Lubrication Management: Automatic greasing systems ensure bearings are always protected from dust ingress—a common failure point in dusty mining environments.
Wear Part Inspection: Schedule routine inspections and rotate or flip jaw plates when they reach 50% wear to optimize utilization.
🌍 Regional Considerations: Why Mobile Jaw Crushers Excel in Emerging Mining Hubs

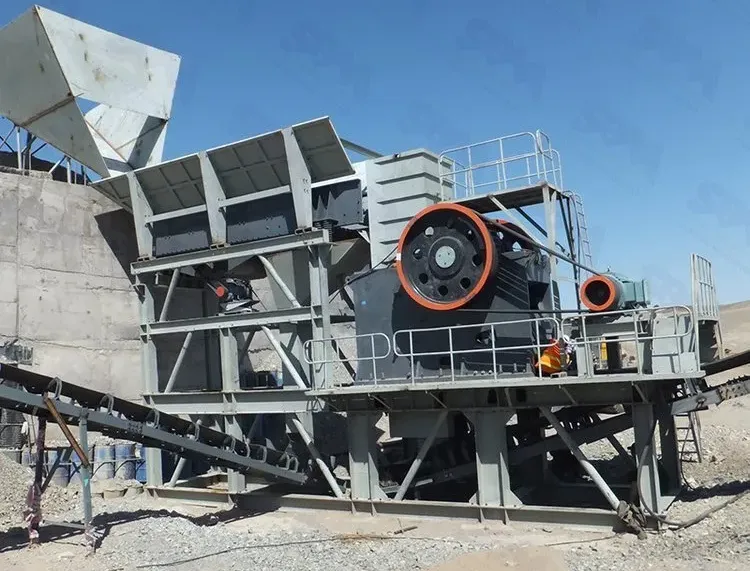

Mining projects in Africa (e.g., the Witwatersrand Basin in South Africa, the Birimian Greenstone Belt in West Africa), South America (the Andes copper belt, the Carajás iron ore province in Brazil), and the Middle East (Oman, Saudi Arabia) often face infrastructural challenges. A track-mounted or wheel-mounted mobile jaw crusher can be transported on standard flatbed trucks, set up in a matter of hours, and doesn’t require extensive concrete foundations. This agility reduces initial capital expenditure and allows companies to start production sooner.
For gold prospectors and small-to-medium miners, a compact mobile jaw crusher paired with a ball mill forms a simple yet effective gold extraction plant. The crusher handles the coarse breakage, and the ball mill grinds the ore to the fine sand needed for cyanide leaching or gravity concentration.
🤝 Partnering for Success: Equipment Selection Without the Hard Sell
When evaluating a jaw crusher for your operation, look beyond the initial purchase price. Consider total lifecycle cost: energy efficiency, wear part longevity, local availability of spare parts, and after-sales support. A reputable manufacturer will provide detailed throughput simulations, sample crushing tests, and tailored liner recommendations based on your specific mineralogy.
We understand that every mine is unique. From alluvial gold in Sudan to magnetite iron in Chile, your choice of a mobile jaw crusher must match your ore characteristics, production targets, and logistical constraints. That’s why it pays to consult with application specialists who can design a custom crushing solution—not just a machine, but a complete processing train.
Looking to improve your primary crushing stage? Reach out to our engineering team today for a complimentary technical assessment of your site’s needs. Let’s discuss how the right jaw crusher can set the foundation for decades of reliable production.
