TECHNICAL SPECIFICATION
Ref: MOBILE-HAMMER-CRUSHER-FOR-ORE-CRUSHING
PC300*500

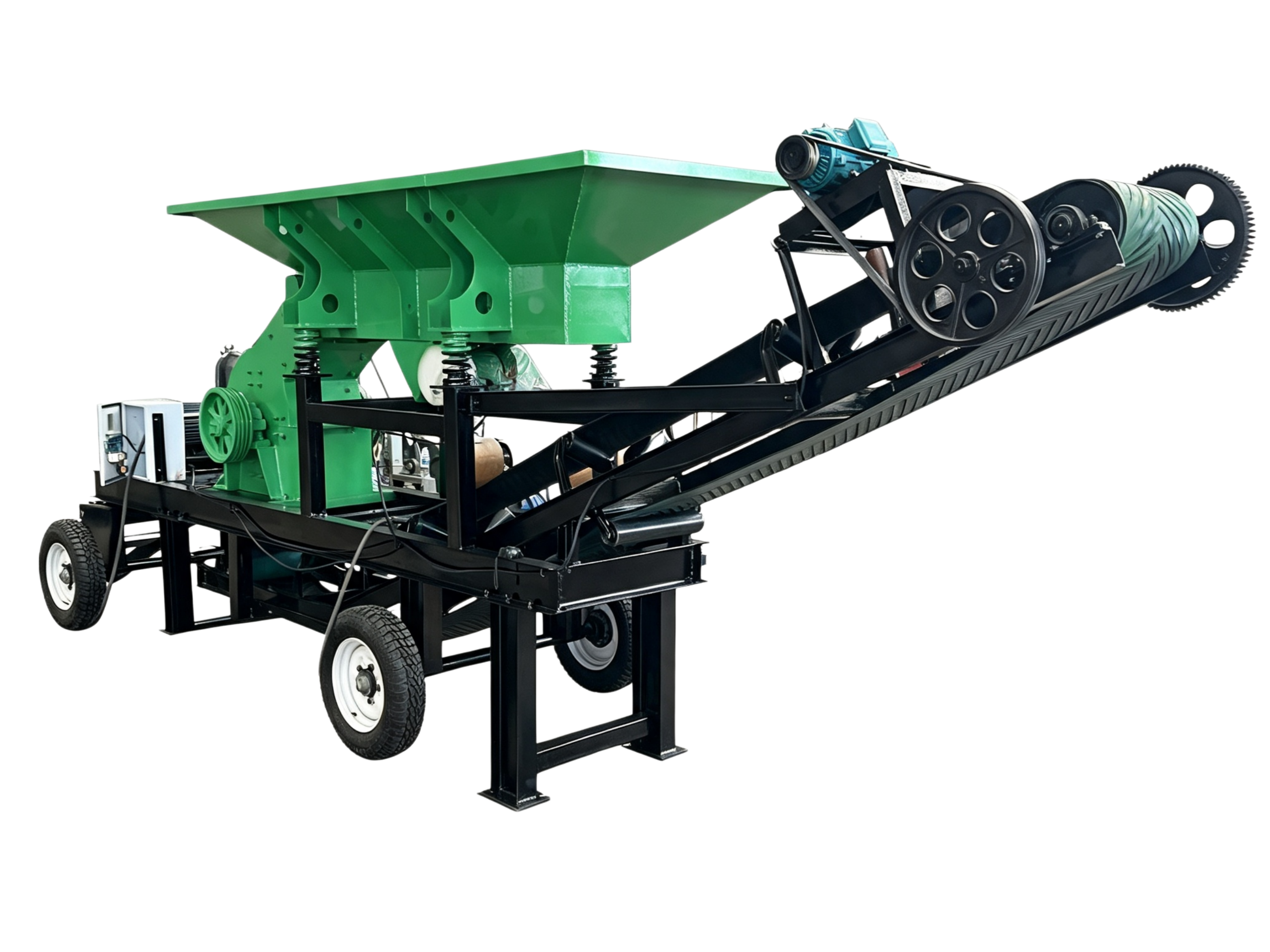

This 10T/H mobile hammer crusher is fitted with a 15KW motor. The wheeled all-in-one unit includes feeding hopper and outfeed conveyor. Compact and easy to transport, it crushes stone, ore and building waste for small mining and construction projects.
This wheeled mobile hammer crusher is a compact integrated crushing plant specially developed for small-scale production demands. Equipped with reliable 15KW driving motor, it delivers steady hourly output of 10 tons. The whole machine combines feeding hopper, hammer crushing host and discharge belt conveyor on one mobile chassis.
Different from stationary crushing machines, this unit adopts wheeled traction design for convenient relocation between working sites. It needs no complicated foundation installation and can start operation quickly after arrival. Widely chosen for small quarry work, ore sample crushing, construction waste recycling and rural road aggregate processing, it offers cost-effective crushing solutions for individual investors and small contractors.
The mobile hammer crusher handles medium soft and medium hard materials efficiently:
Natural stone: Limestone, bluestone, river pebble, shale
Mineral resources: Small gold ore, coal, gangue, fluorite ore
Recyclable materials: Construction waste, broken concrete, brick residue
Other materials: Gypsum, lime, various low-to-medium hardness bulk materials
表格
Item | Specification |
|---|---|
Product Name | Wheeled Mobile Hammer Crusher |
Installed Power | 15KW Electric Motor |
Hourly Capacity | 10 Tons Per Hour |
Structure Layout | Feeding Hopper + Hammer Mill + Discharge Conveyor |
Moving Mode | 4-wheel traction mobile chassis |
Max feeding size | ≤120mm |
Adjustable finished size | 5–30mm |
Operation Type | Continuous automatic feeding, crushing and discharging |
Complete set mounted on heavy-duty wheeled frame. Users can tow and transfer the machine freely. Suitable for scattered construction sites, small mines and temporary projects with frequent position changes. No civil foundation required, shorten preparation time greatly.
Matched 15KW high-efficiency copper motor provides sufficient crushing power. Optimized hammer and screen assembly prevent blockage, ensuring stable 10 tons hourly throughput. Suitable for continuous daily small-batch crushing tasks.
Built-in feeding hopper and inclined discharge belt conveyor realize automatic material circulation. Greatly cut manual labor for material loading and collecting, improve overall working efficiency and reduce labor costs.
Users can replace internal screen plates to change output granularity. It can produce different sizes of gravel, sand and crushed aggregate to meet demands of building, road paving and mineral processing.
Clear mechanical layout, easy access for inspection. Hammer heads, sieve plates are standard wearable spare parts and simple to replace. Daily lubrication and cleaning work can be finished rapidly to lower downtime.
Compact overall dimension, easy to store when idle. It can work in narrow sites where large crushing equipment cannot enter, with strong site adaptability.
Raw materials are loaded into the top feeding hopper and enter the crushing chamber. Driven by the 15KW motor, high-speed rotating hammer heads strike, impact and grind materials into small particles. Qualified fine materials fall through the screen mesh onto the belt conveyor and are transported outward. Oversized materials stay inside for repeated hammer crushing until reaching required size.
Core wear components: Hammer head, sieve plate, lining plate
Transmission parts: V-belts, bearings, pulleys
Supporting parts: Conveyor rollers, hopper baffle, shock absorption springs
Auxiliary supplies: Maintenance toolkit, English operation & maintenance manual
Standard unit lead time: 10–15 working days after deposit confirmation
Spare parts lead time: 3–7 working days
We strictly run factory running tests before shipment to guarantee all functions work normally.
Main machine: Fixed on steel frame, covered with waterproof plastic film
Small spare parts: Packed into export fumigated wooden cases
Support full container and LCL sea transportation to all global ports
Complete set of export documents will be provided for smooth customs clearance
This small mobile hammer crusher has been exported to Africa, Southeast Asia and Latin America:
Small gold mining sites in Tanzania, Ghana: Crush raw gold ore for further mineral separation
Rural road construction in Philippines, Myanmar: Process limestone and rock to make road aggregate
Construction waste recycling projects: Crush waste bricks and concrete for recycled building material
Small brick factories and lime processing workshops for raw material pre-crushing
All machines pass strict factory running test before delivery. Standard export waterproof packaging avoids damage during long-distance ocean transit. We supply English operation manuals, remote online technical guidance, installation instruction and long-term spare parts supply for global buyers.
